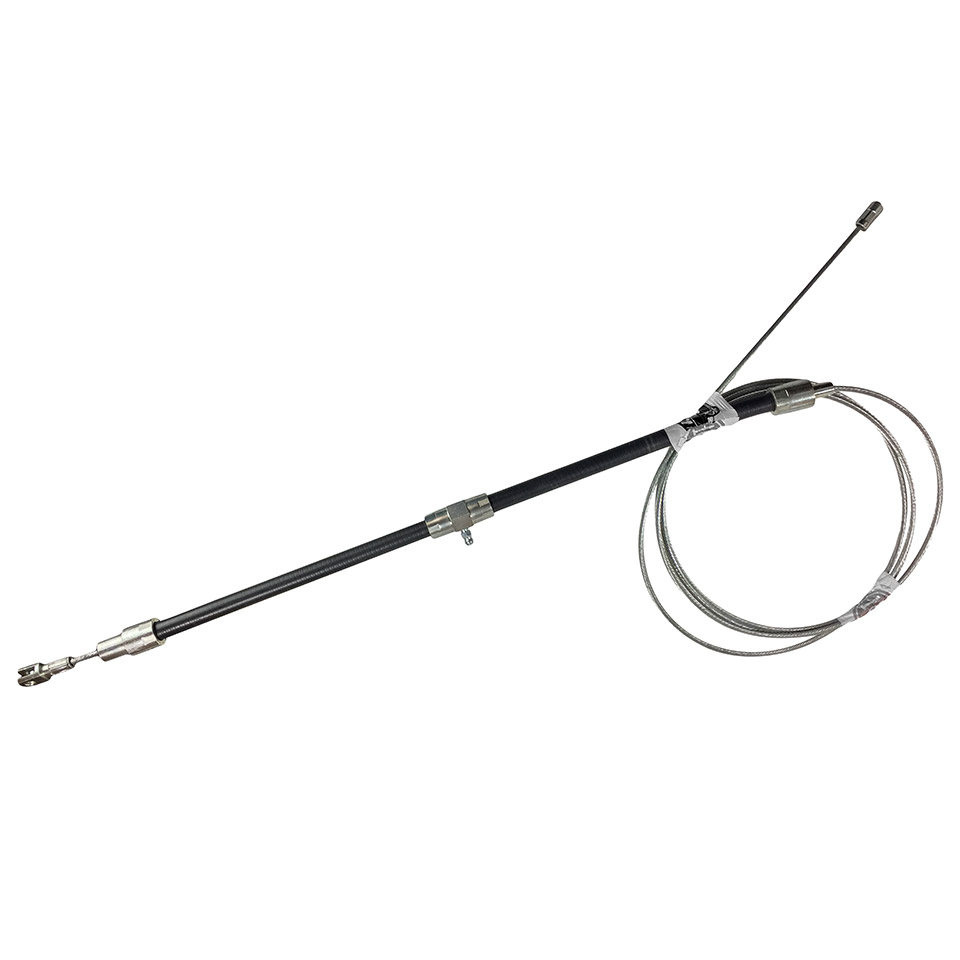

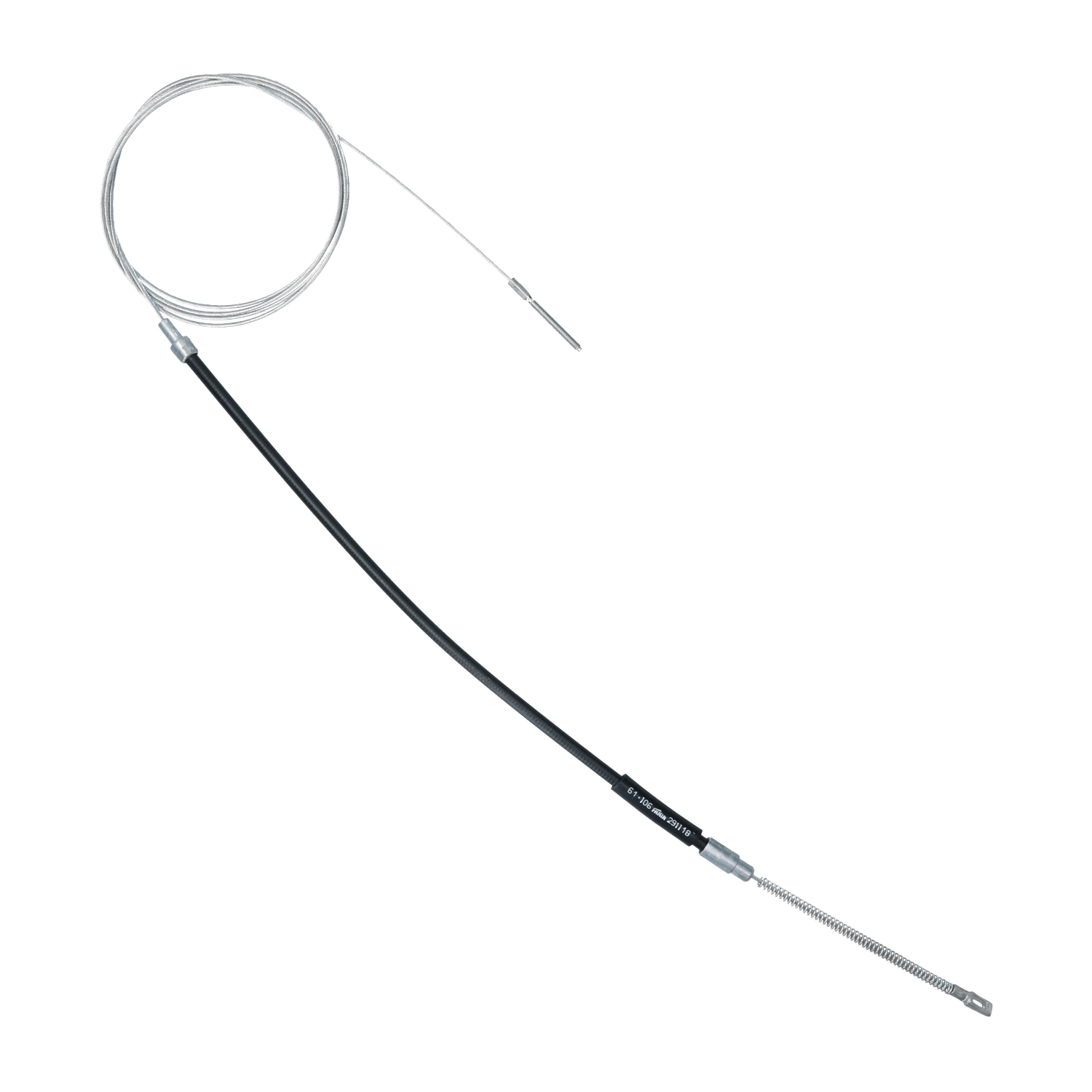

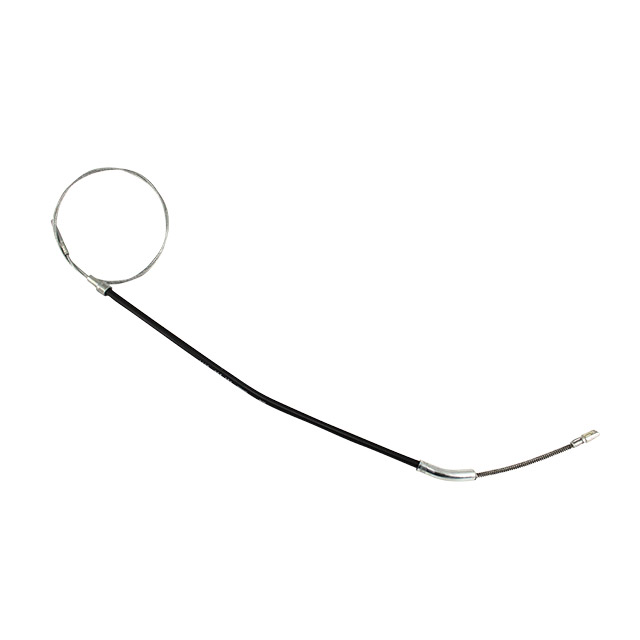

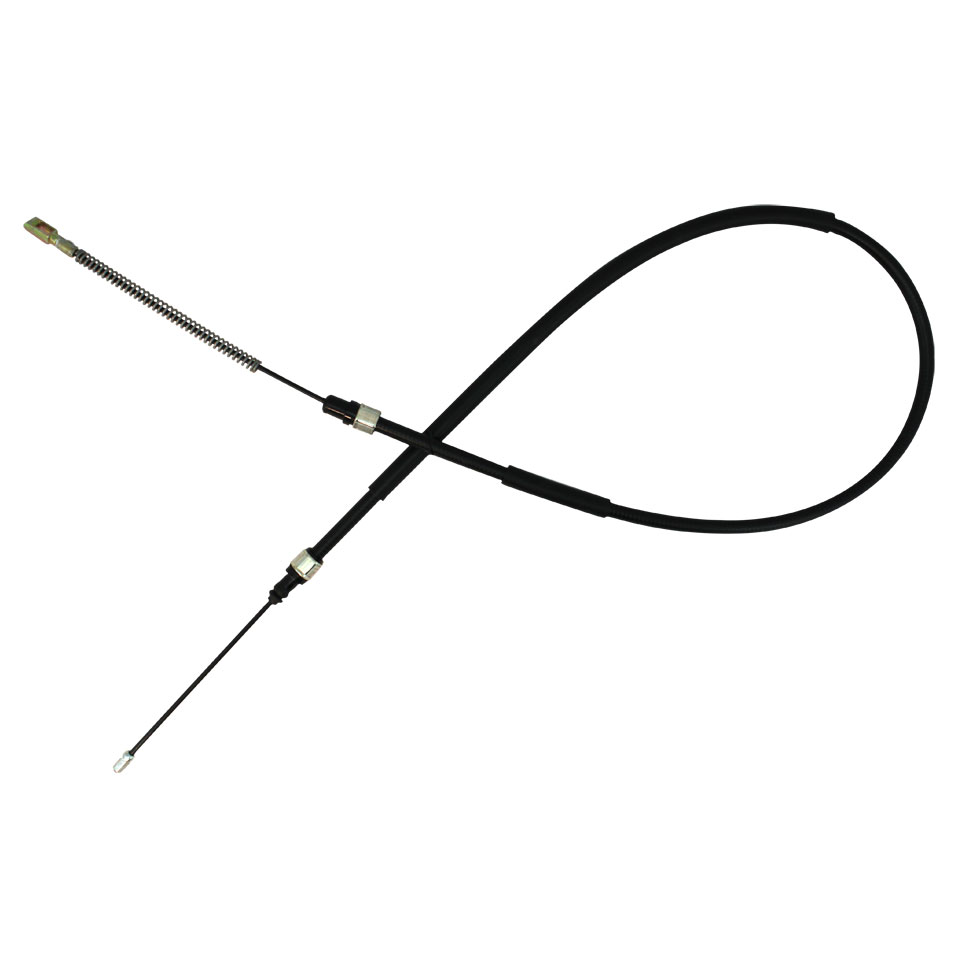

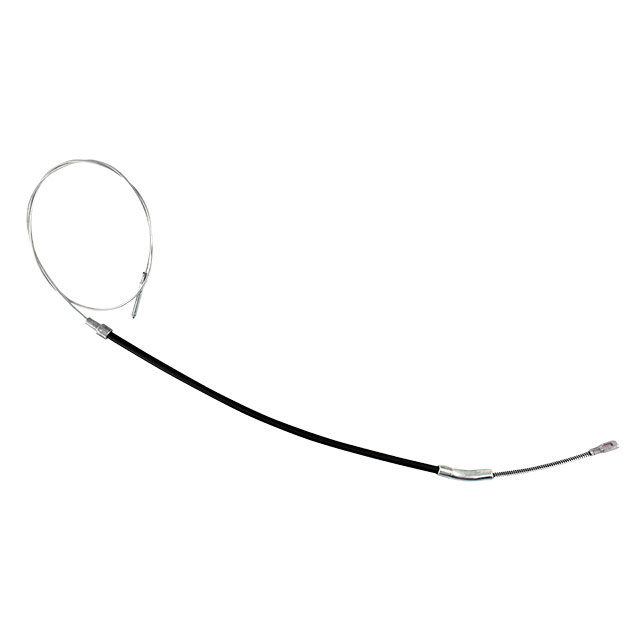

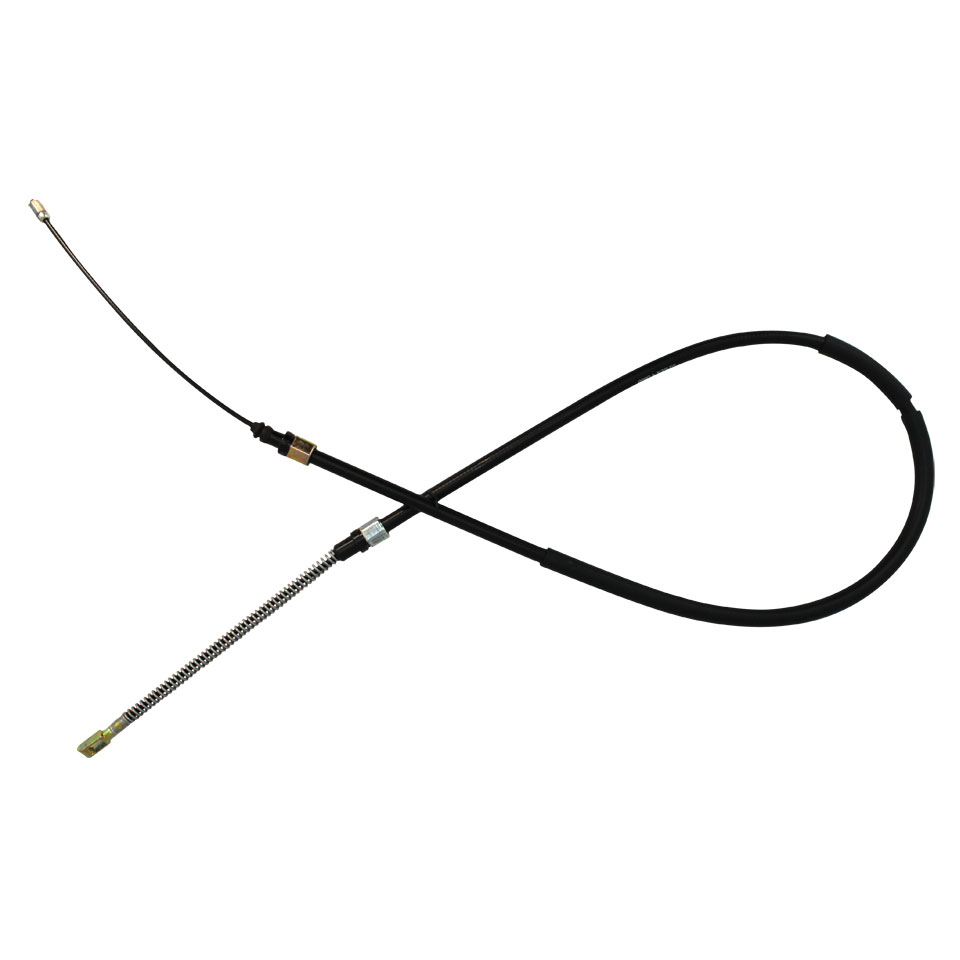

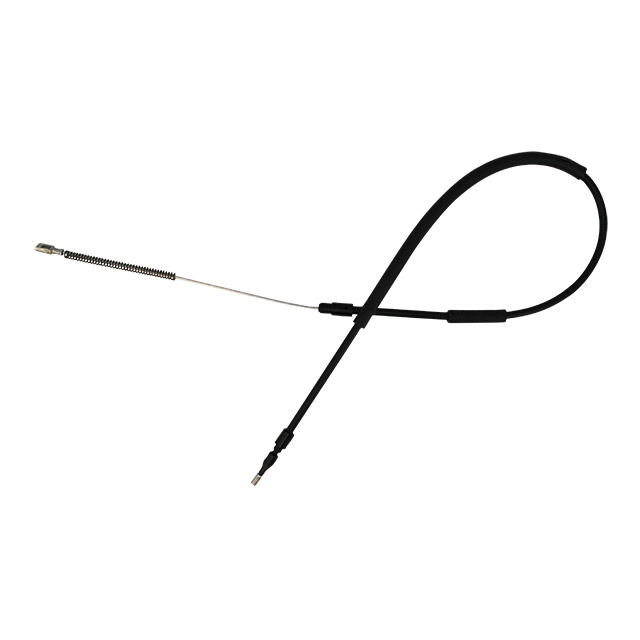

1.5 Brake & handbrake cables
1.6 Fuel flap cables & handles
1.7 Choke & cold start cables
1.8 Bonnet & engine lid cables

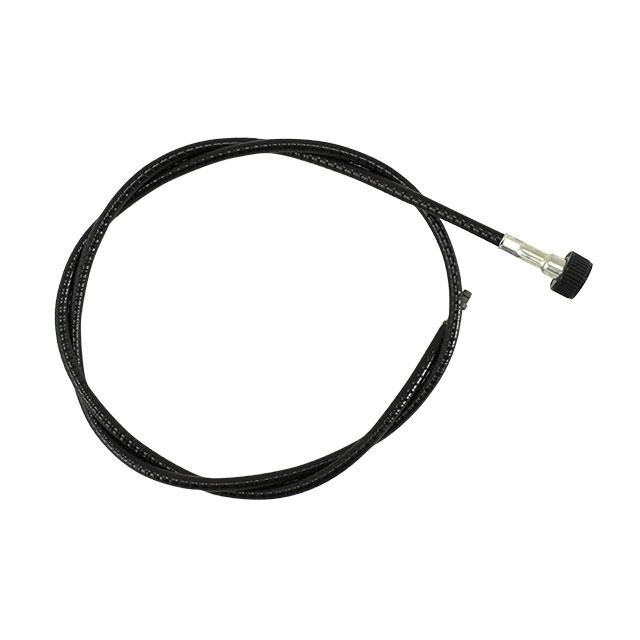

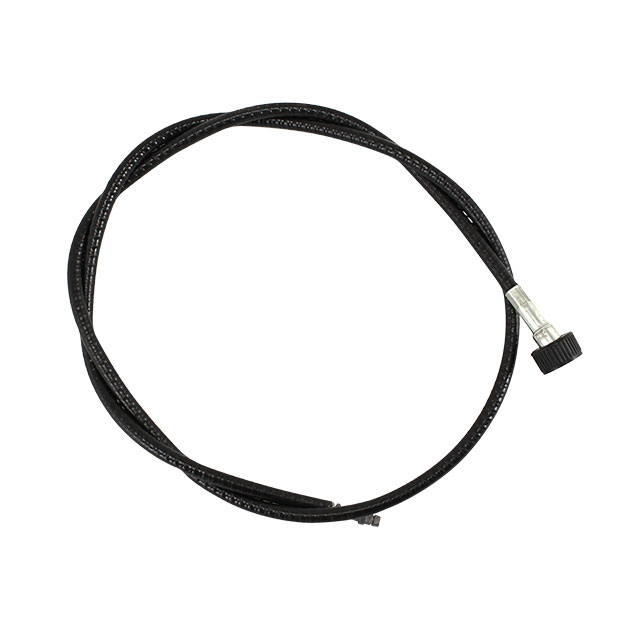

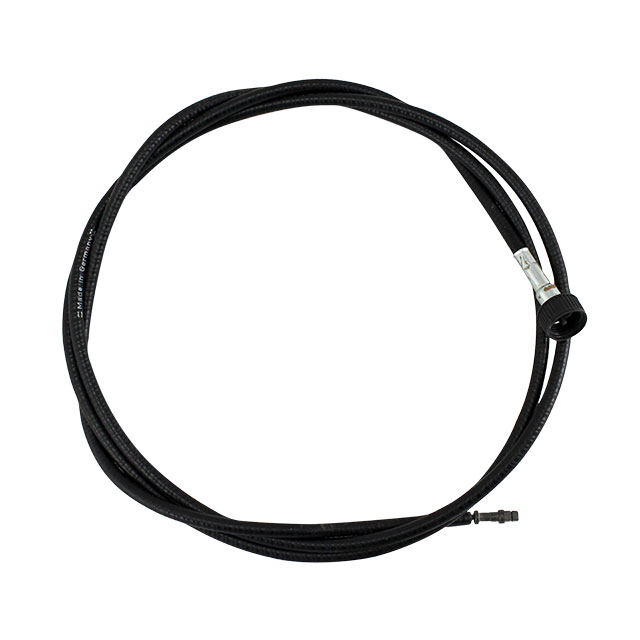

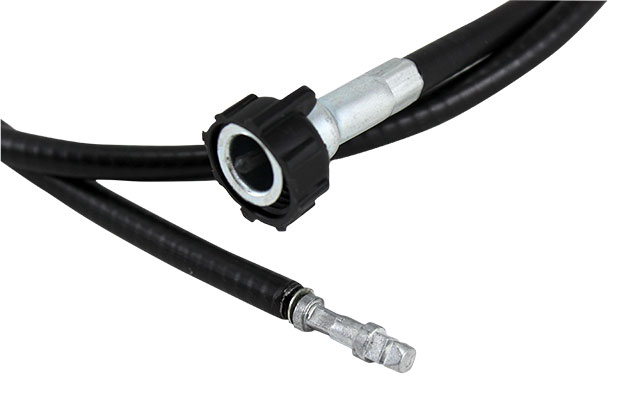

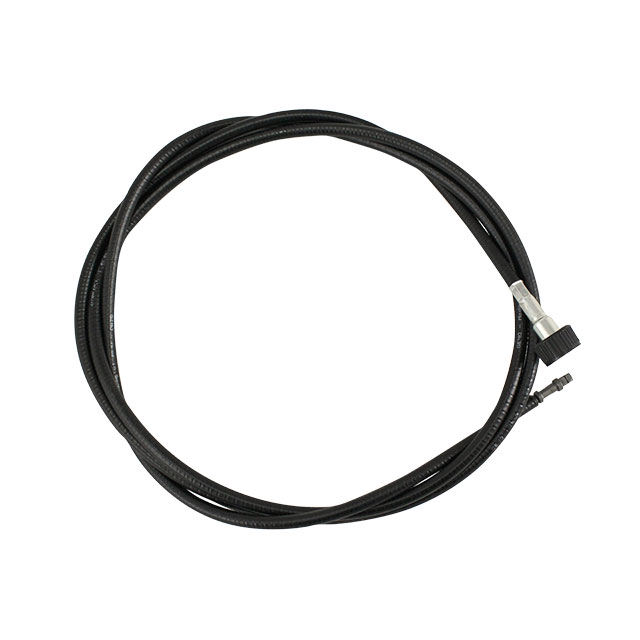

1.9 Speedometer cables
2. Brakes & parts

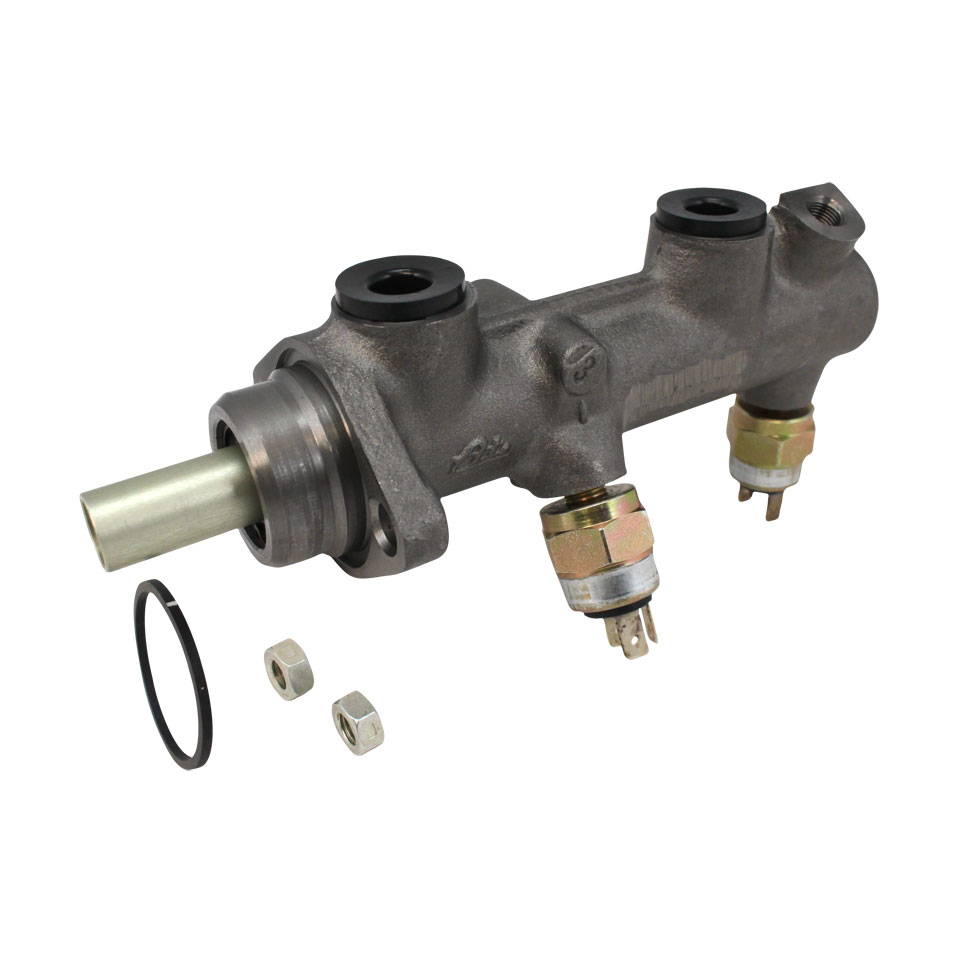

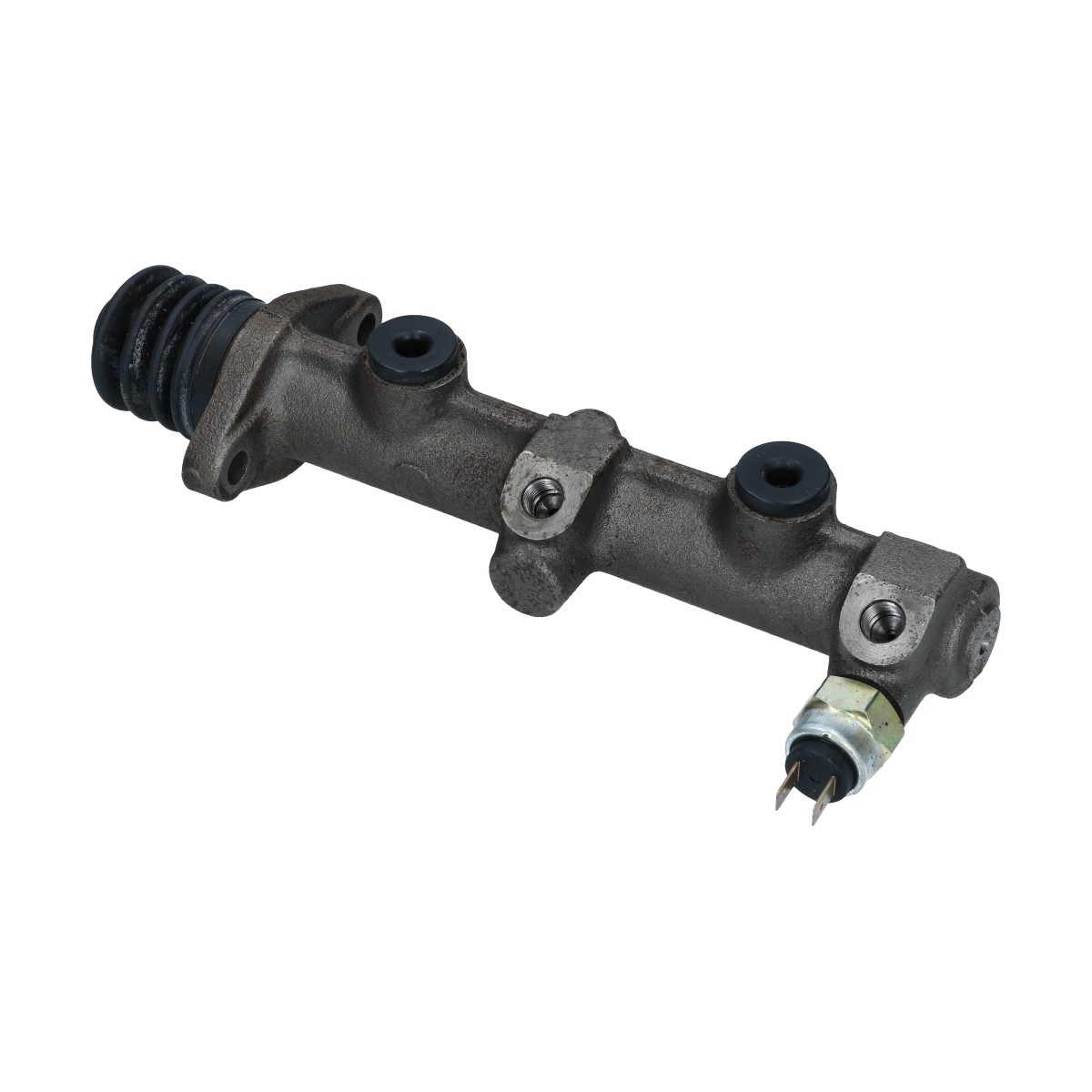

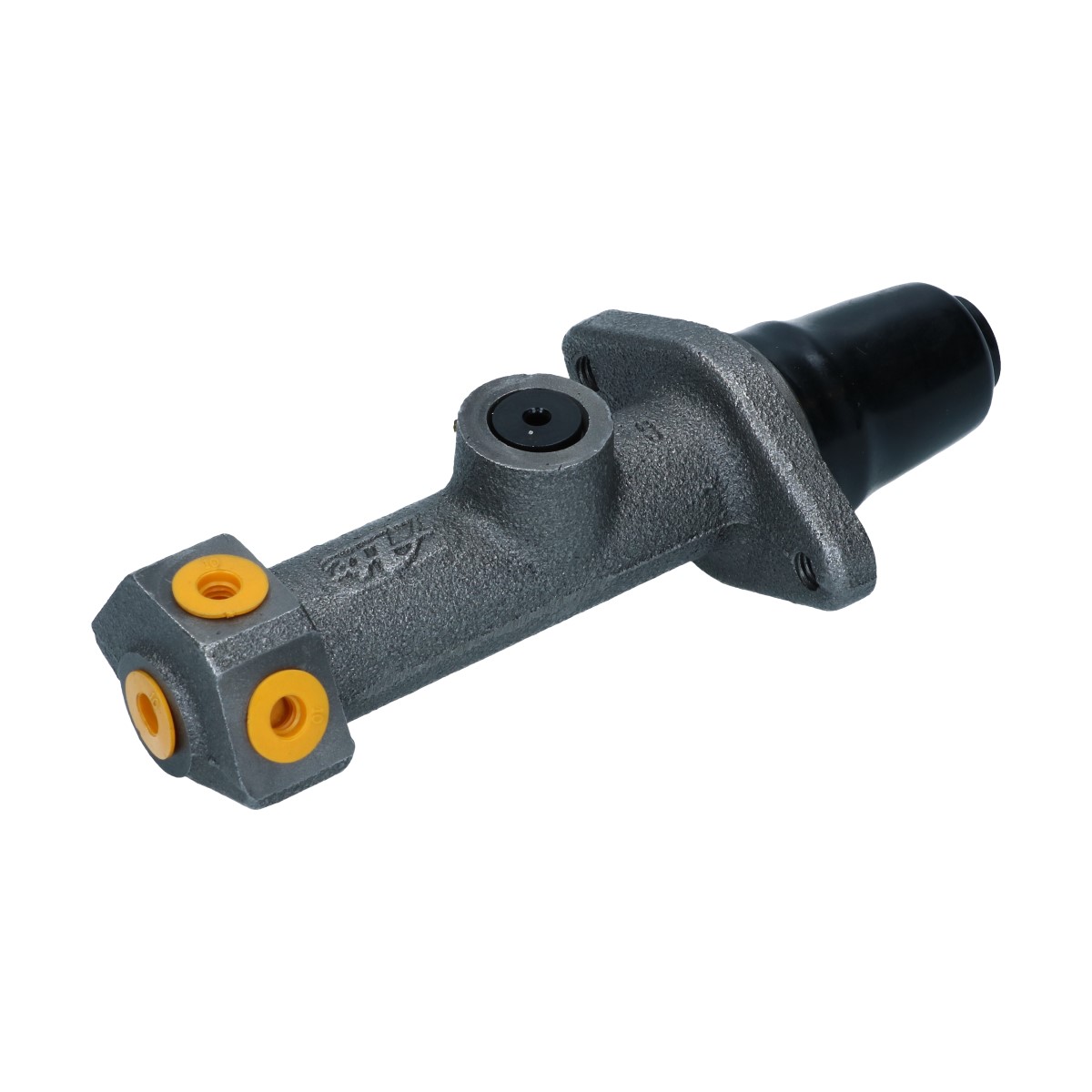

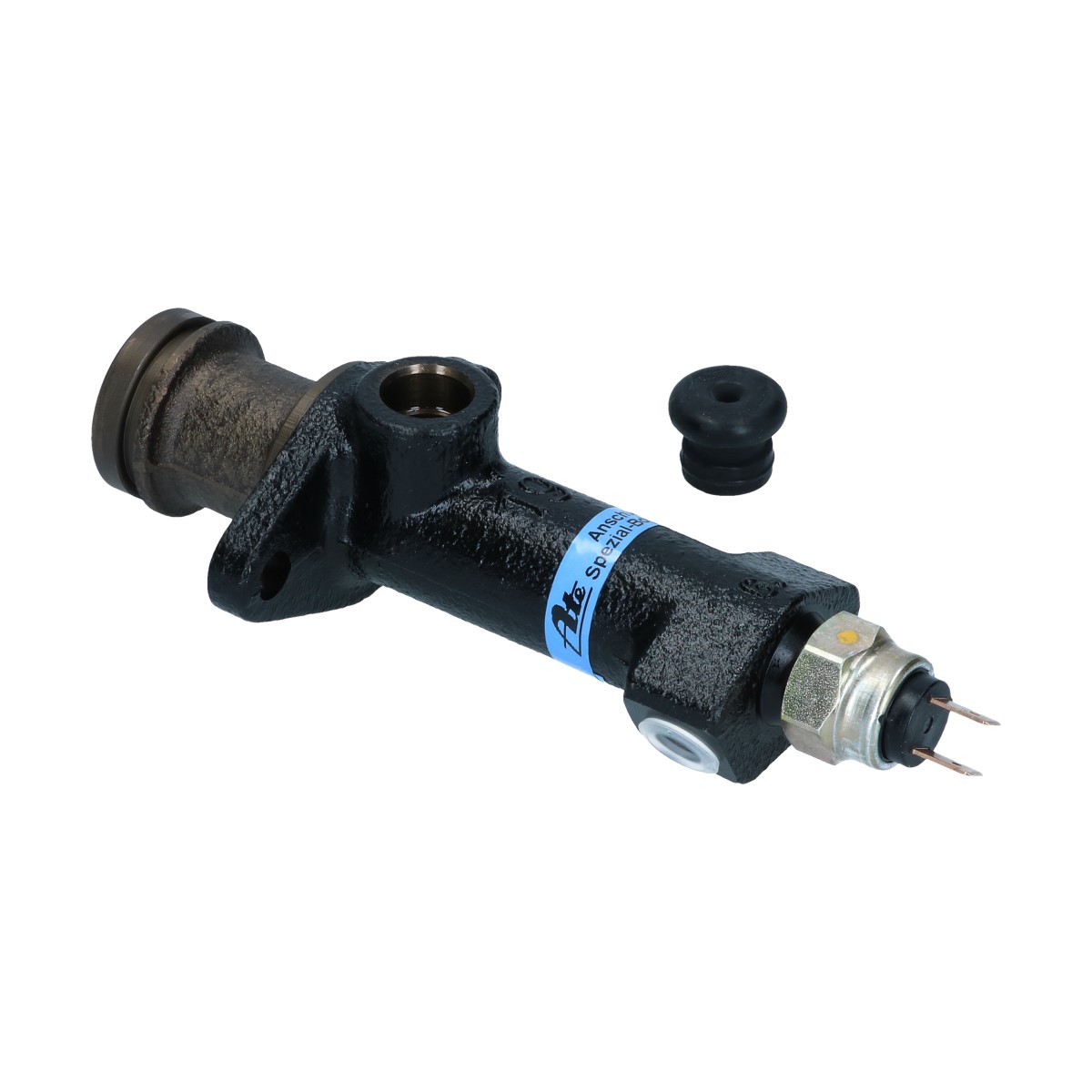

2.1 Master brake cylinders & hardware

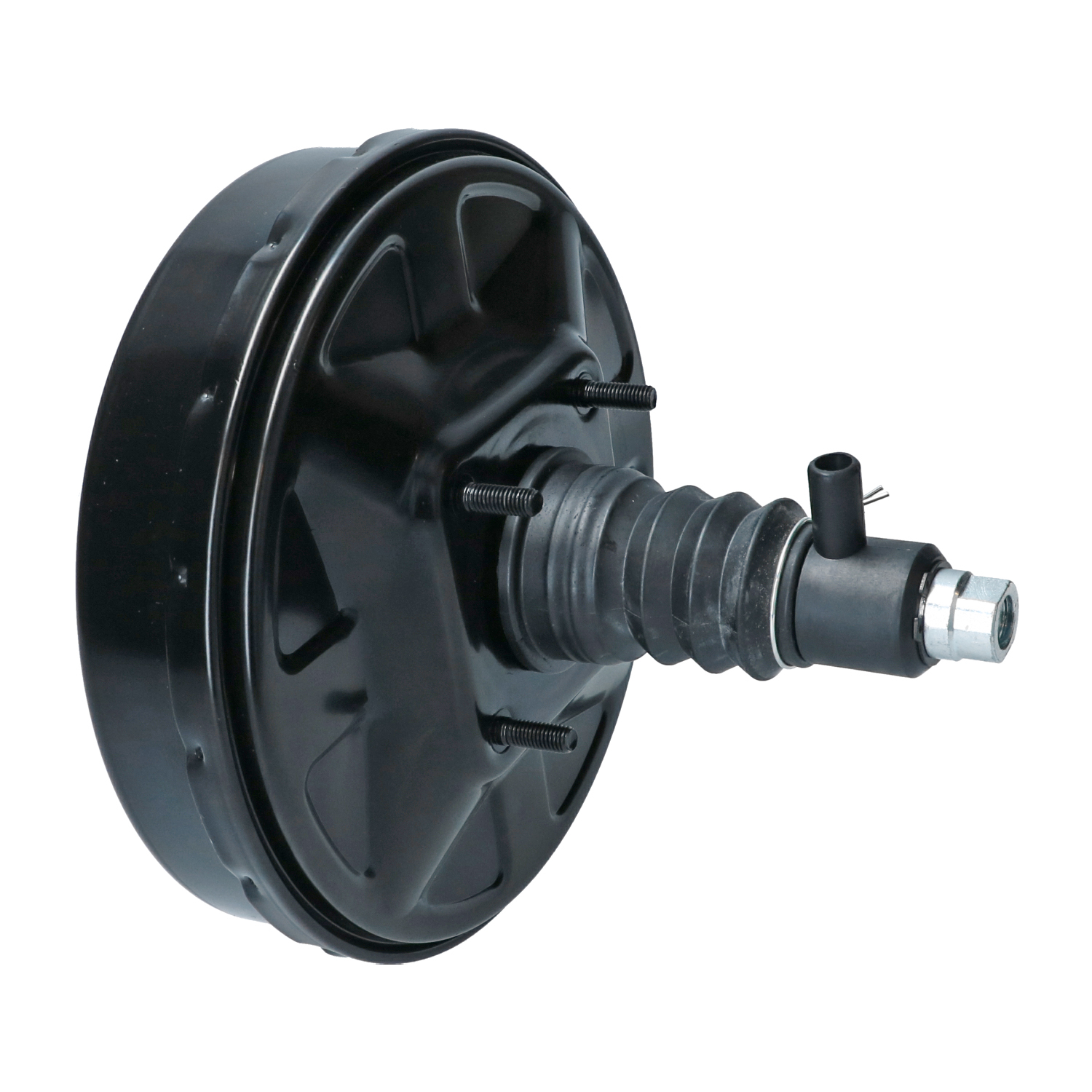

2.2 Servo & parts

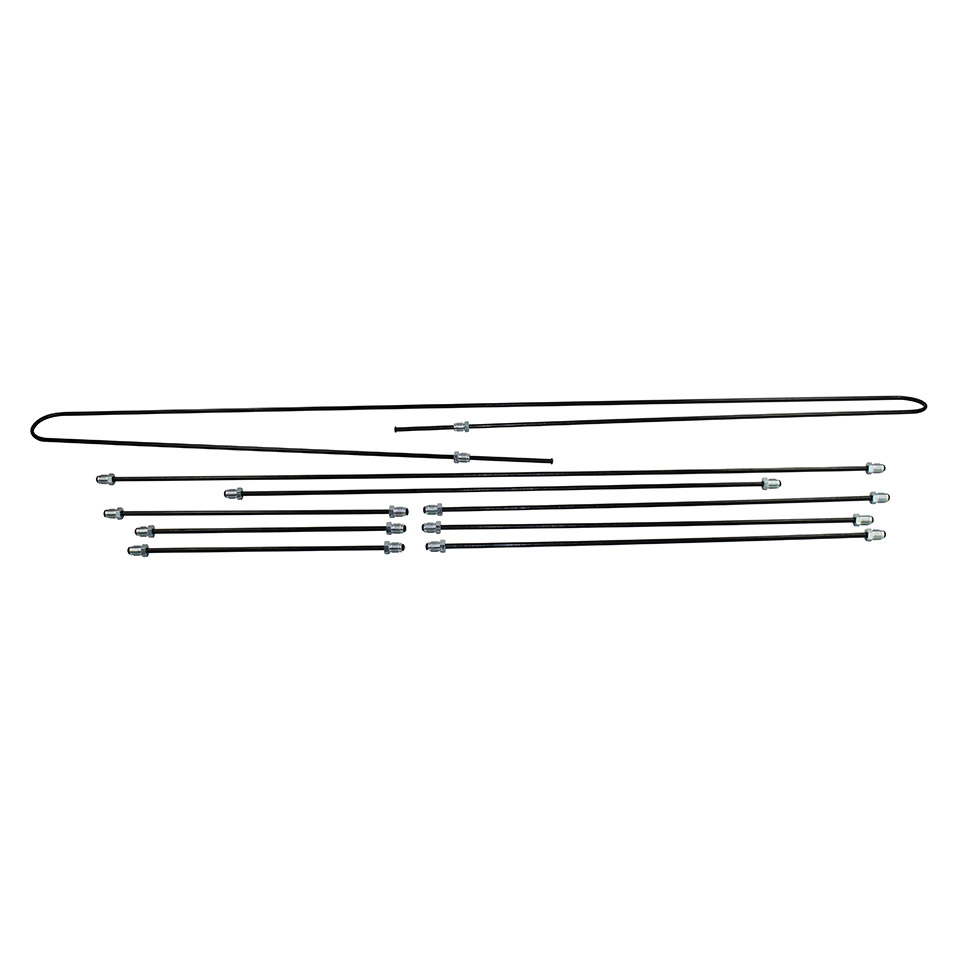

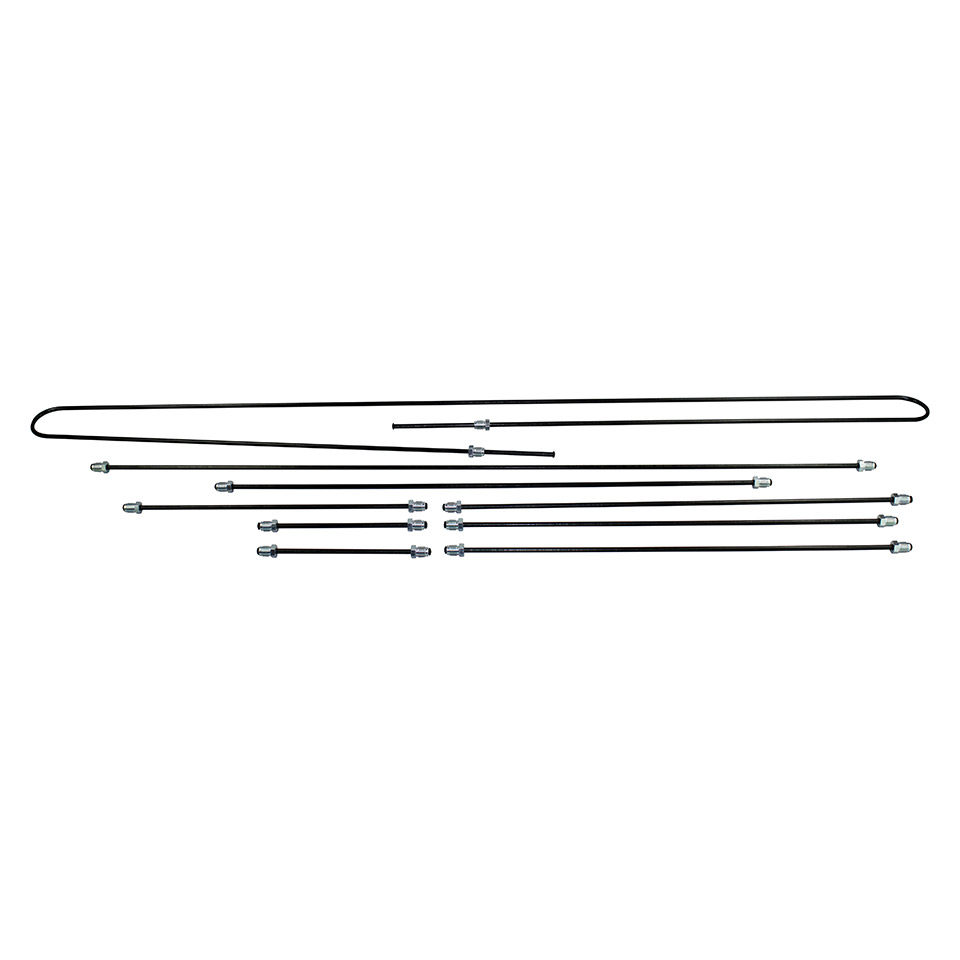

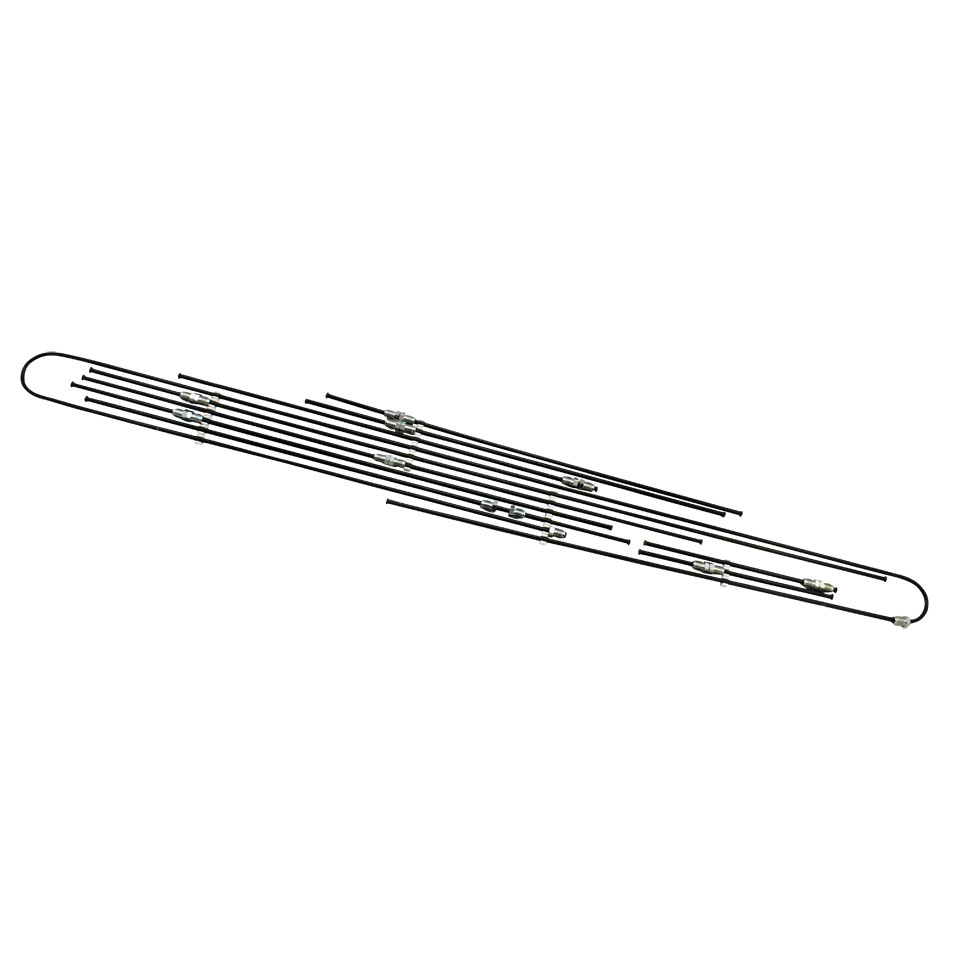

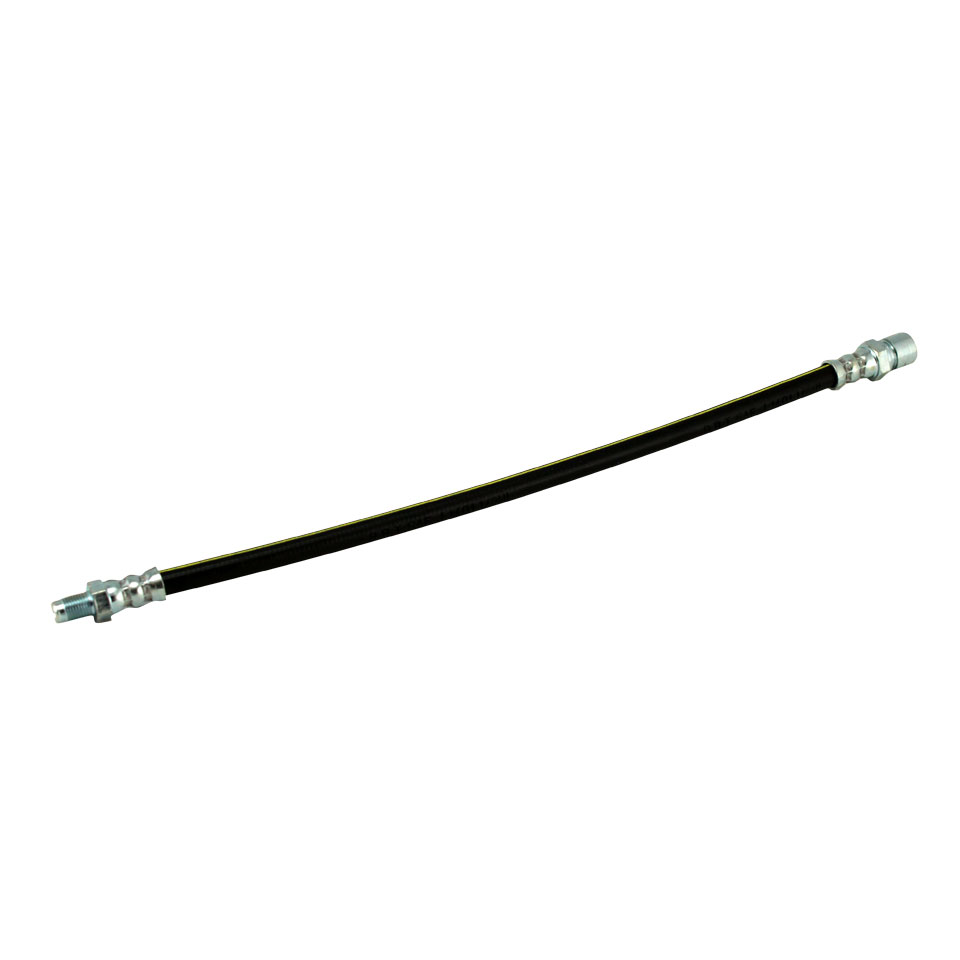

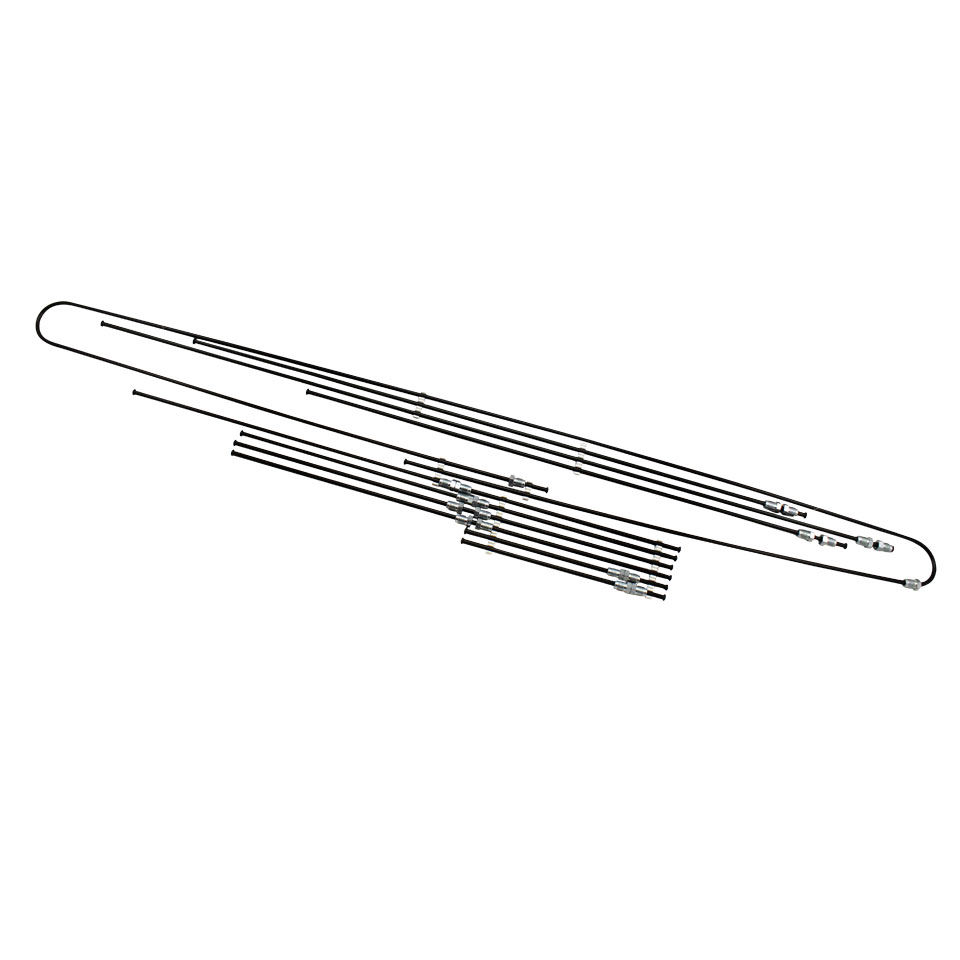

2.3 Brake pipes, hoses & hardware

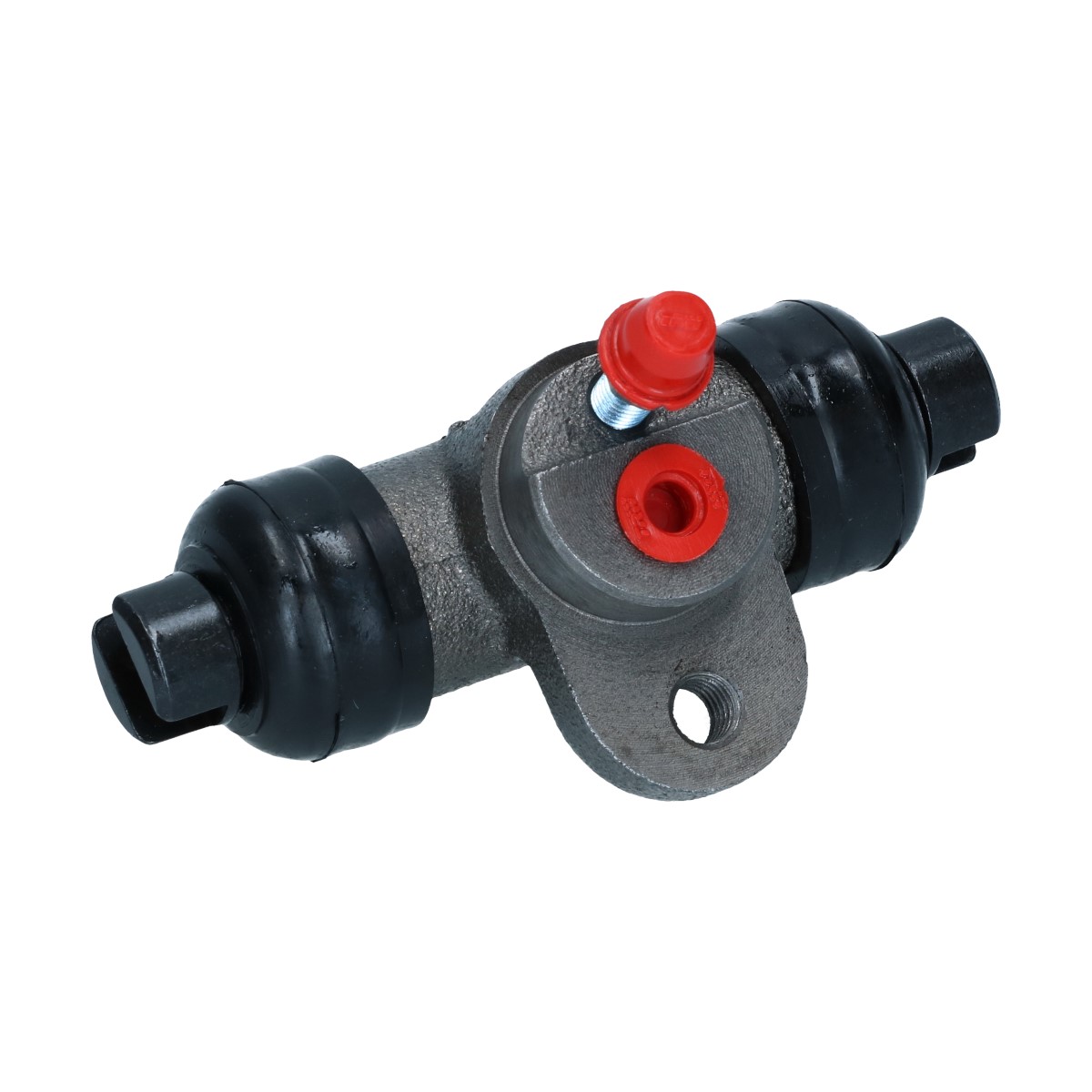

2.4 Wheel cylinders & nipples

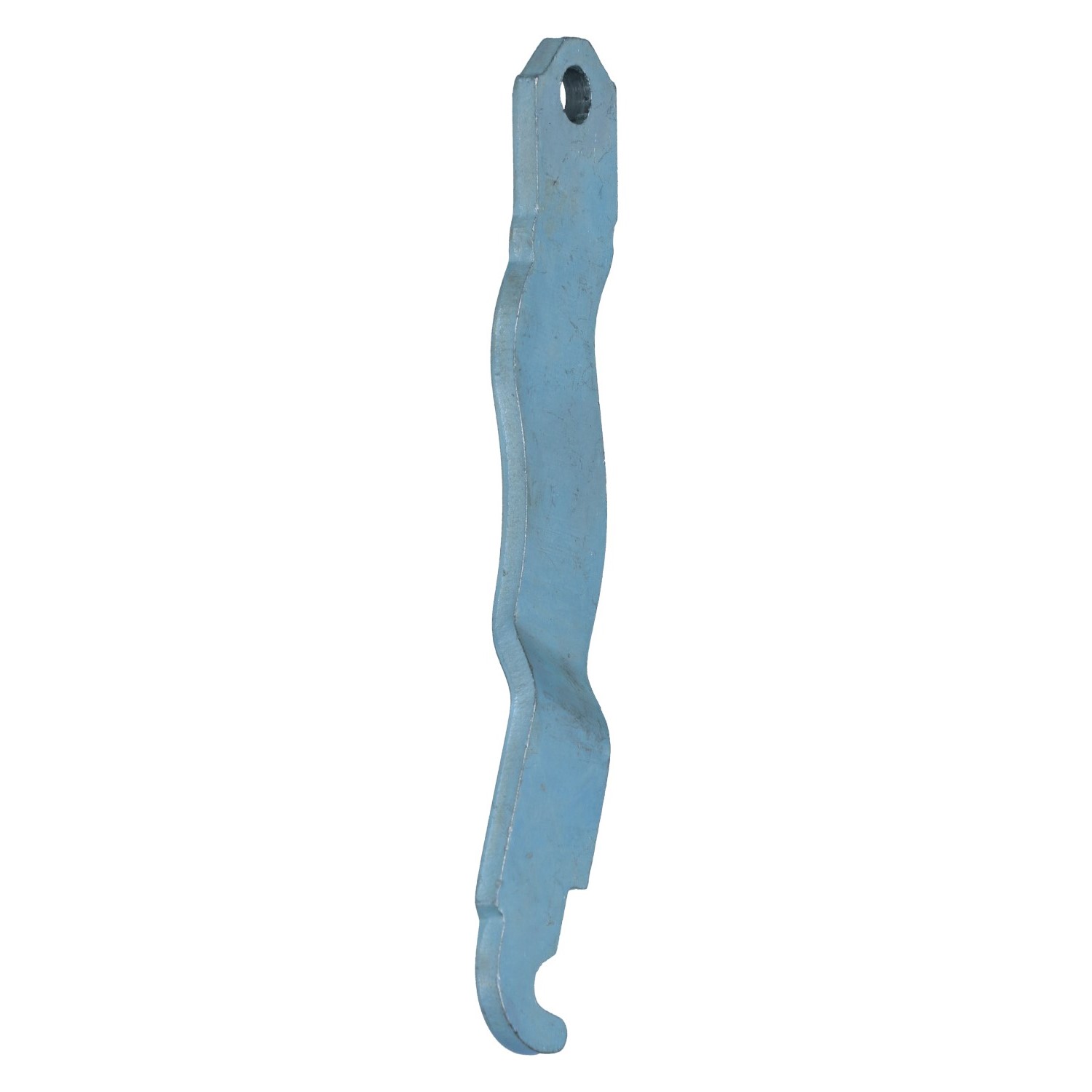

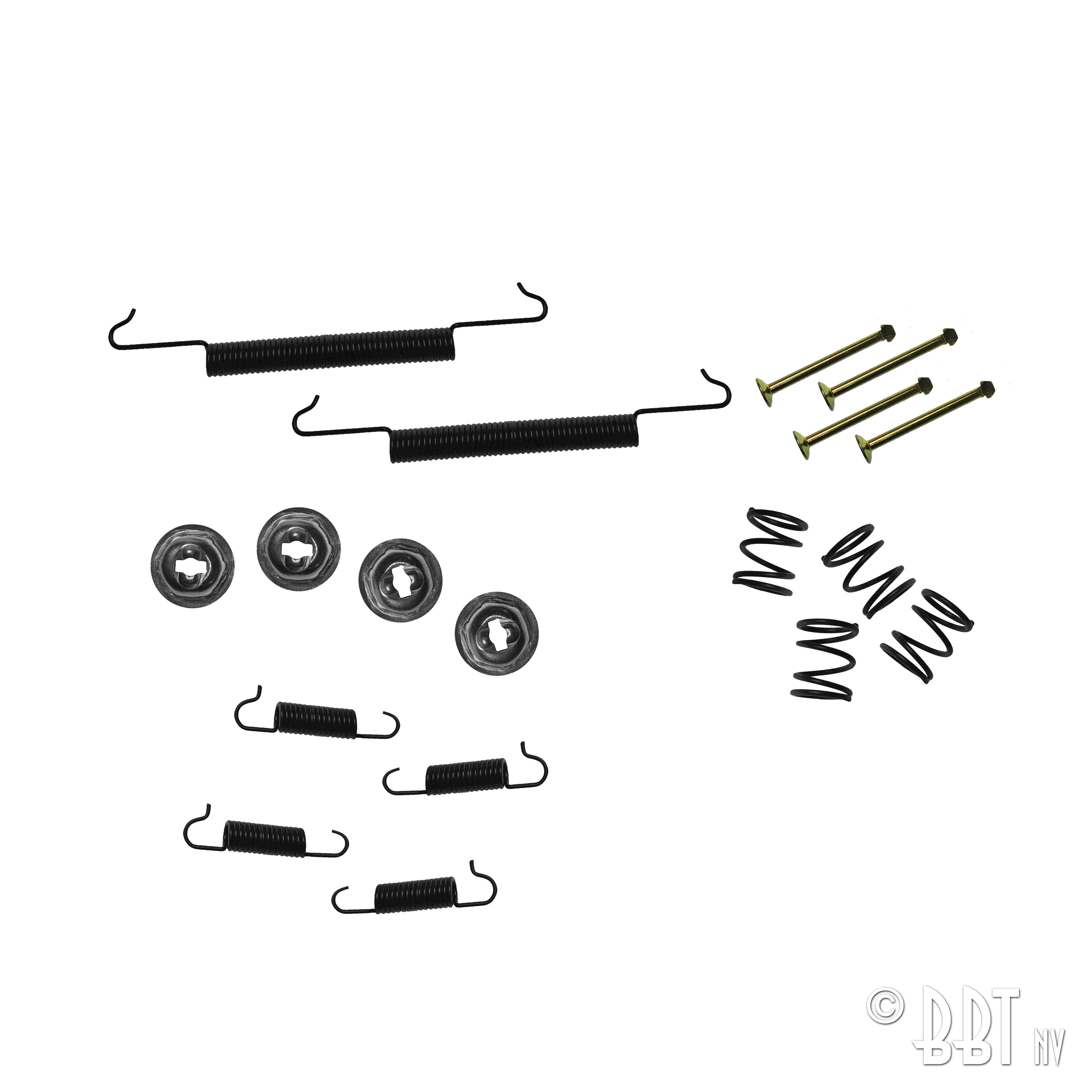

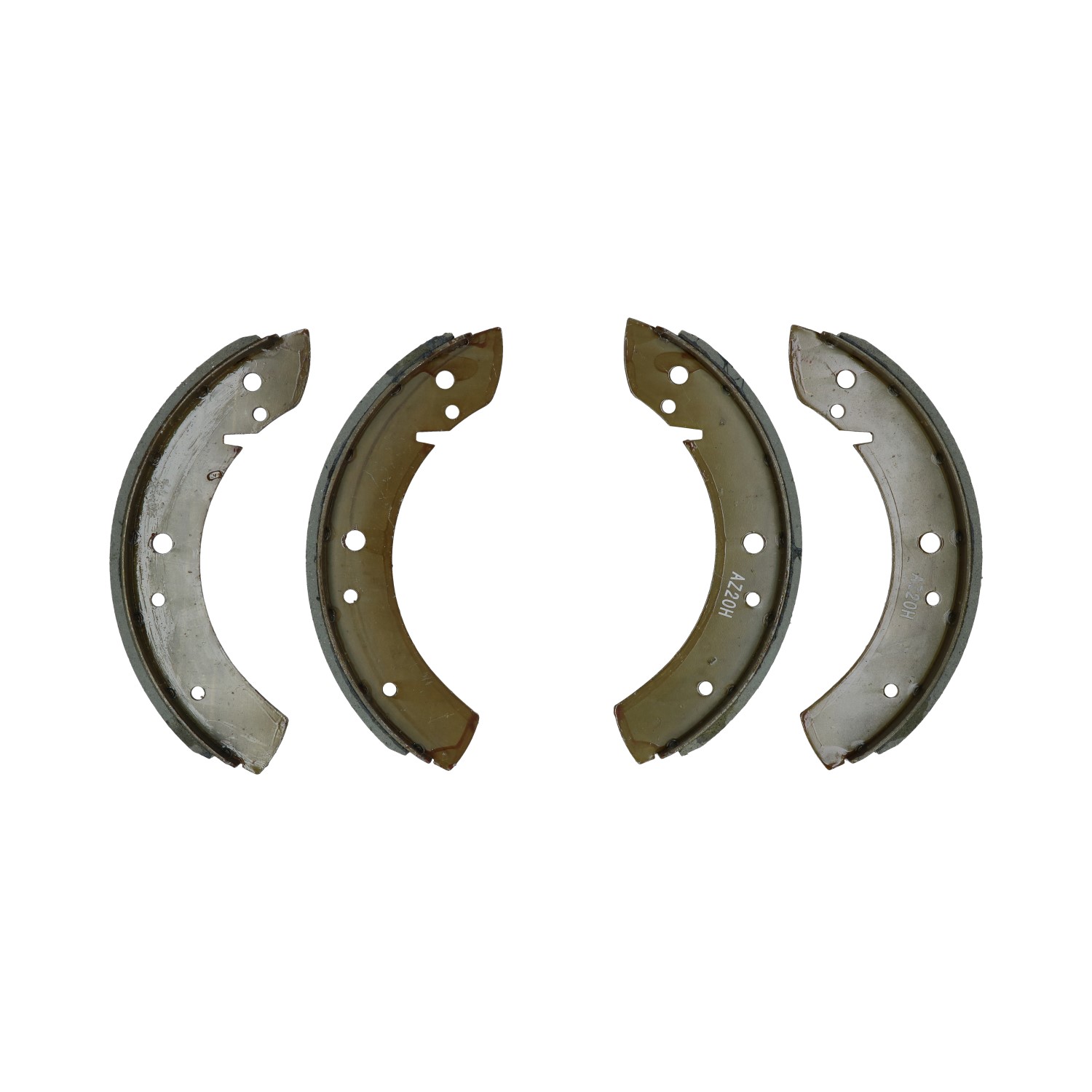

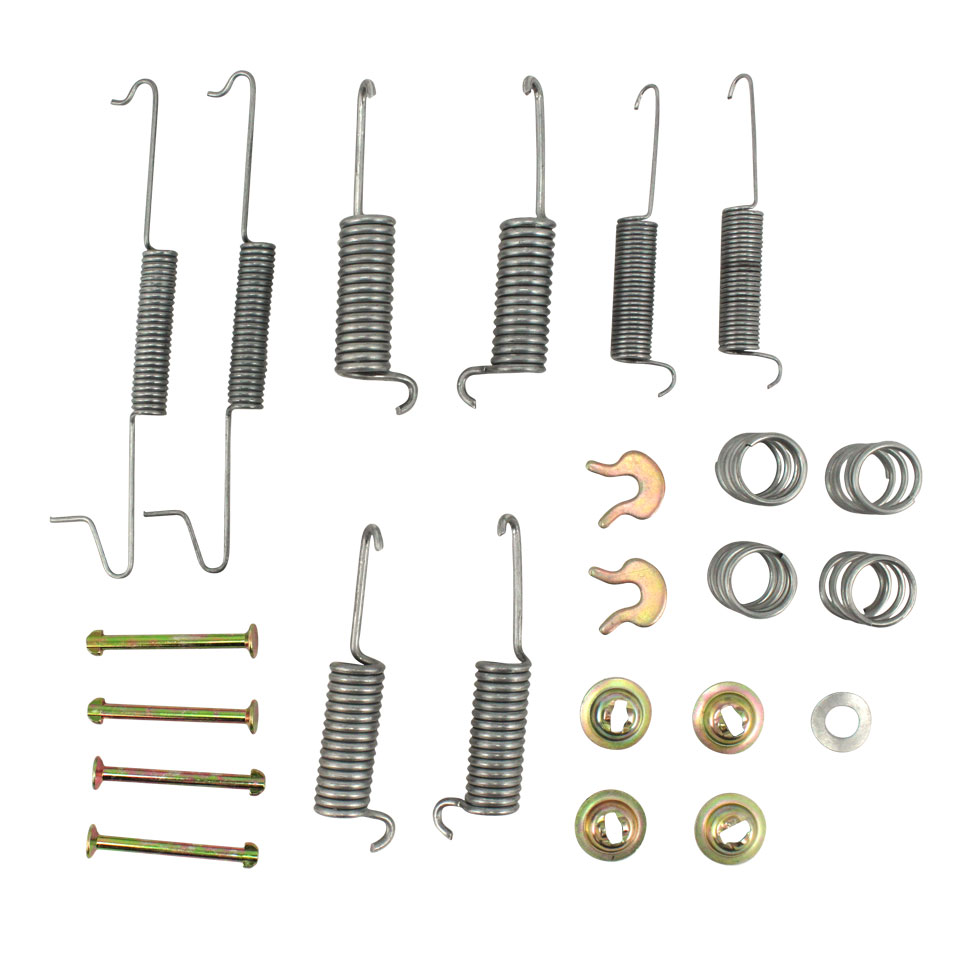

2.5 Brake shoes, handbrake parts & fitting kits

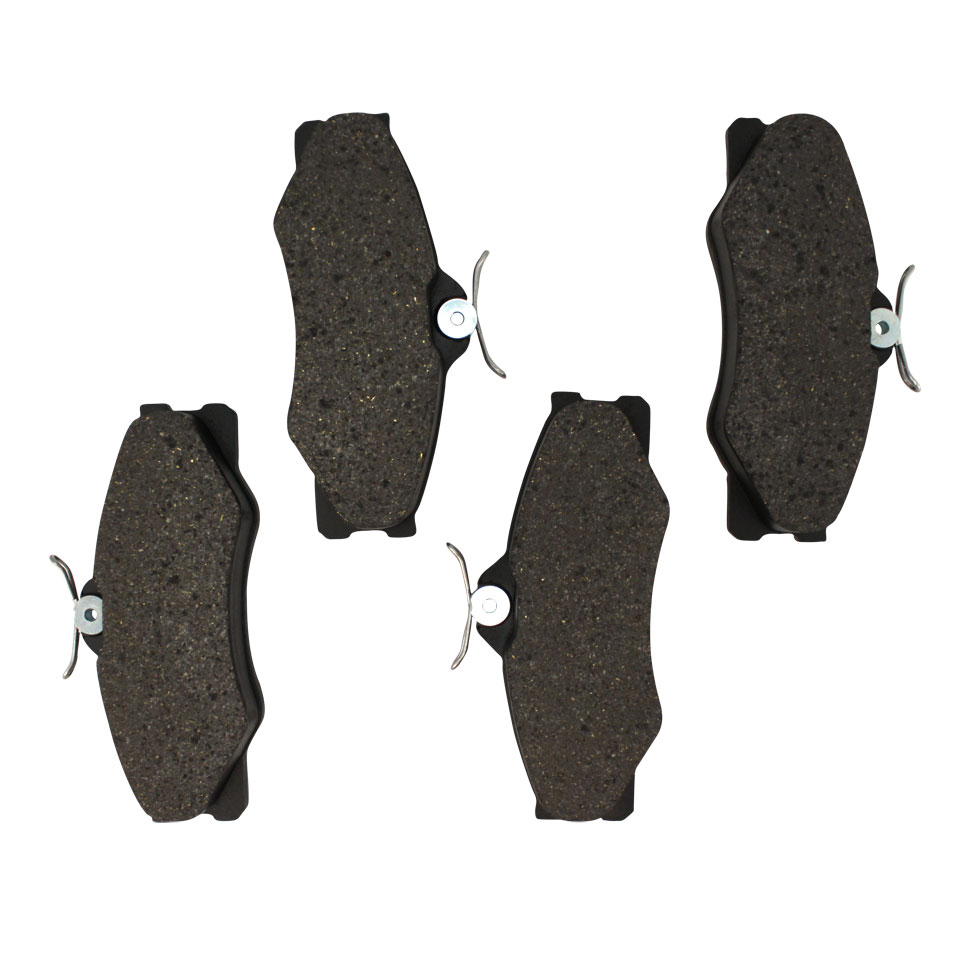

2.6 Brake discs, pads & parts

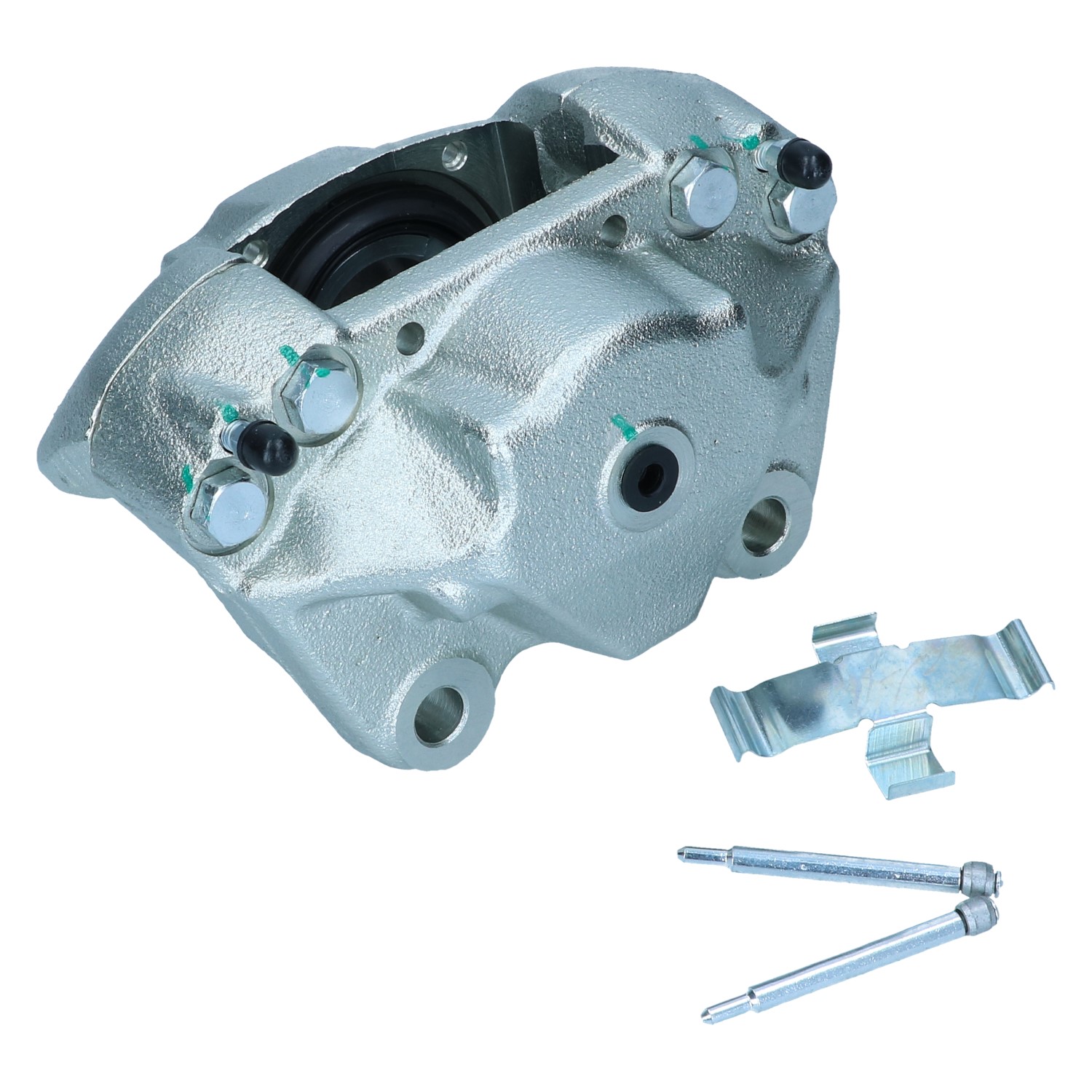

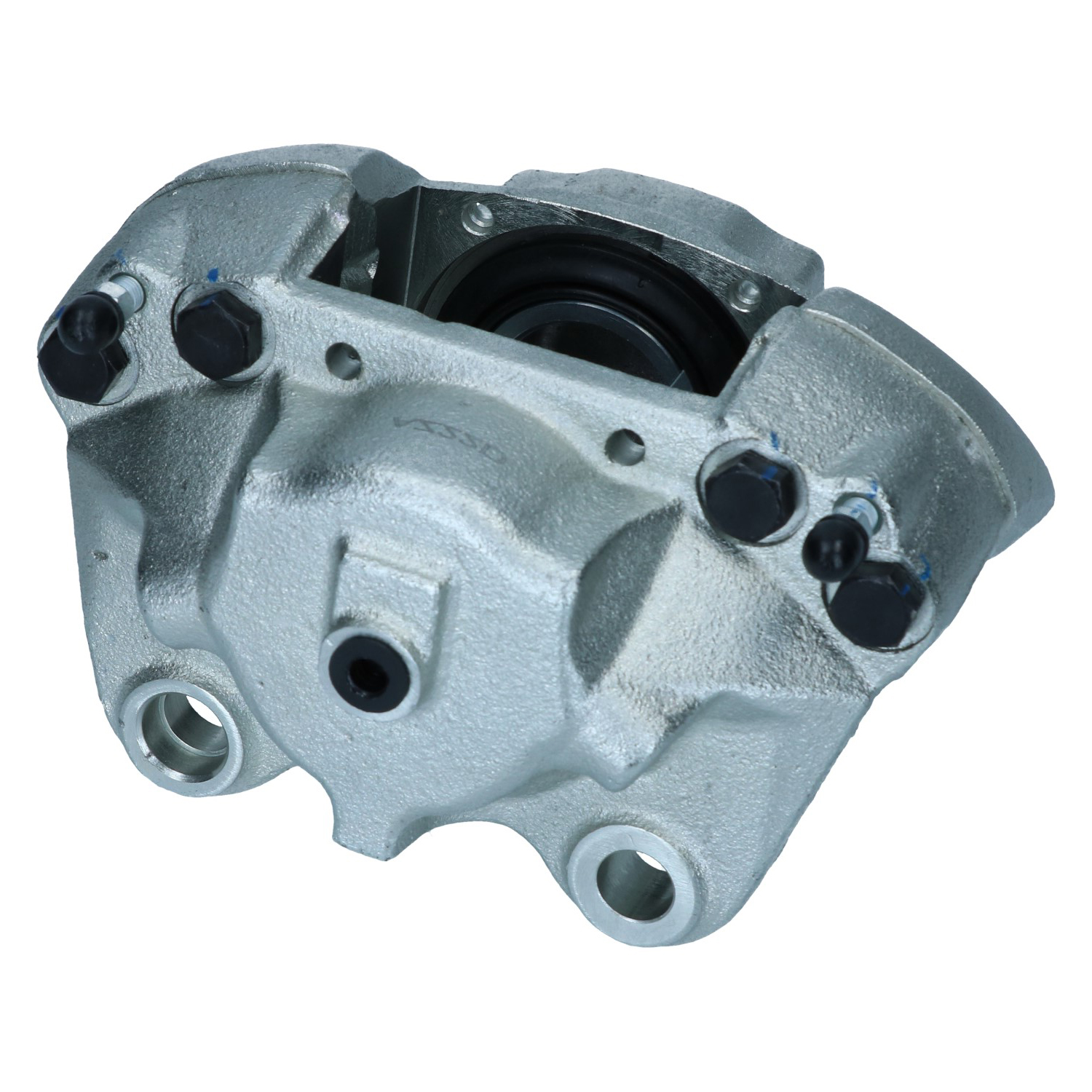

2.7 Calipers, rebuild kits, & hardware

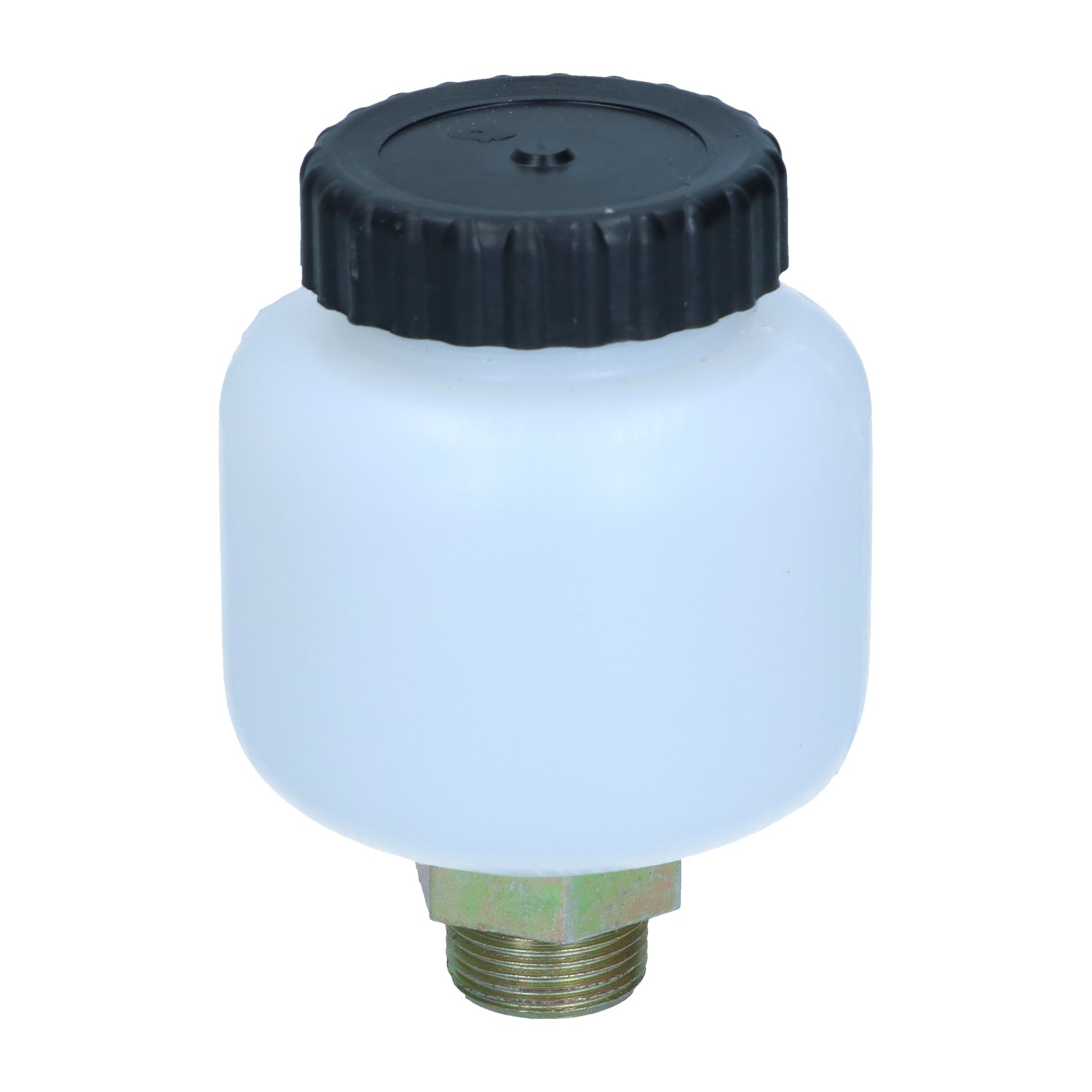

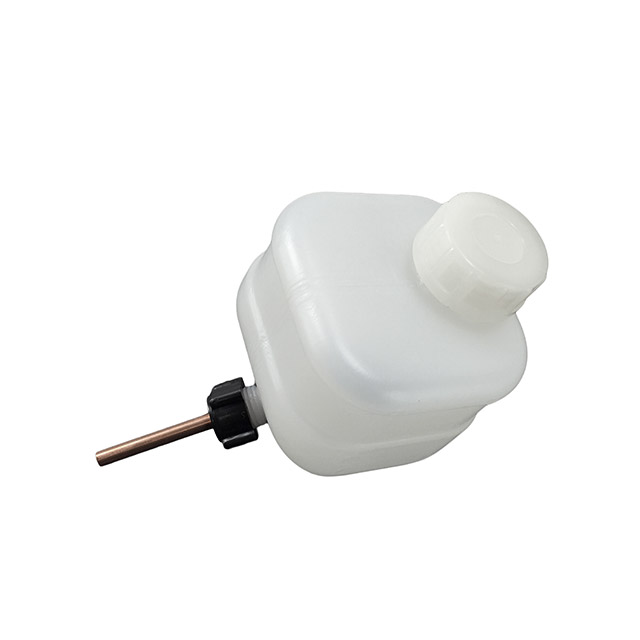

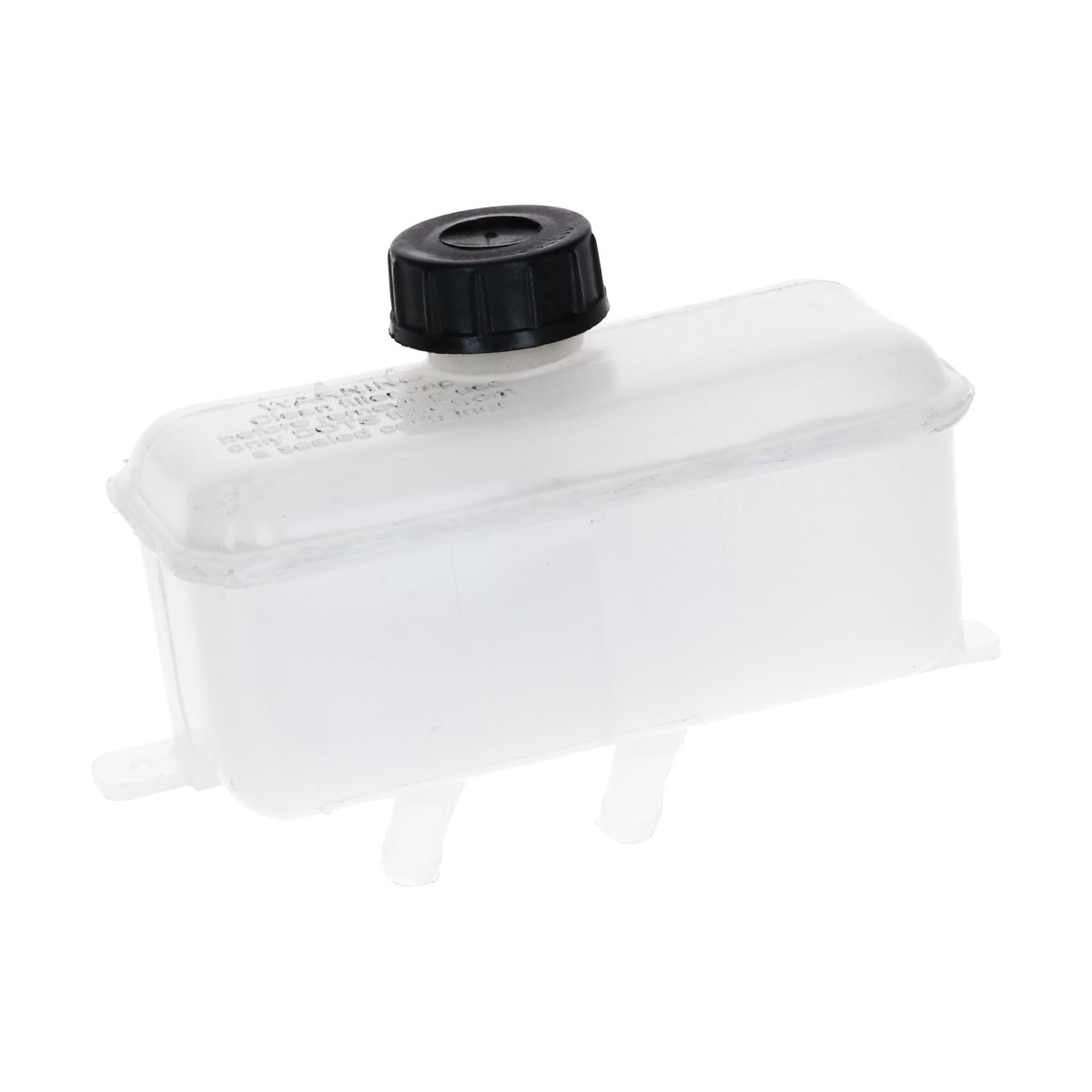

2.8 Brake fluid reservoirs

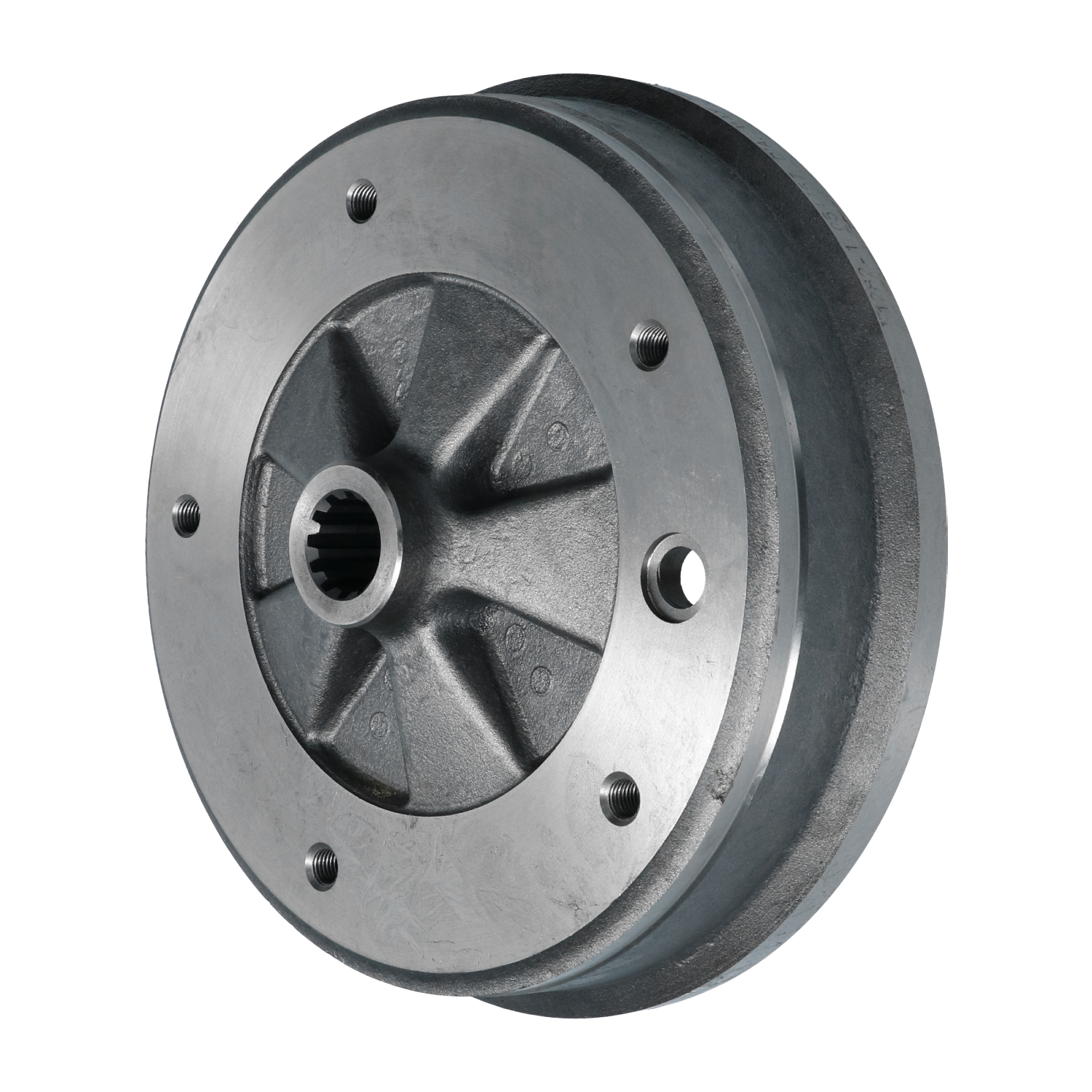

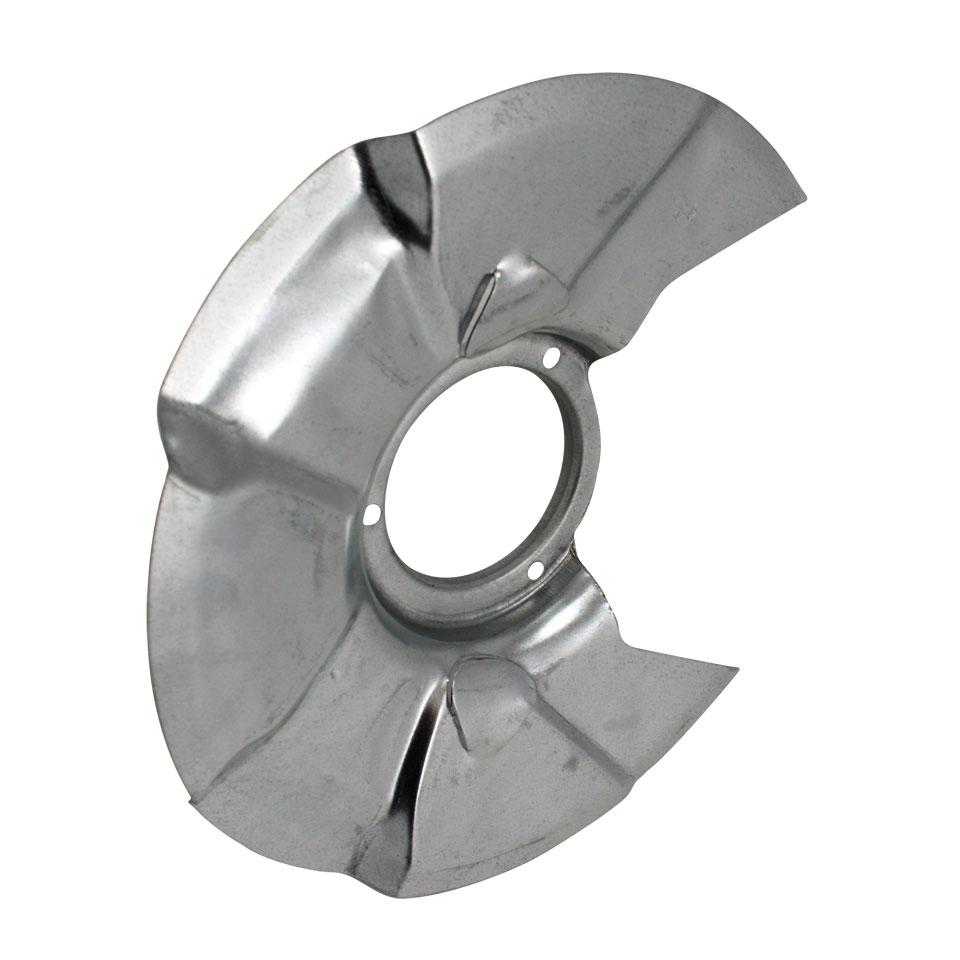

2.9 Drums & deflectors

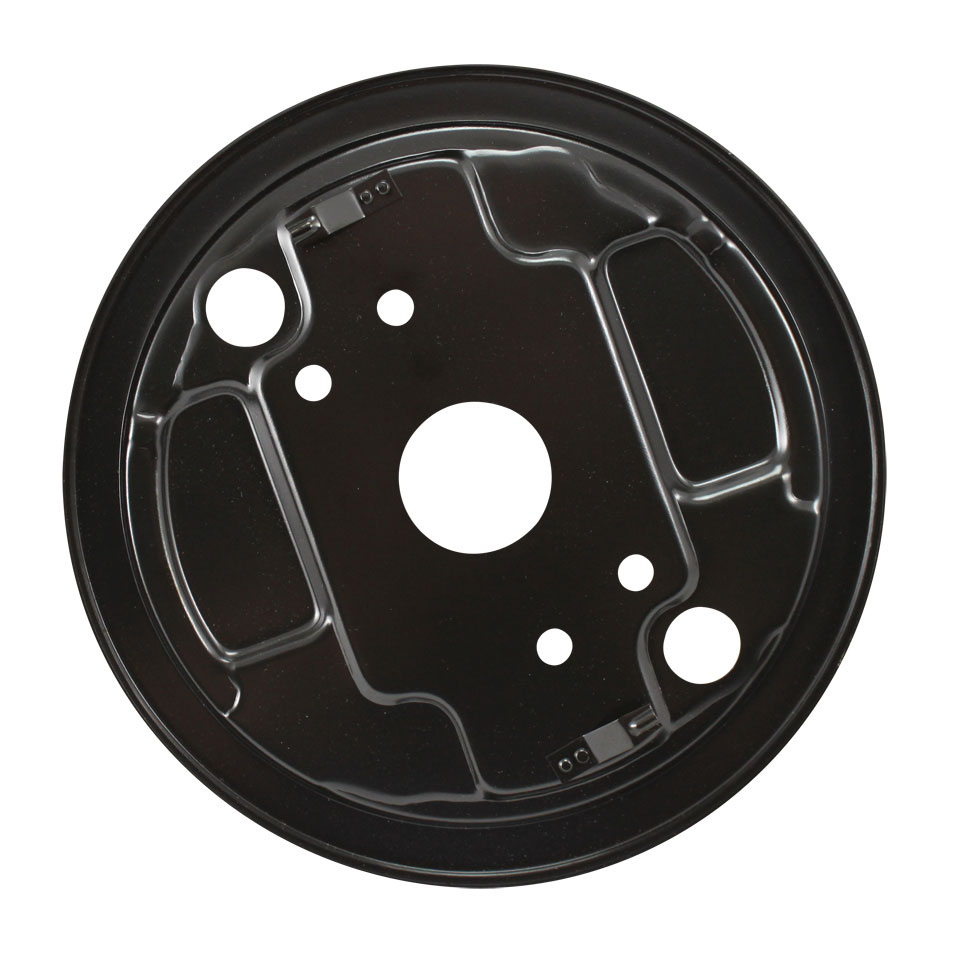

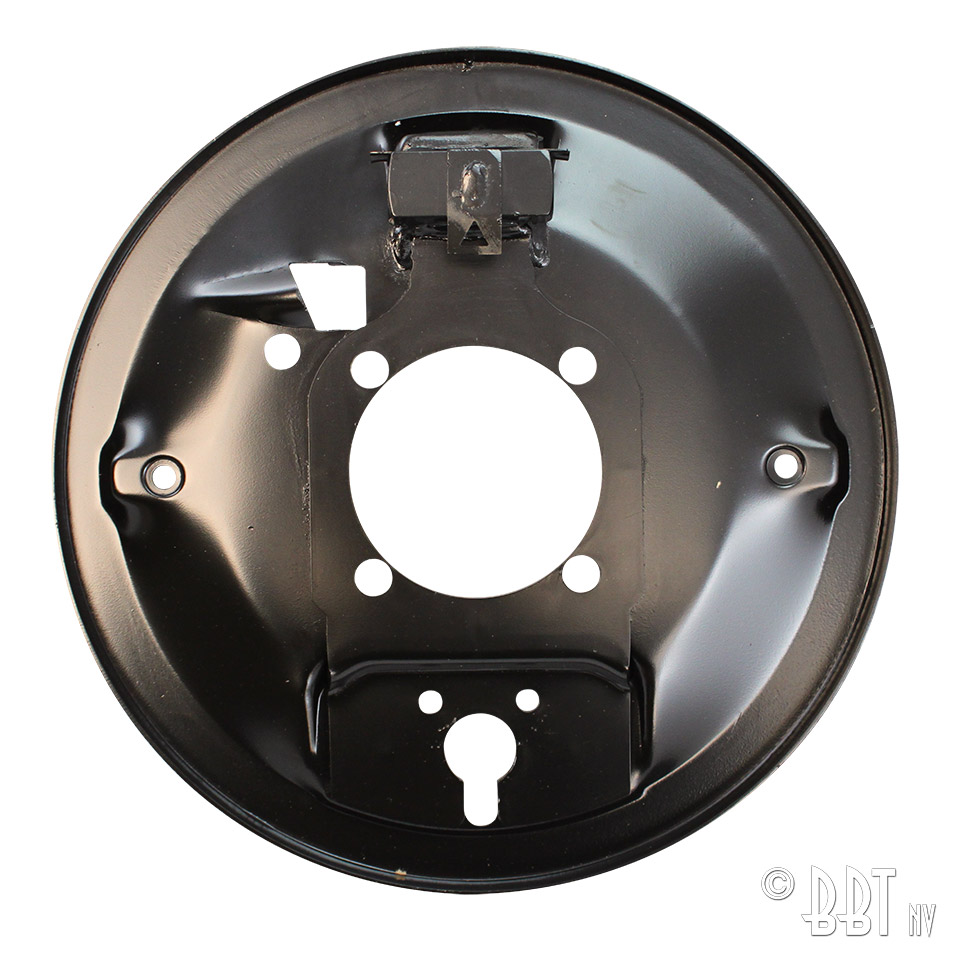

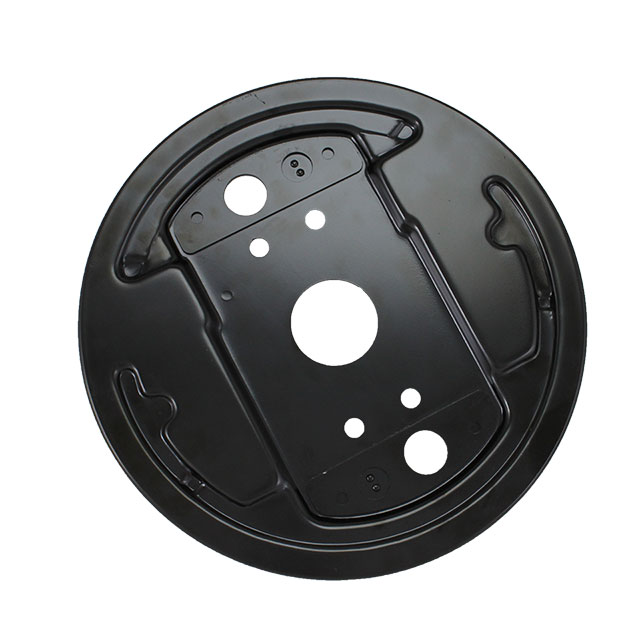

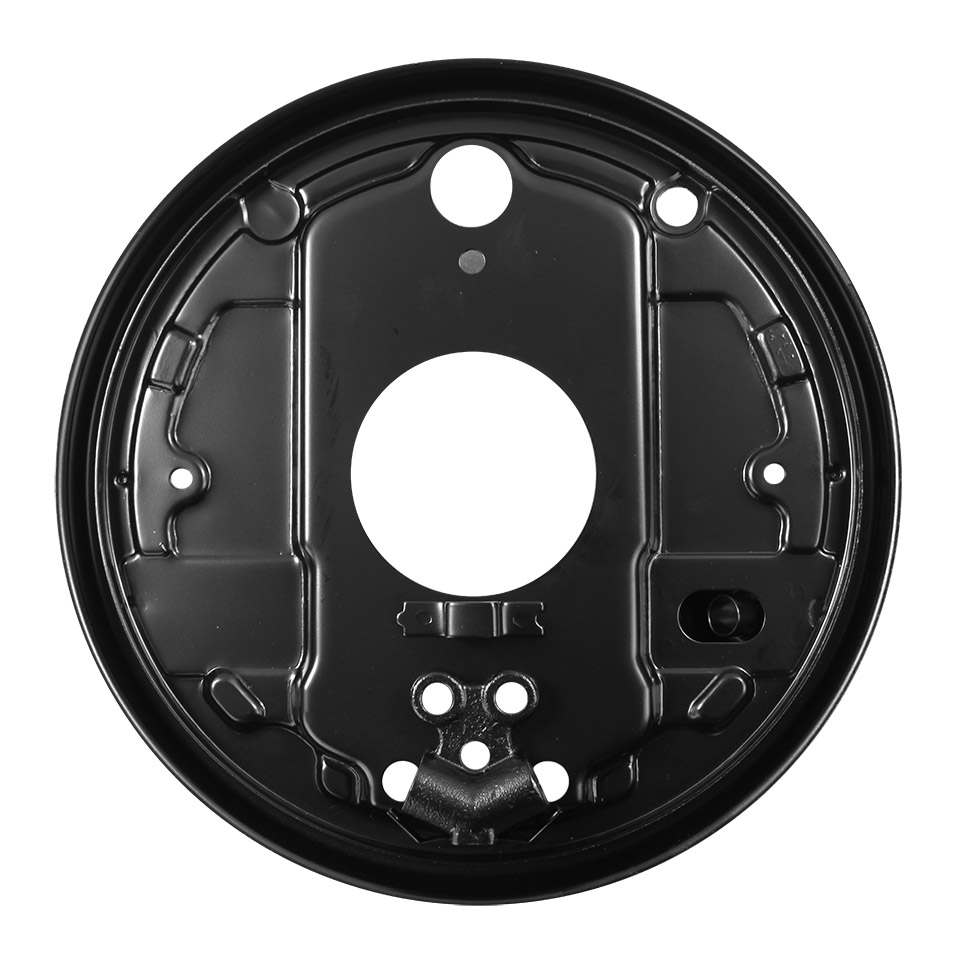

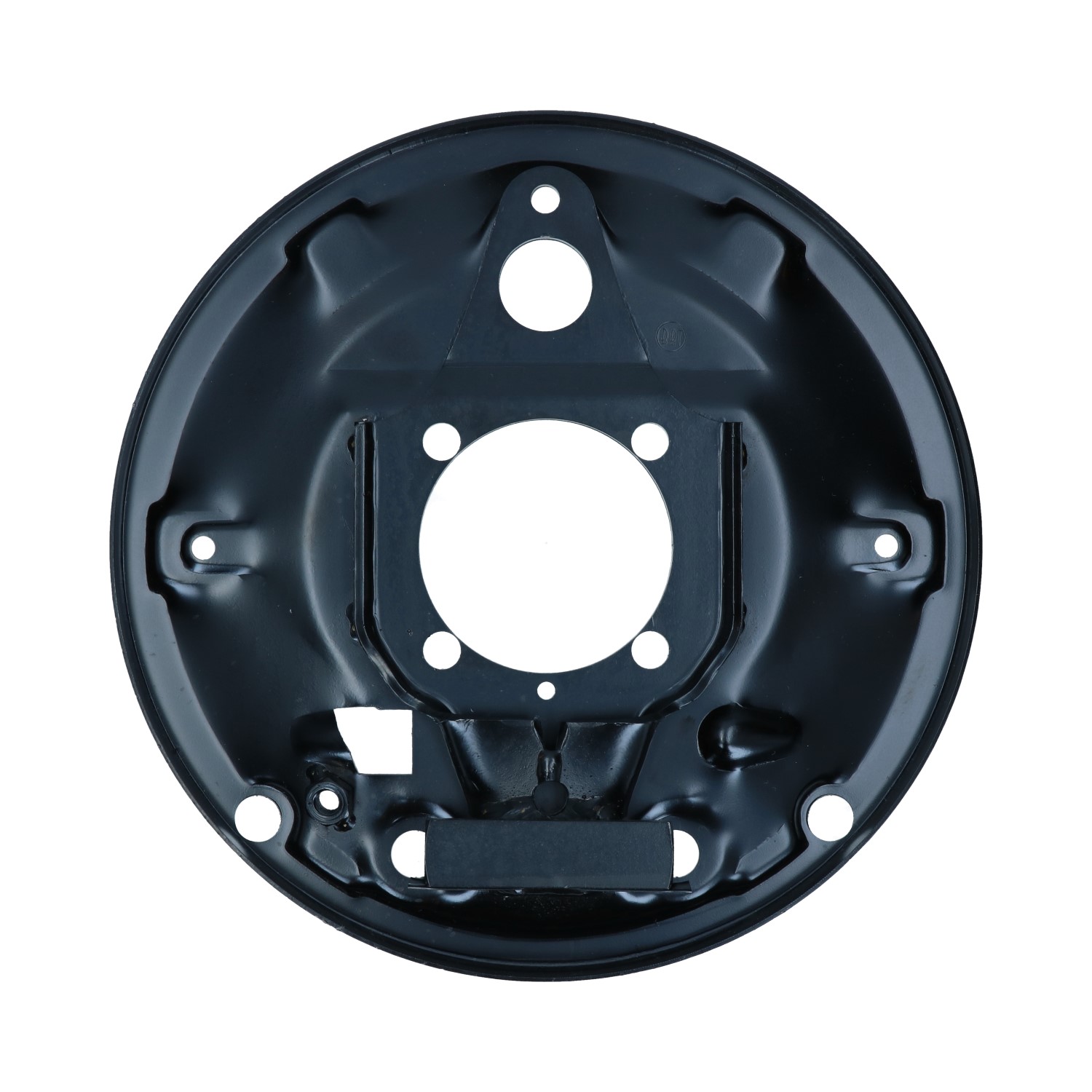

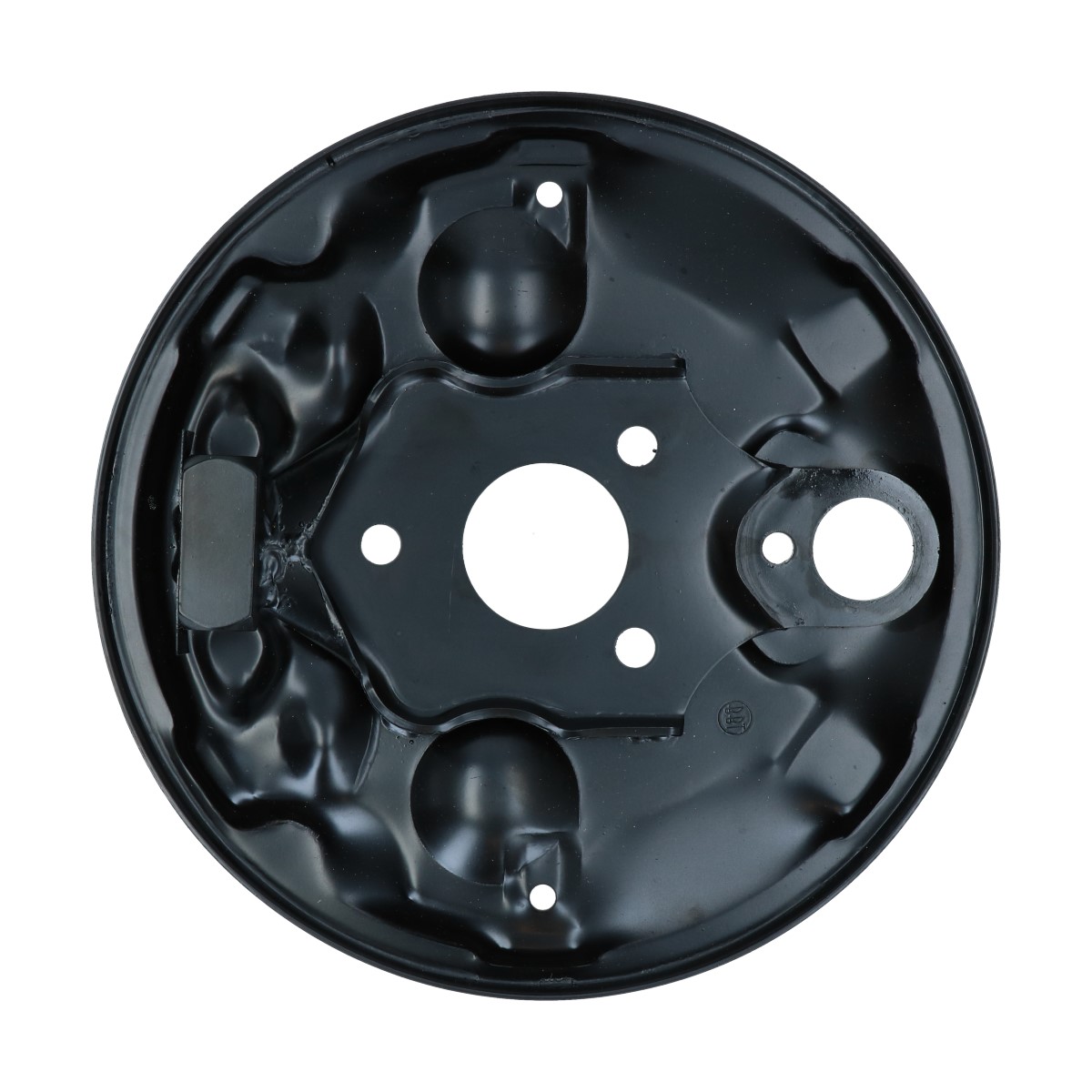

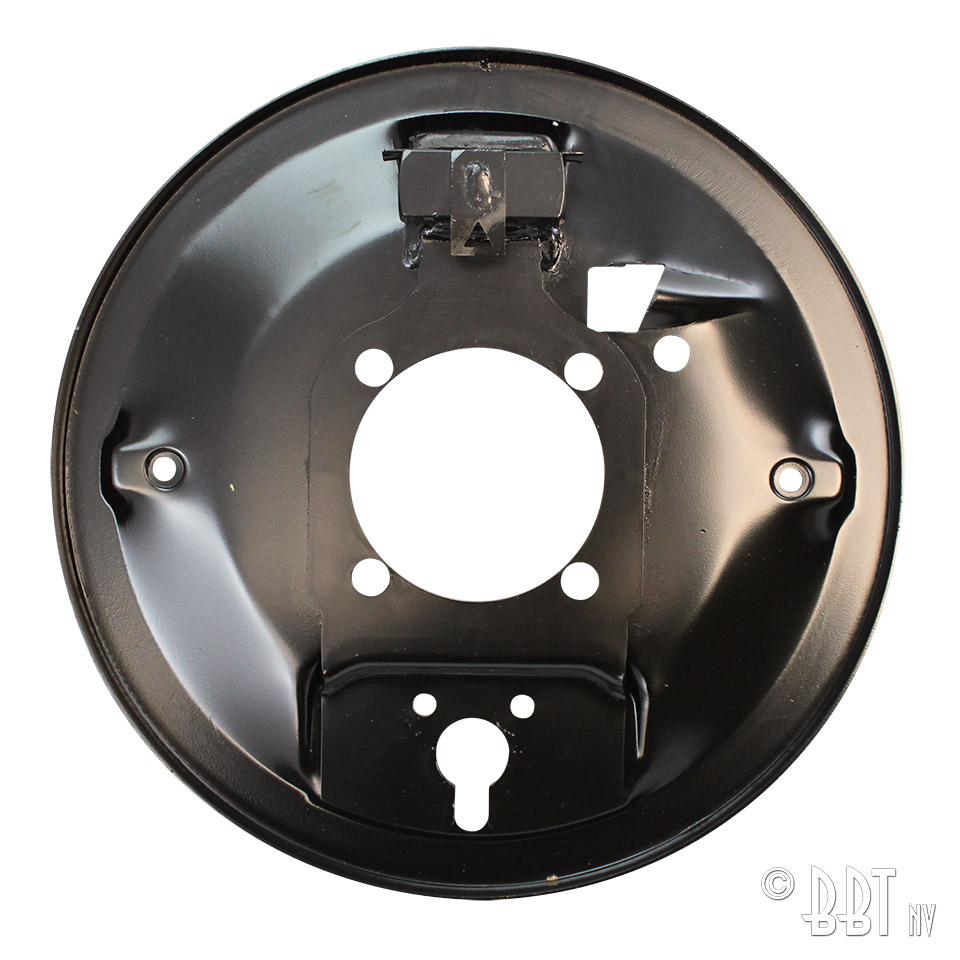

2.10 Backing plates
2.11 Accessories

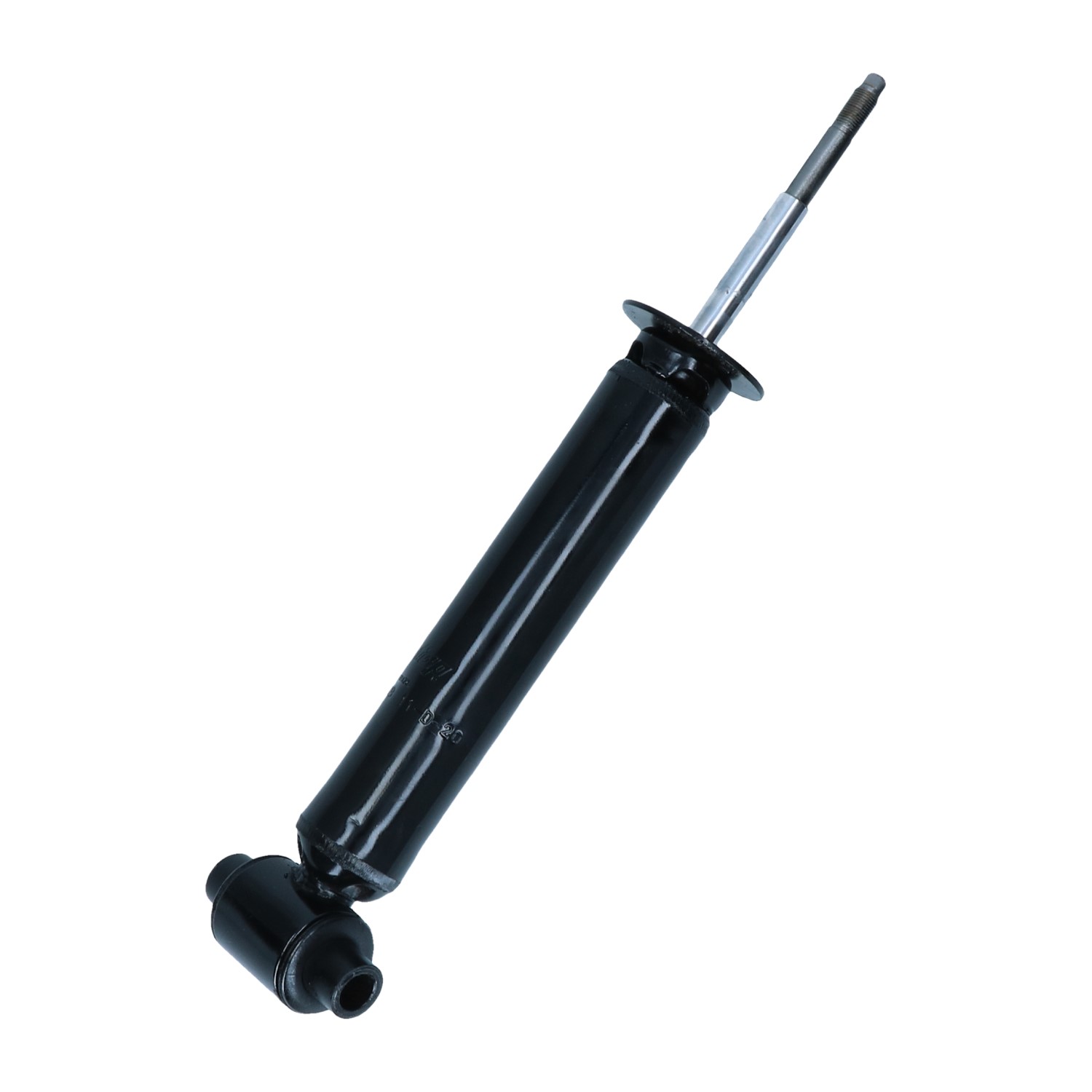

3. Shock absorbers & components
3.1 Oil shocks
3.2 Gas shocks
3.3 Parts
3.4 MC Pherson
3.5 Shocks with spring

1. Cables & hardware

1.1 Accelerator cables

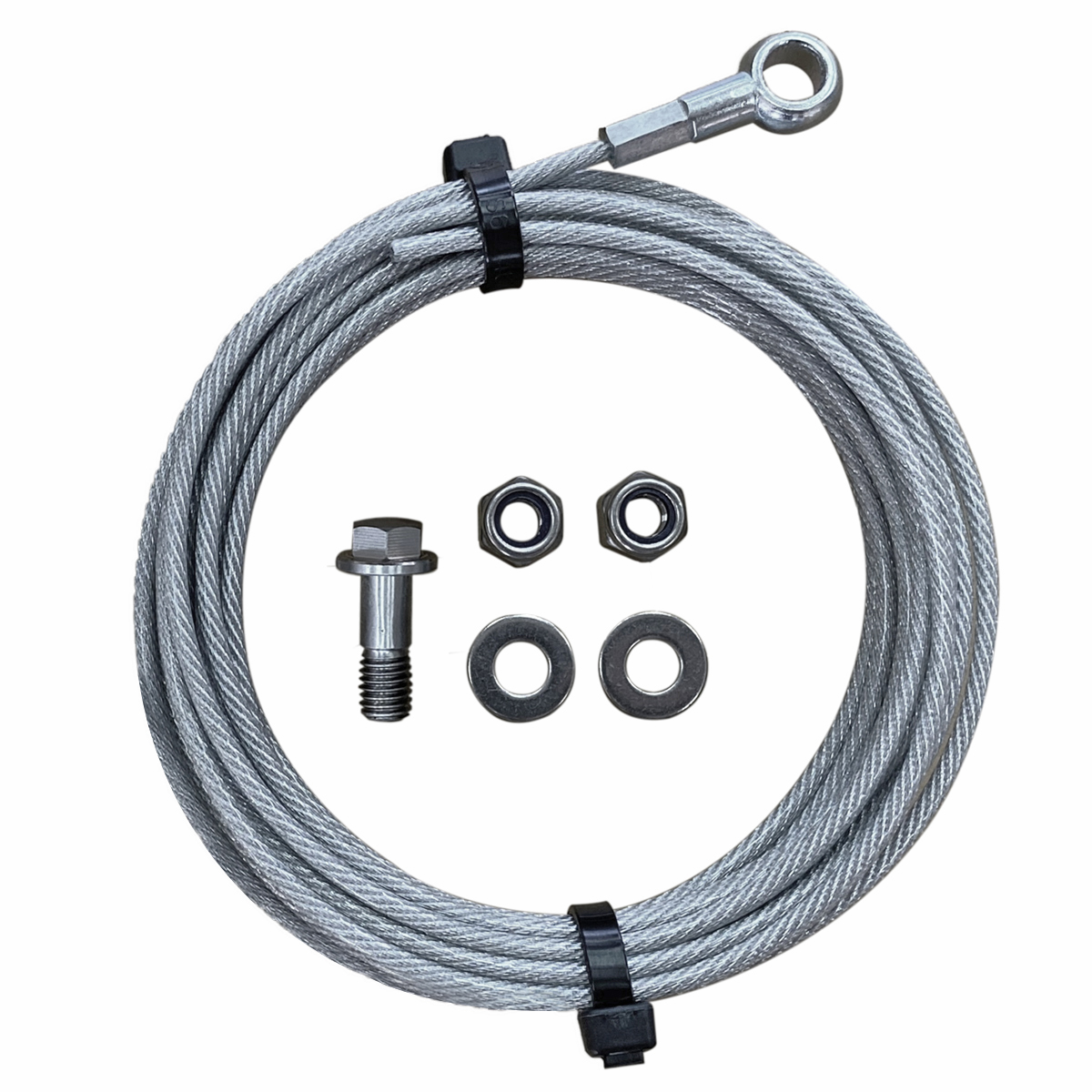

CODE:
0260-001
OEM:
MODEL:
Beetle 07/57-
Karmann Ghia 07/57-
Type 3 10/64-
Type 181
Accelerator cable HD Rally
CODE:
0910
OEM:
111 721 555J
MODEL:
2650 mm
Beetle 08/71-
Karmann Ghia 08/71-
Type 3
Accelerator cable
CODE:
0910-005
OEM:
111 721 555
MODEL:
2660 mm
Beetle -10/52
Accelerator cable
CODE:
0910-01
OEM:
111 721 555C
MODEL:
2650 mm
Beetle, Karmann Ghia 08/57-12/65
Accelerator cable (LHD)
CODE:
0910-02
OEM:
114 721 555
MODEL:
2615 mm
Beetle , Karmann Ghia 08/60-12/65
Accelerator cable (RHD)
CODE:
0910-03
OEM:
111 721 555E
MODEL:
2627 mm
Beetle 12/65-07/71
Beetle 1302
Karmann Ghia 12/65-07/71
Accelerator cable (LHD)
CODE:
0910-04
OEM:
MODEL:
2715 mm
Beetle, Karmann Ghia
Accelerator cable, extra long
CODE:
0910-05
OEM:
114 721 555A
MODEL:
2635 mm
Beetle 12/65-07/71
Beetle 1302
Karmann Ghia 12/65-07/71
Accelerator cable (RHD)
CODE:
0910-06
OEM:
111 721 555A
MODEL:
2630 mm
Beetle 11/52-07/57
Karmann Ghia 08/57-07/60
Accelerator cable
CODE:
0910-500
OEM:
131 721 551
MODEL:
Beetle 11/65-07/67
Karmann Ghia 11/65-07/67
Tube accelerator cable
CODE:
0910-510
OEM:
113 721 551
MODEL:
Beetle 08/67-07/71 & 12/75-
Karmann Ghia 08/67-07/71 & 12/75-
Tube accelerator cable
CODE:
0910-520
OEM:
181 721 551
MODEL:
Beetle 08/71-12/75
Karmann Ghia 08/71-12/75
Type 181 -07/71
Bowden tube accelerator cable
CODE:
0910-530
OEM:
311 721 551A
MODEL:
Type 3
Tube accelerator cable
CODE:
0910-540
OEM:
181 721 551A
MODEL:
Type 181 08/71-
Bowden tube accelerator cable
CODE:
0912
OEM:
133 721 555B
MODEL:
Beetle  1303 USA injection

Accelerator cable, injection (USA)
CODE:
0913
OEM:
311 721 555G
MODEL:
2665 mm
Type3 08/65-

Accelerator cable for double intake and double carburation
CODE:
0913-01
OEM:
311 721 555
MODEL:
2530 mm
Type3 -10/64

Accelerator cable for single carburation
CODE:
0915
OEM:
211 721 555C
MODEL:
3576 mm
Bus 10/64-08/67
Accelerator cable (LHD/RHD)
CODE:
0915-01
OEM:
211 721 555D
MODEL:
3670 mm
Bus 08/67-10/68
Accelerator cable (LHD)
CODE:
0915-02
OEM:
211 721 555G
MODEL:
3680 mm
Bus 10/68-07/71
Accelerator cable (LHD)
CODE:
0915-05
OEM:
211 721 555R
MODEL:
3668 mm
Bus Type1 08/72-07/79
Bus Type4 08/72-07/75
Accelerator cable (LHD)
CODE:
0915-07
OEM:
214 721 555D
MODEL:
3420 mm
Bus Type1 08/69-07/72
Bus Type4 08/71-07/72
Accelerator cable (RHD)
CODE:
0915-08
OEM:
211 721 555AA
MODEL:
3458 mm
Bus 08/75-07/79
Accelerator cable, injection (LHD)

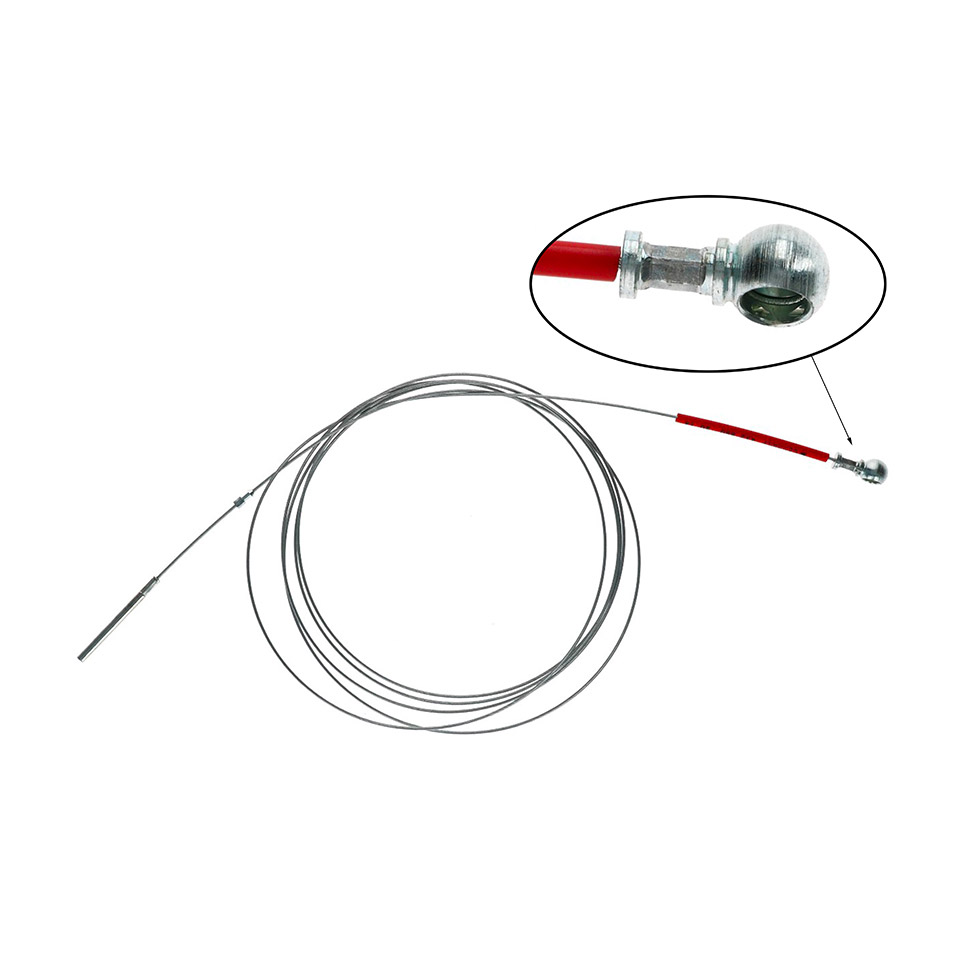

CODE:
0915-085
OEM:
211 723 555
MODEL:
Bus 08/75-07/79
Accelerator cable, automatic
CODE:
0915-09
OEM:
211 721 555T
MODEL:
3655 mm
Bus Type4 08/75-07/79
Accelerator cable, 2.0l twin carburation (LHD)
CODE:
0915-10
OEM:
211 721 555J
MODEL:
3668 mm
Bus 08/71-07/72
Accelerator cable (LHD)
CODE:
0915-12
OEM:
211 721 555A
MODEL:
3564 mm
Bus -03/55 RHD
Bus 01/55-10/64 RHD/LHD
Accelerator cable (LHD/RHD)
CODE:
0915-15
OEM:
214 721 555B
MODEL:
3470 mm
Bus 08/67-07/69
Accelerator cable (RHD)
CODE:
0915-16
OEM:
214 721 555P
MODEL:
3620 mm
Bus Type1 08/72-02/76
Accelerator cable (RHD)
CODE:
0915-17
OEM:
214 721 555AC
MODEL:
3780 mm
Bus Type1 02/76-07/79
Accelerator cable (RHD)
CODE:
0915-18
OEM:
214 721 555M
MODEL:
3605 mm
Bus Type4 08/72-02/76
Accelerator cable (RHD)
CODE:
0915-19
OEM:
214 721 555AD
MODEL:
3765 mm
Bus Type4 02/76-07/79
Accelerator cable (RHD)
CODE:
0915-200
OEM:
251 721 555
MODEL:
Bus 05/79-07/82 (CT/CZ/CV)
Accelerator cable
CODE:
0915-202
OEM:
251 721 555B
MODEL:
Bus 2000cc 05/79-09/82
Accelerator cable
CODE:
0915-204
OEM:
251 721 555Q
MODEL:
Bus 08/82-89 (DF/EY/GW/DH)
Accelerator cable
CODE:
0915-206
OEM:
251 721 555R
MODEL:
Bus 1900cc 08/82-07/85 (DG)
Accelerator cable
CODE:
0915-300
OEM:
251 721 555C
MODEL:
Bus D -07/82 (CS)
Accelerator cable
CODE:
0915-302
OEM:
251 721 555S/T
MODEL:
Bus D/TD 08/82-08/92 (JX/CS/KY)
Accelerator cable

1.2 Clutch cables

CODE:
0900
OEM:
111 721 335C
MODEL:
2281mm
Beetle, Karmann Ghia 08/71-03/74
Clutch cable
CODE:
0900-01
OEM:
111 721 335
MODEL:
2267 mm
Beetle -07/60
Clutch cable
CODE:
0900-02
OEM:
111 721 335A
MODEL:
2250 mm
Beetle, Karmann Ghia 08/60-07/61
Clutch cable, not for 30 hp - 36 SAE HP
CODE:
0900-03
OEM:
113 721 335
MODEL:
2258 mm
Beetle, Karmann Ghia 02/63-01/66
Clutch cable, not for 30 hp - 36 SAE HP
CODE:
0900-04
OEM:
113 721 335A
MODEL:
2260 mm
Beetle, Karmann Ghia 02/66-07/71
Clutch cable
CODE:
0902
OEM:
111 721 335E
MODEL:
2270 mm
Beetle 04/74-
Clutch cable
CODE:
0903
OEM:
311 721 335A
MODEL:
2333 mm
Type 3 02/65-
Clutch cable, left/right hand drive
CODE:
0903-01
OEM:
311 721 335
MODEL:
2333 mm
Type 3 -01/65
Clutch cable, left/right hand drive
CODE:
0904
OEM:
211 721 335B
MODEL:
3116 mm
Bus LHD 04/55-06/59
Bus LHD 09/61-08/67
Bus RHD 06/59-09/61
Clutch cable, left/right hand drive
CODE:
0904-01
OEM:
211 721 335C
MODEL:


3110 mm
Bus 06/59-09/61
Clutch cable, left hand drive, LHD
CODE:
0904-02
OEM:
211 721 335E
MODEL:
3200 mm
Bus 08/67-07/71
Clutch cable, left hand drive, LHD
CODE:
0904-03
OEM:
211 721 335G
MODEL:
3196 mm
Bus 08/71-07/73
Clutch cable, left hand drive, LHD
CODE:
0904-05
OEM:
211 721 335J
MODEL:
3215 mm
Bus LHD 08/73-07/79
Bus RHD 08/71-07/79
Clutch cable, left/right hand drive
CODE:
0904-08
OEM:
251 721 335
MODEL:
3855mm
Bus 05/79-08/82
Clutch cable, left hand drive, LHD, mechanical clutch
CODE:
0904-09
OEM:
214 721 335A
MODEL:
3135 mm
Bus 03/55-06/59
Bus 09/61-08/67
Clutch cable, right hand drive, RHD
CODE:
0904-10
OEM:
214 721 335D
MODEL:
3245 mm
Bus 08/67-07/69
Clutch cable, right hand drive, RHD
CODE:
0904-11
OEM:
214 721 335E
MODEL:
3254 mm
Bus 08/69-07/71
Clutch cable, right hand drive, RHD
CODE:
0909
OEM:
311 721 361
MODEL:
Beetle, Karmann Ghia -70 ch.111 3200 000
114 2398 011 - 114 2663 259
Bus -07/67
Type 3
Tube clutch cable 335 mm

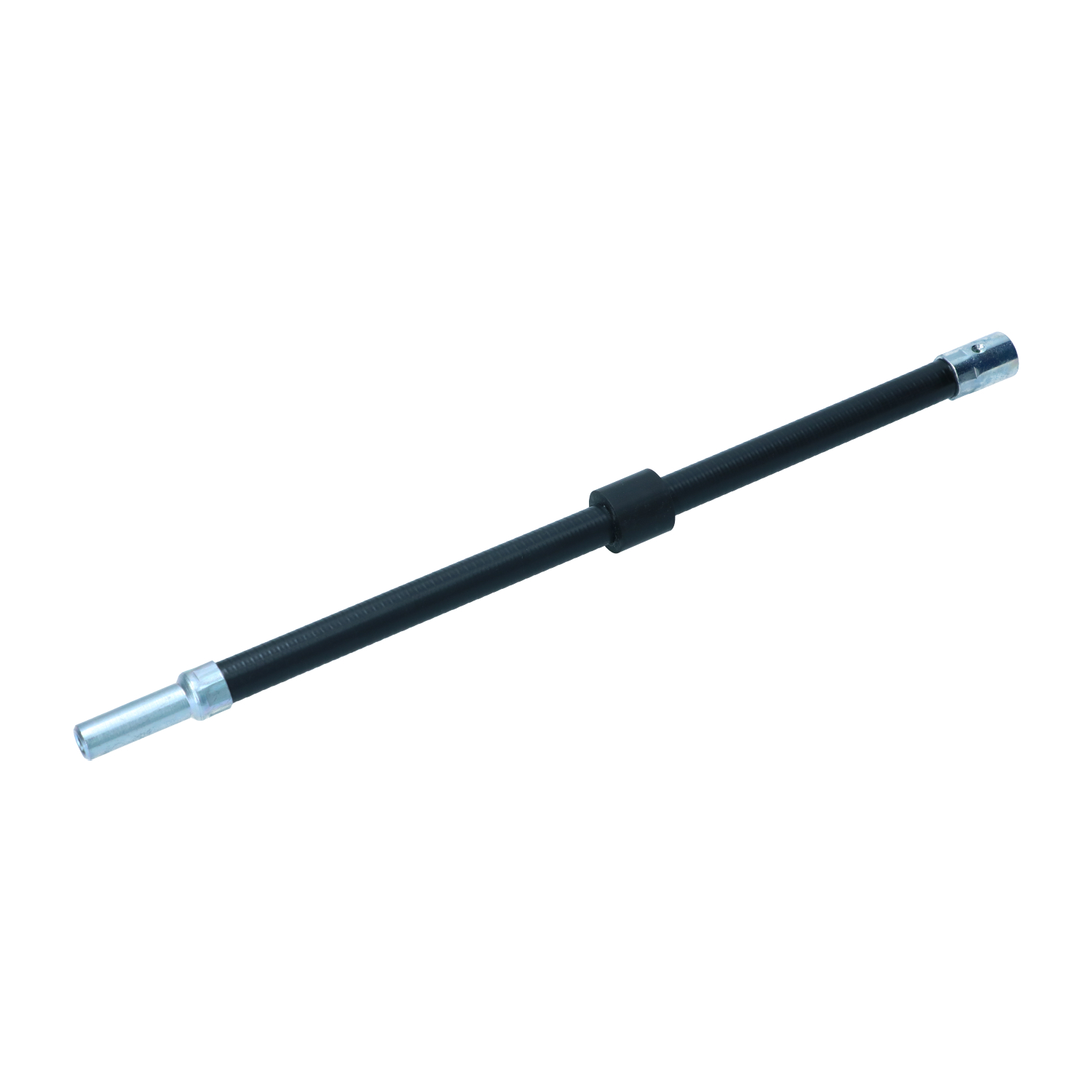

CODE:
0909-01
OEM:
211 721 361B
MODEL:
Beetle, Karmann Ghia ch.112 2000 001 - 114 2398 010 /70-74
Bus 08/67-07/79
Tube clutch cable 353 mm
CODE:

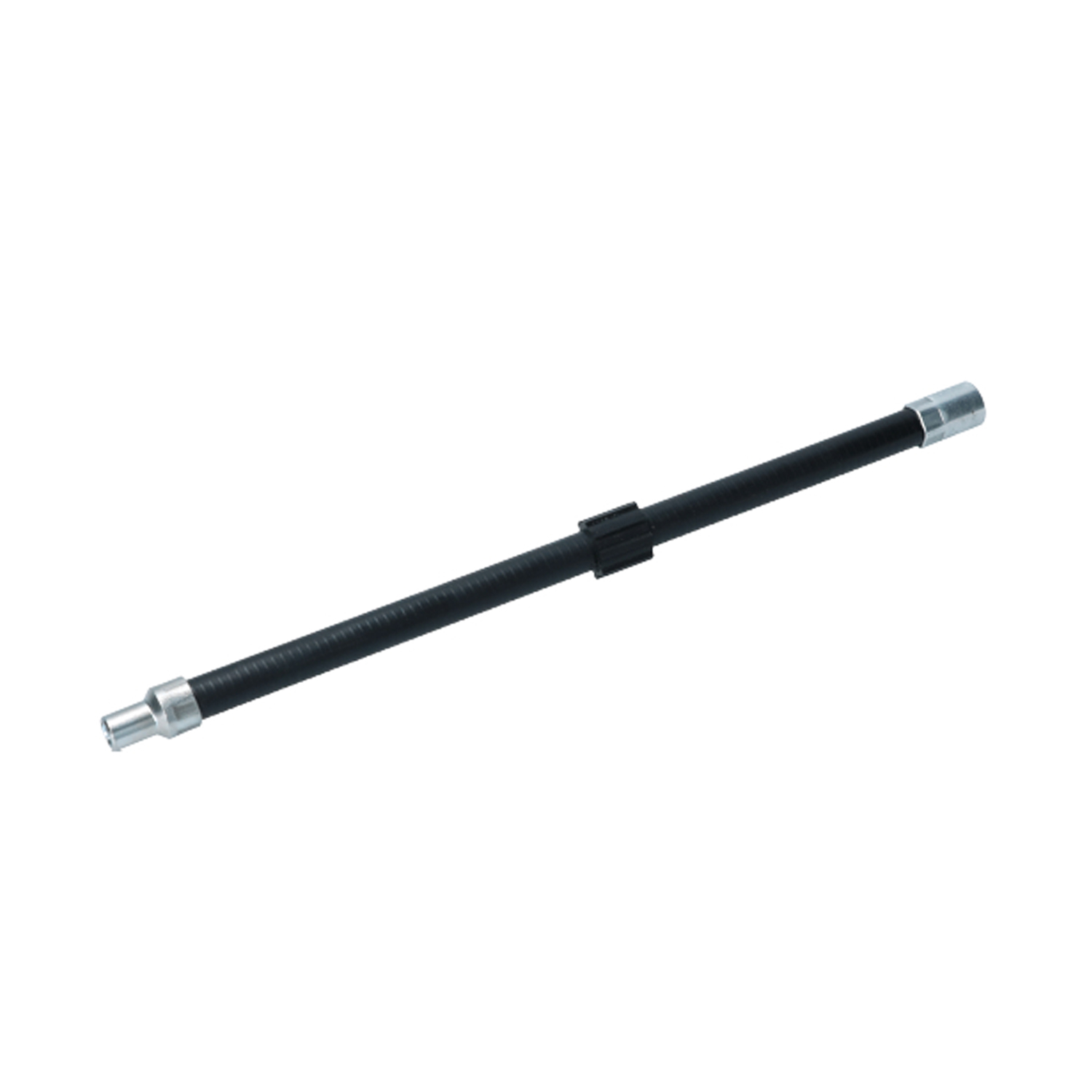

0909-02
OEM:
111 721 361E
MODEL:
Beetle 74- ch.114 2663 260-
Tube clutch cable 330 mm
CODE:
0909-100
OEM:
251 721 361B
MODEL:
Bus 05/79-07/82
Clutch cable tube

1.3 Cable hardware

CODE:
0905-200
OEM:
211 721 351
MODEL:
Bus - 07/71
Clip clutch cable
CODE:
0905-201
OEM:
211 721 351A
MODEL:
Bus 08/71-07/79
Clip clutch cable
CODE:
0907
OEM:
131 721 349
MODEL:
Beetle, Karmann Ghia, Bus
Type 3 04/65-
Type 181
Winged nut clutch cable
CODE:
0907-050
OEM:
111 721 349A
MODEL:
Beetle, Karmann Ghia, Bus, Type 3 -03/65
Nut clutch cable M7
CODE:
0908
OEM:
111 701 293C , 113 701 293C
MODEL:
Beetle, Karmann Ghia 02/58-10/70
Type 181 -10/70
Boot to chassis clutch/throttle tube
CODE:
0908-01
OEM:
111 701 293A
MODEL:
Beetle, Karmann Ghia -02/58
Chassis boot for clutch-, accelerator- and choke cable
CODE:
0908-020
OEM:
311 721 363
MODEL:
Beetle, Karmann Ghia/Type 181 11/70-, Bus 08/75-07/82, Type 3 08/67-

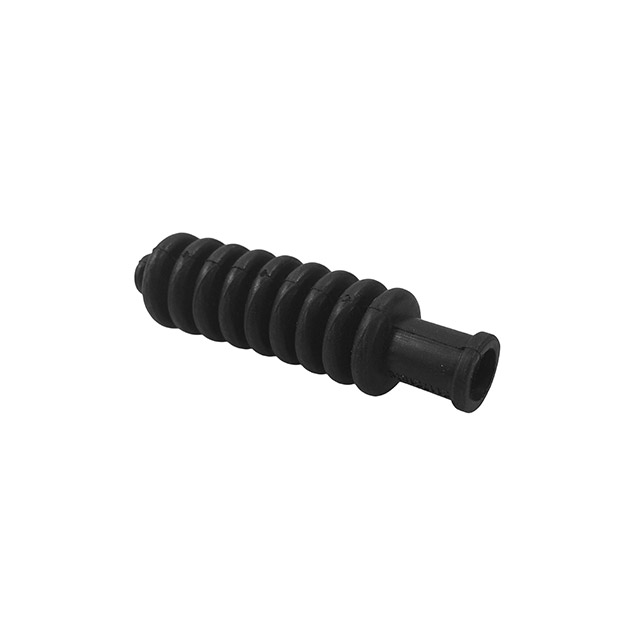

Boot between clutch sleeve and chassis
CODE:
0908-030
OEM:
311 721 579
MODEL:
Beetle, Karmann Ghia/Type 181 11/70-, Type 3 08/67-
Boot for accelerator cable sleeve
CODE:
0909-500
OEM:
113 301 165A
MODEL:
Beetle, Karmann Ghia 72-74
Support clutch cable tube
CODE:
0909-501
OEM:
113 301 165C
MODEL:
Beetle, Karmann Ghia 74-
Support clutch cable tube
CODE:
0917
OEM:
111 129 921
MODEL:
Nipple for accelerator cable
CODE:
0917-250
OEM:
311 129 958
MODEL:
Type 3
Nipple accelerator cable, double carburettor
CODE:
0918-1
OEM:
113 129 909
MODEL:
Accelerator cable clip 25/30 hp
CODE:
0919
OEM:
043 129 893
MODEL:
12/13/15-1600cc
Pipe for accelerator cable through fan shroud
CODE:
0919-1
OEM:
MODEL:
Pipe kit accelerator cable 25/30 hp
CODE:
0919-950
OEM:
211 721 579
MODEL:
Bus 08/69-07/76
Boot for accelerator cable
CODE:
0919-960
OEM:
211 721 579B
MODEL:
Bus 08/76-07/79, T3 05/79-08/92
Boot for accelerator cable
CODE:
0929-200
OEM:
111 711 349 (x2)
MODEL:
Beetle/ Karmann Ghia 12/64-
Type 3 02/65-
Bus 08/67-07/71 + 04/79-07/92
Type 181
Nuts for handbrake cable
CODE:
0929-210
OEM:
211 711 349 (x2)
MODEL:
Bus 08/71-07/79
Nuts for handbrake cable
CODE:
0929-240
OEM:
111 721 199+113 711 369+375+381+385/A+387+N125221
MODEL:
Beetle -07/55

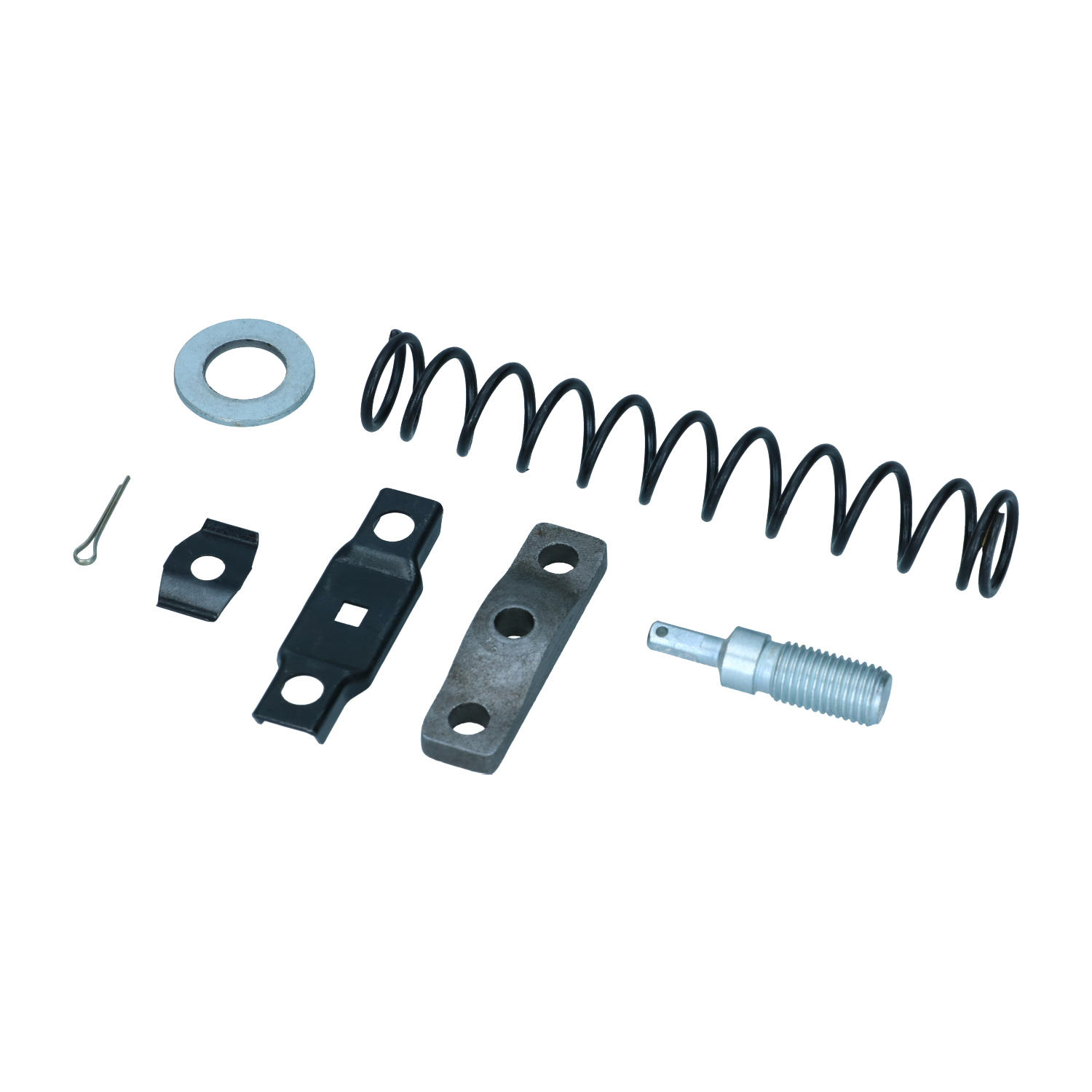

Mounting kit Handbrake cables
CODE:
0929-250
OEM:
111 711 331
MODEL:
Beetle, Karmann Ghia
Type 3 08/64-, Type 181

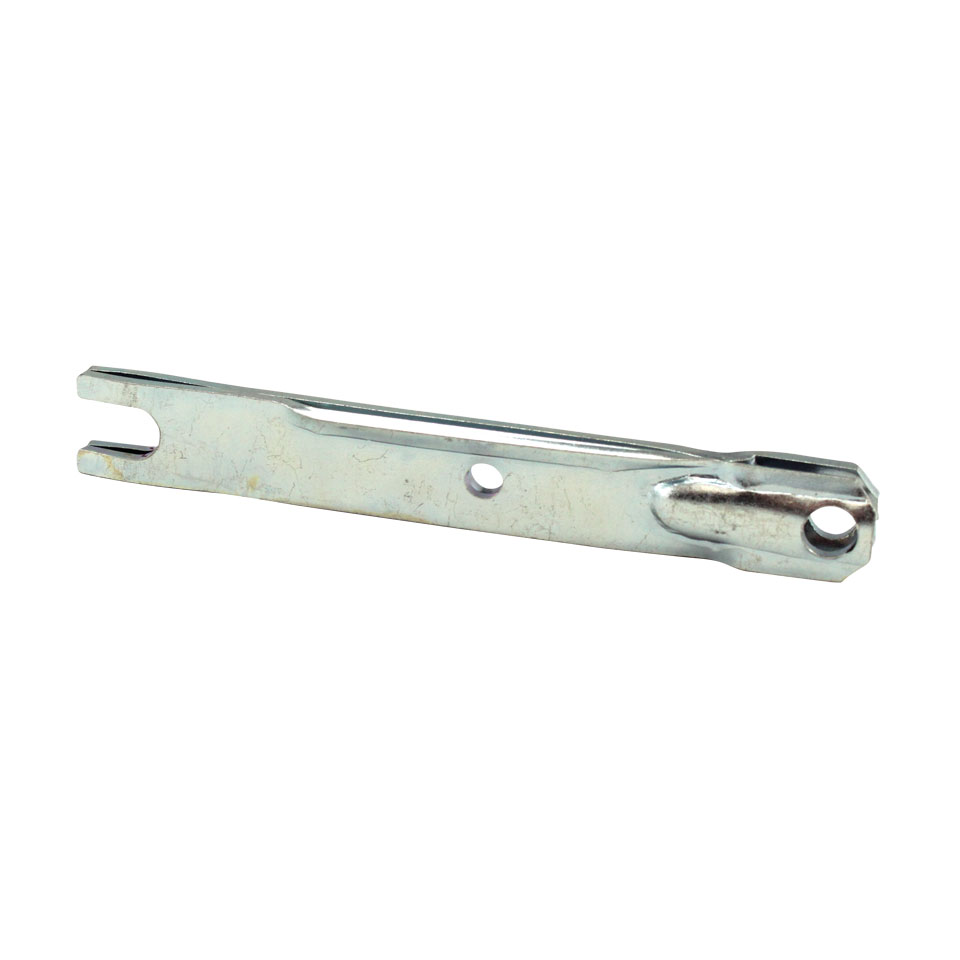

Handbrake compensator bow
CODE:
0950
OEM:
MODEL:
Cable shortening kit

1.4 Heater cables & hardware

CODE:

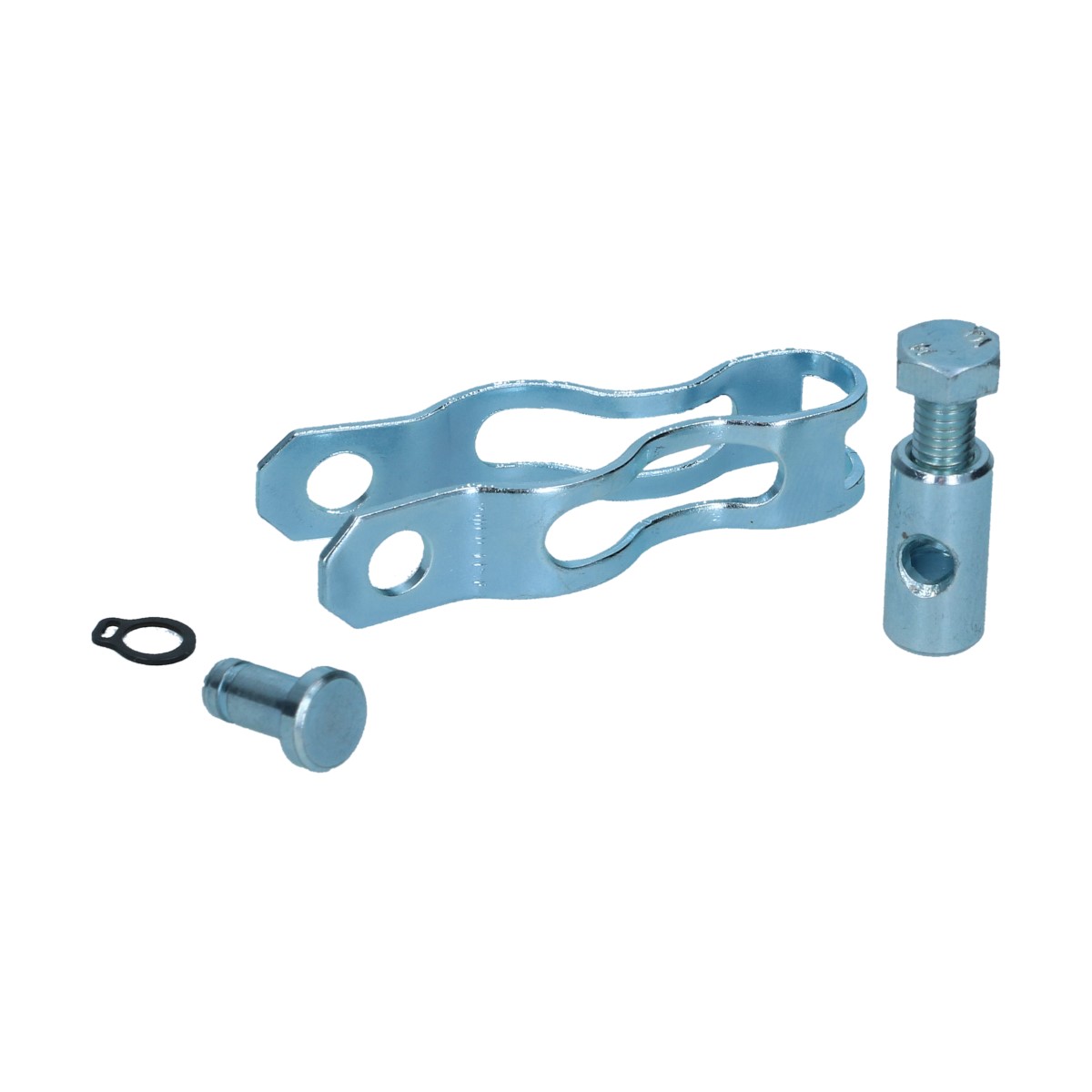

0918
OEM:
111 298 101A
MODEL:
Beetle
Bus
Type 4 17/1800cc
Mounting kit for heater cable to exchanger
CODE:
0930
OEM:
133 711 791
MODEL:
Beetle, Karmann Ghia 08/64-

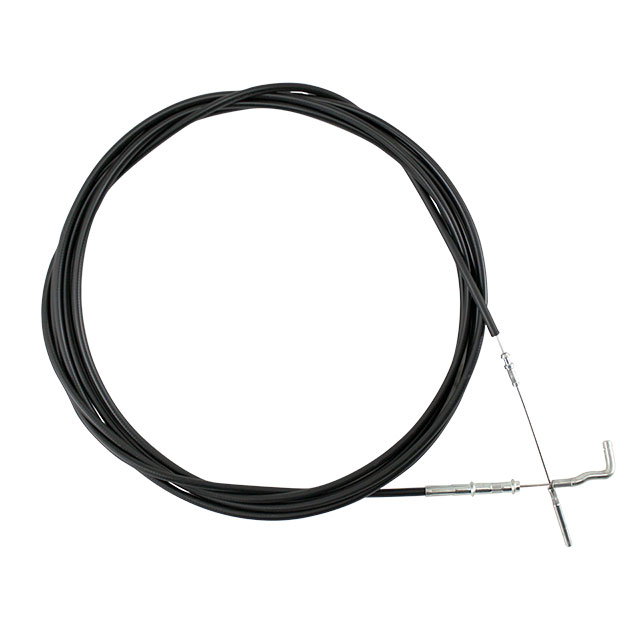

Heater cable
CODE:
0930-030
OEM:
111 711 629
MODEL:
2843 mm, Beetle 49-51, (ch 162 444 - 243 730)
Heater cable
CODE:
0930-040
OEM:
111 711 629A
MODEL:
2688 mm, Beetle 51-07/55, (ch 243 731 - 929 745)
Heater cable
CODE:
0930-05
OEM:
111 711 629B
MODEL:
3670 mm, Beetle, Karmann Ghia 04/55-10/62, (ch 929 746 – 5 199 979)

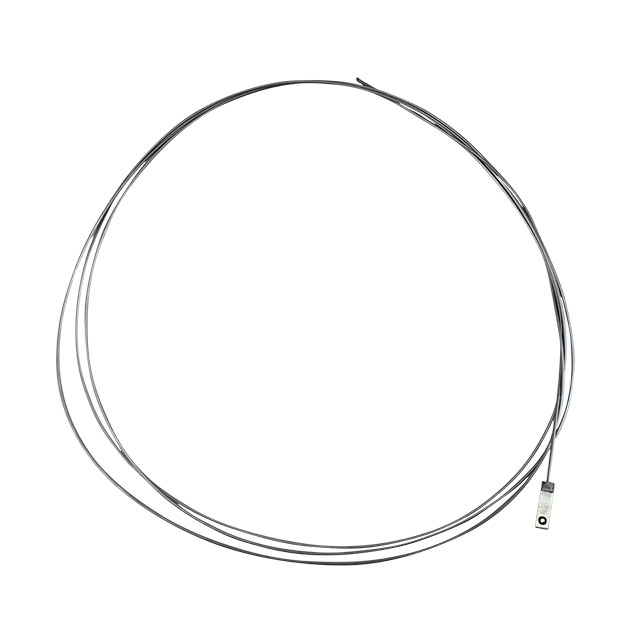

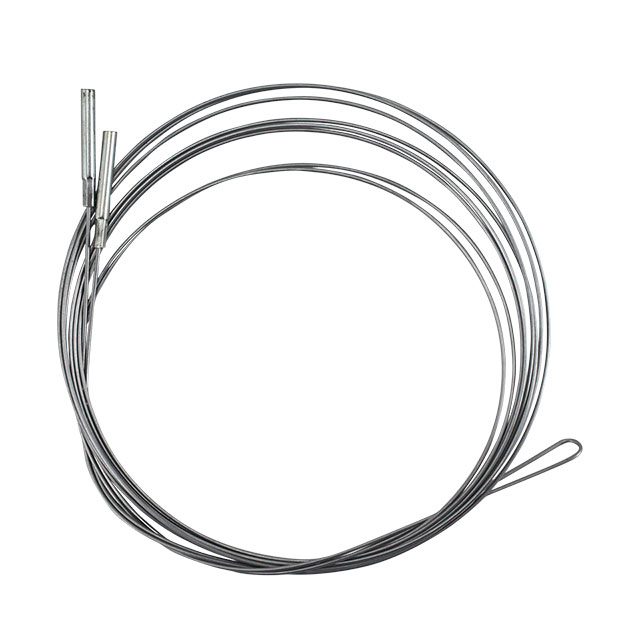

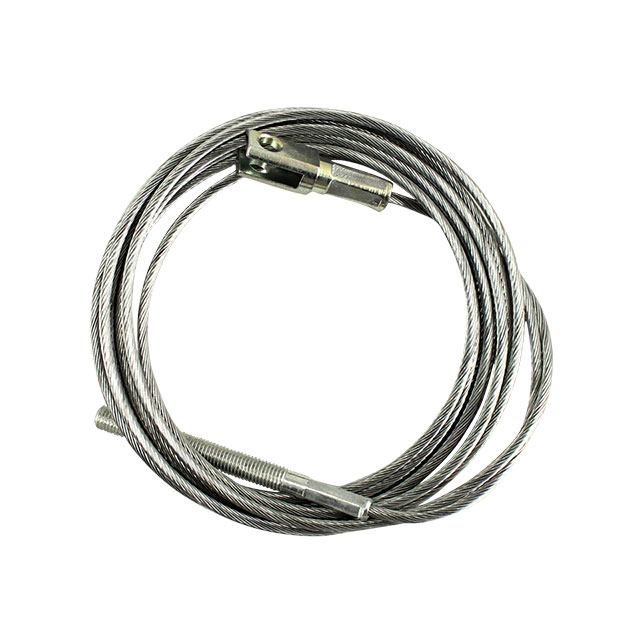

Heater cable
CODE:
0930-06
OEM:
111 711 629E
MODEL:
3665 mm, Beetle, Karmann Ghia 11/62-07/64, (ch 5 199 980 – 6 502 399)
Heater cable
CODE:
0930-070
OEM:
111 711 717A
MODEL:
1440/1459 mm, Beetle 08/64-07/72, (ch 115 000 001 - 112 3200 000)
Heater cable
CODE:
0930-080
OEM:
111 711 717D
MODEL:
1368/1378 mm, Beetle 08/72-, (ch 113 2000 001-)
Heater cable
CODE:
0930-100
OEM:
133 711 717
MODEL:
1375-1389 mm, 1303 08/72-07/74
Type 3 08/66-
Heater cable
CODE:
0930-110
OEM:
133 711 717B
MODEL:
1342 mm, 1303 08/74-
Heater cable
CODE:
0930-150
OEM:
111 711 713
MODEL:
998 mm, Beetle 08/64-07/72 (ch 115 000 001 - 112 3200 000)
Heater cable under rear seat

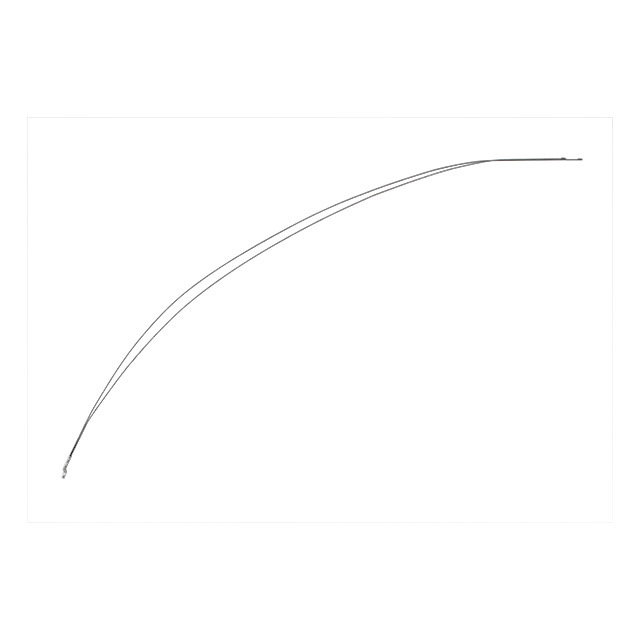

CODE:
0930-160
OEM:
111 711 713A
MODEL:
905 mm
Beetle 08/72- (ch 113 2000 001-)
Heater cable under rear seat
CODE:
0931-020
OEM:
211 711 629B
MODEL:
Bus 03/55-07/67
Heater cable
CODE:
0931-025
OEM:
211 711 629C
MODEL:
5750 mm
Bus 03/55-07/67
Heater cable for walkthrough
CODE:
0931-100
OEM:
211 711 629F
MODEL:
4115 mm
Bus 1600cc, 08/67-07/71
Heater cable, left, LHD
CODE:
0931-110
OEM:
211 711 629K
MODEL:
4113 mm
Bus 1600cc, 08/71-07/72
Heater cable, left, LHD
CODE:
0931-115
OEM:
211 711 629L
MODEL:
4126 mm
Bus 17/18/2000 cc 08/71-07/72
Heater cable, left, LHD
CODE:
0931-120
OEM:
211 711 629M
MODEL:
4115 mm
Bus 1600cc, 08/72-07/79
Heater cable, left, LHD
CODE:
0931-125
OEM:
211 711 629N
MODEL:
4100 mm
Bus 17/18/2000 cc 08/72-07/79
Heater cable, left, LHD
CODE:
0931-150
OEM:
211 711 630A
MODEL:
Bus  1600cc
LHD 08/67-10/68
RHD 08/67 -07/71
Heater cable, right
CODE:
0931-160
OEM:
211 711 630C
MODEL:
4320 mm
Bus 1600 cc, 11/68-07/71
Heater cable, right, LHD
CODE:
0931-170
OEM:
211 711 630K
MODEL:
4316mm
Bus 1600cc 08/71-07/72
Heater cable right, LHD
CODE:
0931-175
OEM:
211 711 630L
MODEL:
4313 mm
Bus 17/18/2000 cc 08/71-07/72
Heater cable, right, LHD
CODE:
0931-180
OEM:
211 711 630M
MODEL:
4310 mm
Bus 1600 cc 08/72-07/79
Heater cable, right, LHD
CODE:
0931-185
OEM:
211 711 630N
MODEL:
4225 mm
Bus 17/18/2000 cc 08/72-07/79
Heater cable, right, LHD
CODE:
0931-215
OEM:
214 711 629L
MODEL:
4330 mm
Bus 17/18/2000 cc 08/71-07/72
Heater cable, left, RHD
CODE:
0931-220
OEM:
214 711 629M
MODEL:
4330 mm
Bus 1600 cc 08/72-07/79
Heater cable, left, RHD
CODE:
0931-225
OEM:
214 711 629N
MODEL:
4280 mm
Bus 17/18/2000 cc 08/72-07/79
Heater cable, left, RHD
CODE:
0931-270
OEM:
214 711 630K
MODEL:
4383 mm
Bus 1600 cc 08/71-07/72
Heater cable, right, RHD
CODE:
0931-280
OEM:
214 711 630M
MODEL:
4465 mm
Bus 1600 cc 08/72-07/79
Heater cable, right, RHD
CODE:
0931-285
OEM:
214 711 630M
MODEL:
4465 mm
Bus 17/18/2000 cc 08/72-07/79
Heater cable, right, RHD
CODE:
0931-550
OEM:
211 711 647A
MODEL:
461 mm
Bus 08/72-07/79
Center dash heater cable, LHD
CODE:
0932-150
OEM:
251 711 630
MODEL:
4245mm
Bus 05/79-12/82
Heater cable, right (CU-CV), LHD
CODE:
0932-160
OEM:
251 711 630A
MODEL:
4205 mm
Bus 05/79-12/82
Heater cable right (CT, CZ), LHD
CODE:
0932-200
OEM:
252 711 629
MODEL:
4565 mm
Bus 05/79-12/82
Heater cable left (CU, CV), RHD
CODE:
0932-250
OEM:
252 711 630
MODEL:
4670 mm
Bus 05/79-12/82
Heater cable right(CU, CV), RHD
CODE:
0932-260
OEM:
252 711 630A
MODEL:
4640 mm,
Bus 05/79-12/82
Heater cable,right (CT, CZ), RHD
CODE:
0932-510
OEM:
251 265 473A
MODEL:
920 mm, Bus 08/82-, CU, CV (ch 24-D-000-001 -)
Center dash heater cable, LHD

1.5 Brake & handbrake cables

CODE:
0920
OEM:
113 609 721M
MODEL:
Beetle, Karmann Ghia 08/67-07/72

Handbrake cableswing axle rear suspension
CODE:
0920-01
OEM:
113 609 721B
MODEL:
Beetle, Karmann Ghia 08/55-07/57
Handbrake cable
CODE:
0920-020
OEM:
113 609 721
MODEL:
Beetle -07/55
Handbrake cablelever shocks
CODE:
0920-025
OEM:
113 609 721A
MODEL:
Beetle -07/55
Handbrake cabletelescopic shocks
CODE:
0920-03
OEM:
113 609 721F
MODEL:
Beetle, Karmann Ghia 08/57-12/64
Handbrake cable
CODE:
0920-05
OEM:
133 609 721A
MODEL:
Beetle 1303 02/75-
Handbrake cableSwedish model
CODE:
0920-06
OEM:
113 609 721L
MODEL:
Beetle, Karmann Ghia 12/64-07/67
Handbrake cableswing axle rear suspension
CODE:
0920-07
OEM:
113 609 721J
MODEL:
Beetle, Karmann Ghia 08/64-07/72
Handbrake cableIRS
CODE:
0921
OEM:
133 609 721
MODEL:
Beetle, Karmann Ghia 08/72-
Type 181 03/73-
Handbrake cable
CODE:
0922
OEM:
133 609 721A
MODEL:
Beetle 12/1300 08/72-07/74
Beetle 1303 08/72-02/75
Handbrake cableSwedish model
CODE:
0922-080
OEM:
211 609 701B
MODEL:
Bus 03/55-09/59
Handbrake cable
CODE:
0922-090
OEM:
211 609 701C
MODEL:
Bus 09/59-04/60
Handbrake cable
CODE:
0923-00
OEM:
211 609 701E
MODEL:
Bus 05/60-08/63
Handbrake cable
CODE:
0923-01
OEM:
211 609 701F
MODEL:
Bus 08/63-08/67
Bus Italy -02/65
Handbrake cable
CODE:
0923-02
OEM:
211 609 701H
MODEL:
Bus 08/67-04/68
Handbrake cable
CODE:
0923-04
OEM:
211 609 701N
MODEL:
Bus 04/68-07/79
Handbrake cableItalian specifications
CODE:
0923-07
OEM:
211 609 701L
MODEL:
Bus 04/68-07/71
Bus 08/69-07/71 Servo
Handbrake cable
CODE:
0923-09
OEM:
211 609 701T
MODEL:
Bus 08/71-07/79

Handbrake cable
CODE:
0923-100
OEM:
211 607 701 1
MODEL:
Bus Brasil -01/78
Handbrake cable
CODE:
0923-110
OEM:
211 607 701 2
MODEL:
Bus Brasil 02/78-04/82
Handbrake cable
CODE:

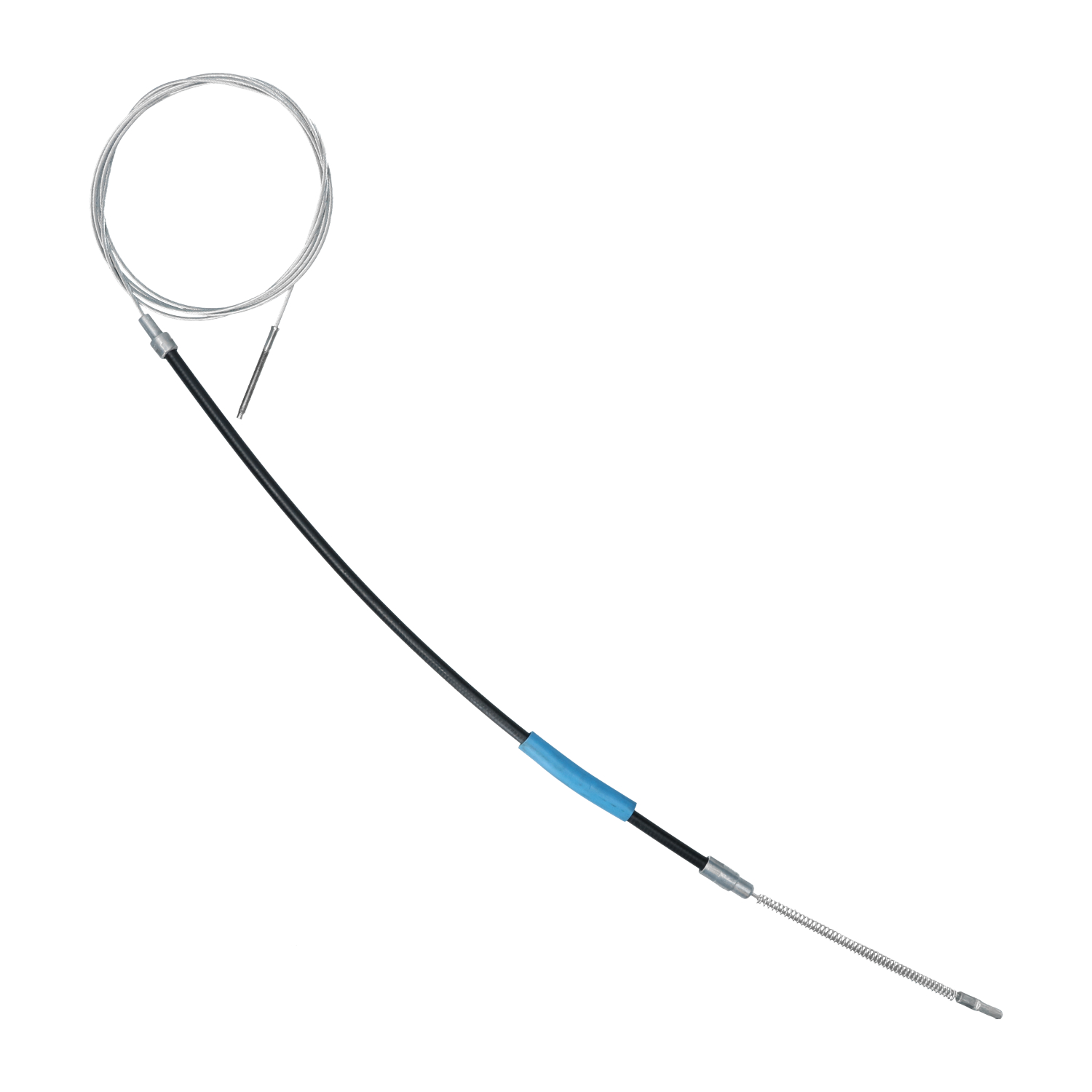

0923-120
OEM:
211 607 701 7
MODEL:
Bus Brasil 05/82-95
Handbrake cable
CODE:
0924
OEM:
311 609 721
MODEL:
Type 3 -03/65
Handbrake cable
CODE:
0924-01
OEM:
311 609 721D
MODEL:
Type 3 03/65-07/67
Handbrake cable
CODE:
0924-02
OEM:
311 609 721C
MODEL:
Type 3 03/67-
Handbrake cable
CODE:
0925
OEM:
111 605 701
MODEL:
Beetle -04/62
Brake cable front, Standard
CODE:
0925-01
OEM:
111 605 721
MODEL:
Bus -04/62
Type82
Brake cable rear, Standard
CODE:
0926-000
OEM:
113 501 595 / 251 501 595A
MODEL:
Beetle, Karmann Ghia
Type 3
Type 181
Bus 05/79-08/92
Handbrake cable clip trailingarm 'IRS'
CODE:
0926-100
OEM:
251 609 719B
MODEL:
Bus 05/79-07/92

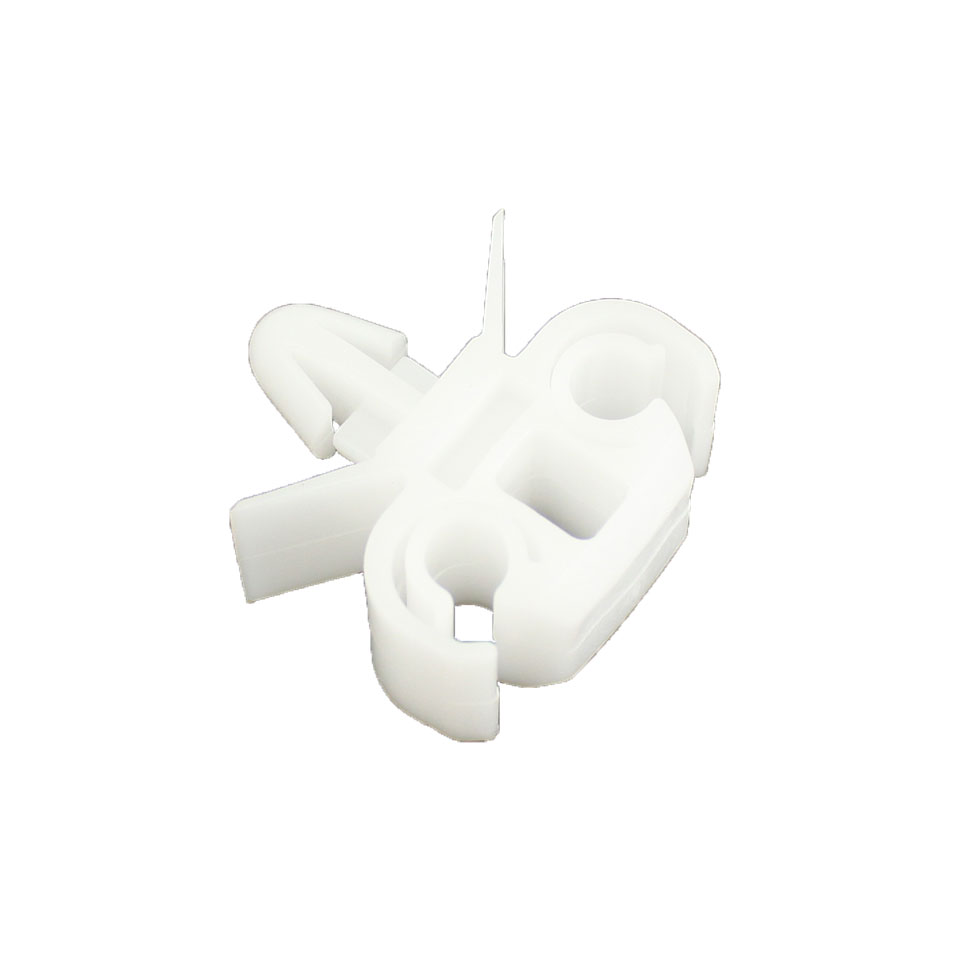

Handbrake cable clip
CODE:
0927-200
OEM:
251 609 701
MODEL:
Bus 05/79-07/92
Handbrake cable rear L/R
CODE:
0927-202
OEM:
251 609 701D
MODEL:
Bus 02/85-08/90
Handbrake cable rear Left14 inch syncro
CODE:
0927-203
OEM:
251 609 702
MODEL:
Bus 02/85-08/90
Handbrake cable rear right14 inch syncro
CODE:
0927-205
OEM:
251 609 701E
MODEL:
Bus 02/85-07/92
Handbrake cable rear Left16 inch syncro
CODE:
0927-206
OEM:
251 609 701F
MODEL:
Bus 02/85-07/92
Handbrake cable rear right16 inch syncro
CODE:
0927-300
OEM:
251 711 471D
MODEL:
Bus 05/79-07/92
Handbrake cable front

1.6 Fuel flap cables & handles

CODE:
0933-000
OEM:
141 809 939
MODEL:
Karmann Ghia 08/68-
Cable gas door

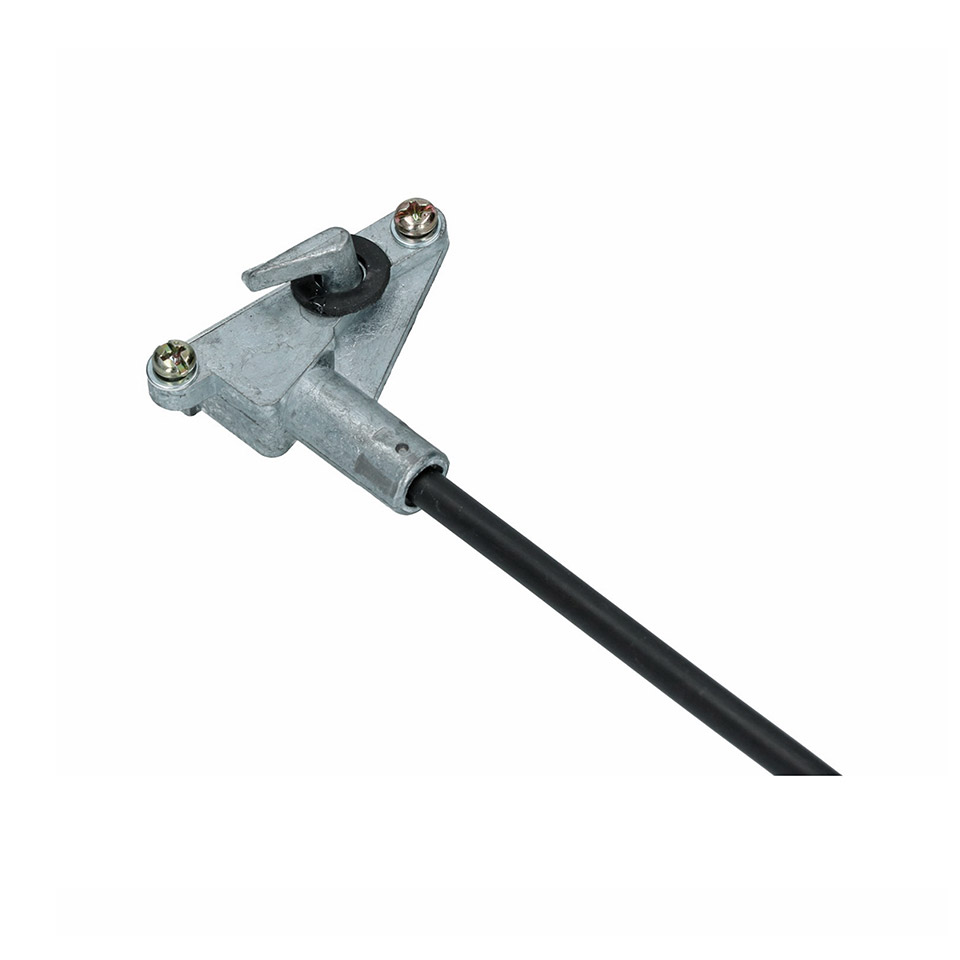

CODE:
0933-100
OEM:
311 821 241
MODEL:
Type 3 08/68-
Cable gas door
CODE:
0934
OEM:
113 809 939
MODEL:
1302
Cable fuel flap
CODE:
0935
OEM:
111 809 939A
MODEL:
Beetle 08/68-07/70
Cable fuel flap
CODE:
0936
OEM:
111 809 939C
MODEL:
Beetle 08/70-
Cable fuel flap
CODE:
0937
OEM:
111 823 461
MODEL:
Beetle 08/68-07/70
Karmann Ghia 08/68-
Type181

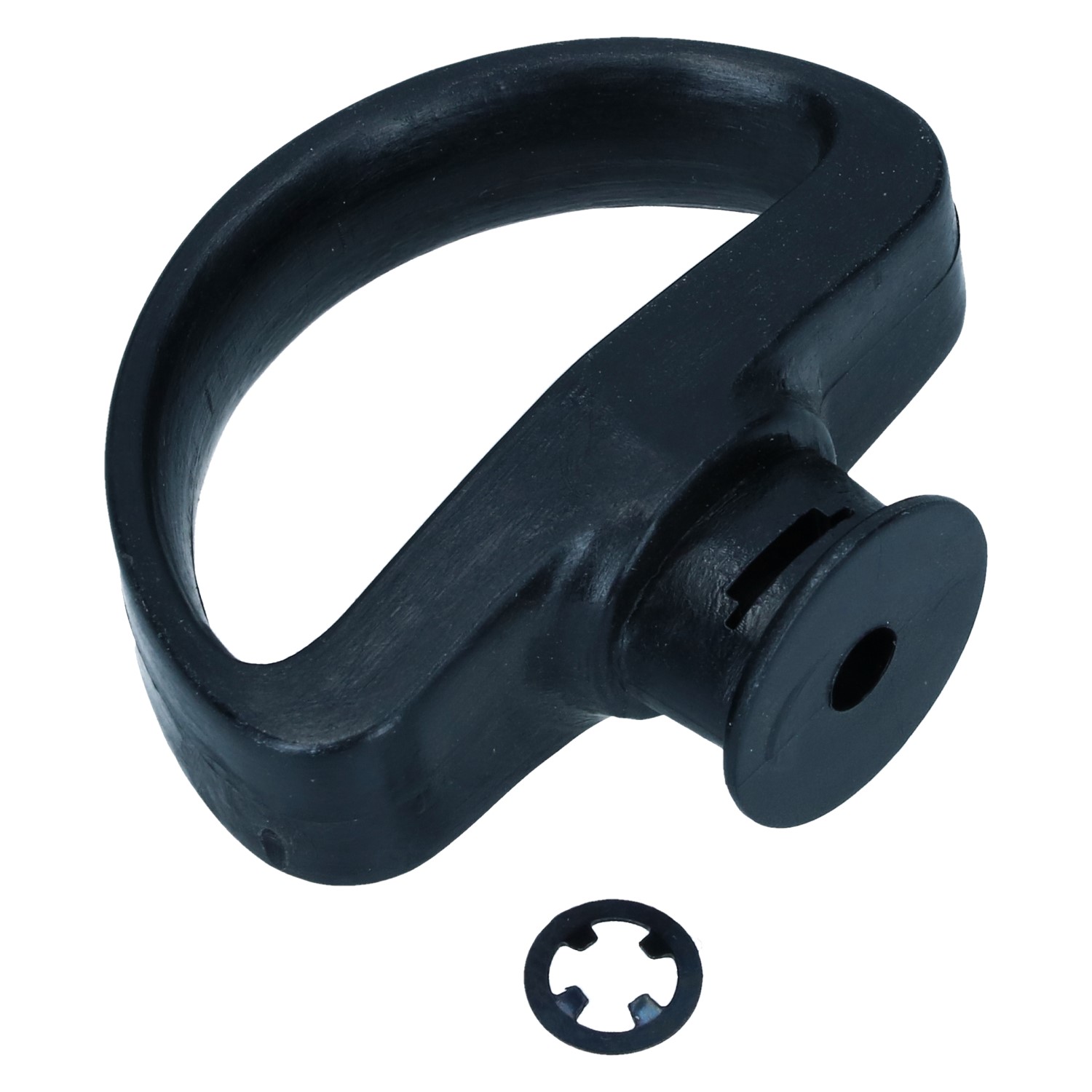

Handle fuel flap cable
CODE:
0938
OEM:
111 823 461A
MODEL:
Beetle 1302 08/70-07/72
Handle fuel flap cable

1.7 Choke & cold start cables

CODE:
0939-900
OEM:
MODEL:
Beetle 09/52

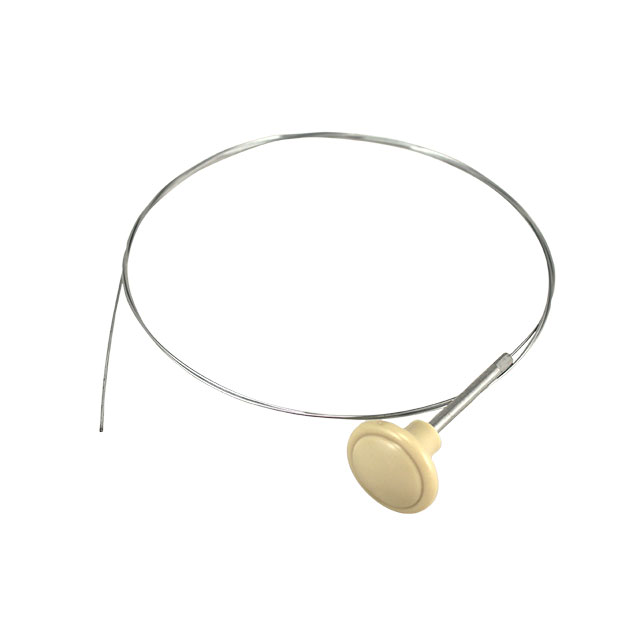

Chokecable bakelite ivory
CODE:

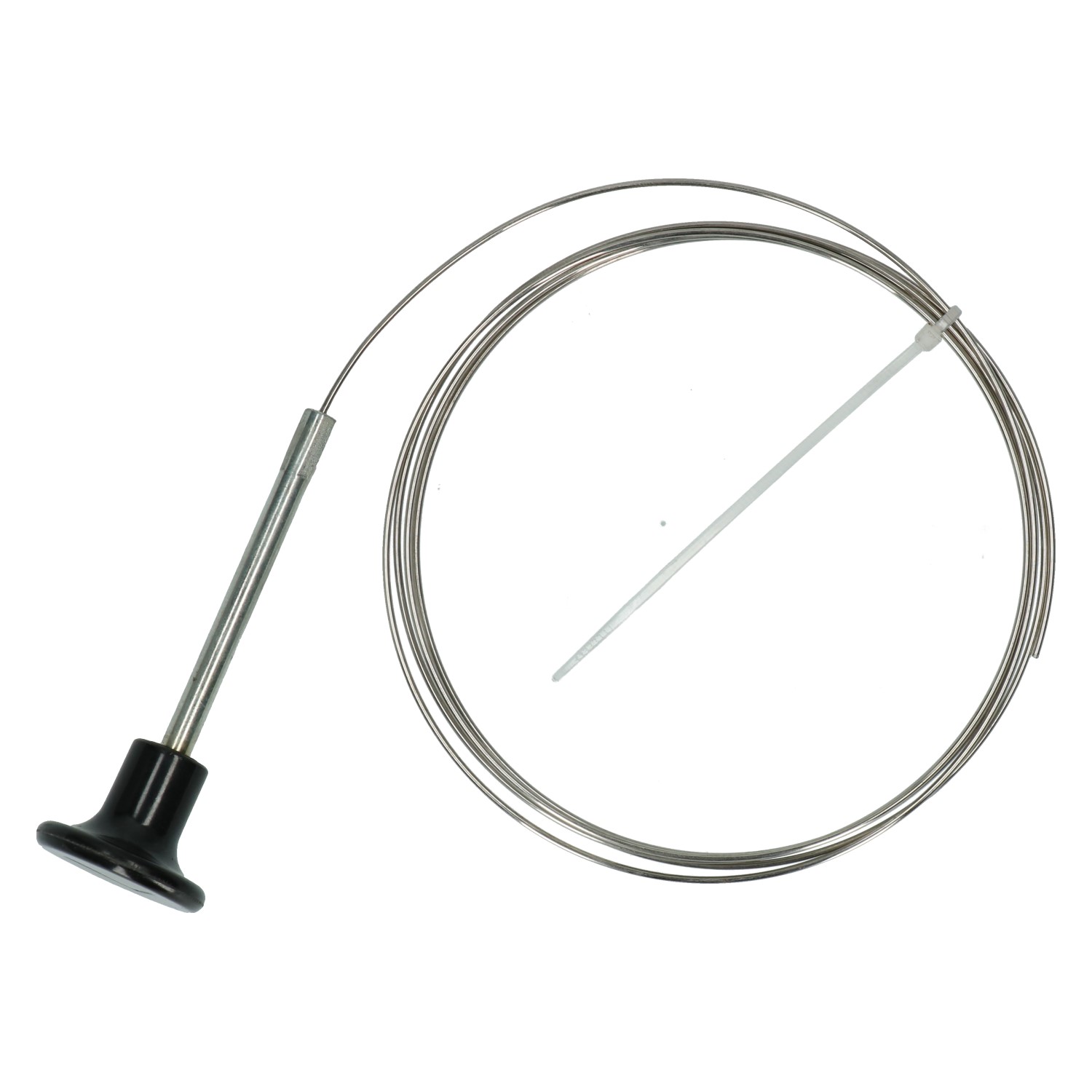

0939-905
OEM:
MODEL:
Beetle 09/52
Chokecable bakelite black
CODE:
0940
OEM:
111 711 501A
MODEL:
Beetle 08/52-
Bus -07/67
Chokecable / Fuel tap cable
CODE:
0941-000
OEM:
141 711 501
MODEL:
Type Karmann Ghia -07/60
Chokecable, 4180 mm - 30hp Up to chassis number - 3 192 506
CODE:
0945-250
OEM:
251 711 503
MODEL:
Bus 01/85-
Starter handle for D and TD
CODE:
0945-300
OEM:
251 711 501E
MODEL:
Bus 01/85-
Starter cable for D and TD

1.8 Bonnet & engine lid cables

CODE:
0960
OEM:
113 823 531
MODEL:
Beetle, Karmann Ghia -07/67
Front hood cable
CODE:
0960-001
OEM:
113 823 531
MODEL:
Beetle, Karmann Ghia -07/67
Front hood cable, ivory knob
CODE:
0960-005
OEM:
MODEL:
Beetle -09/52

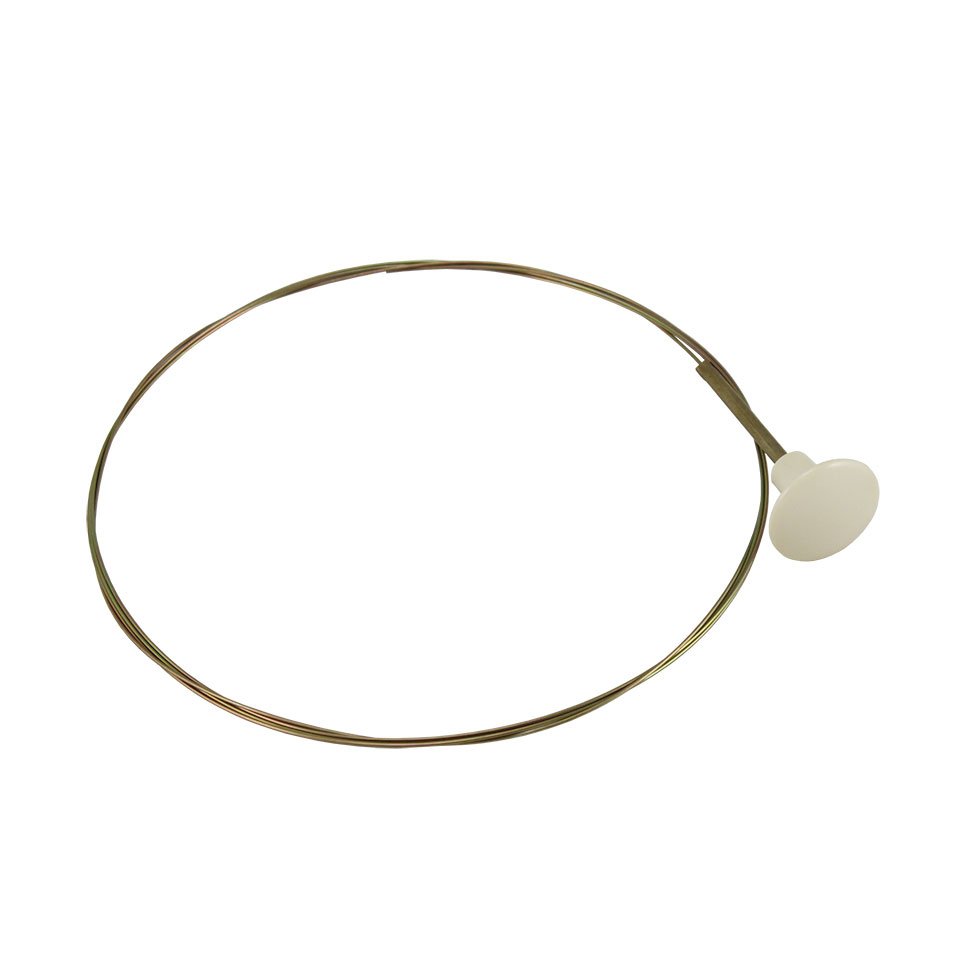

Front hood innercable bakelite ivory
CODE:
0960-006
OEM:
MODEL:
Beetle -09/52
Front hood innercable bakelite black
CODE:
0961
OEM:
113 823 531G
MODEL:
1940 mm, Beetle, Karmann Ghia 08/68-
Front hood cable
CODE:
0962
OEM:
113 823 553
MODEL:
1775 mm
Beetle 08/70-
Karmann Ghia 08/70 (shorten to 1390mm)
Front hood cable tube
CODE:
0962-250
OEM:
143 827 545
MODEL:
Karmann Ghia 08/66
Enginelid outer cable
CODE:
0963-250
OEM:
143 827 531B
MODEL:
Karmann Ghia
Enginelid inner cableblack knob
CODE:
0963-260
OEM:
143 827 531B
MODEL:
Karmann Ghia
Enginelid inner cableivory knob

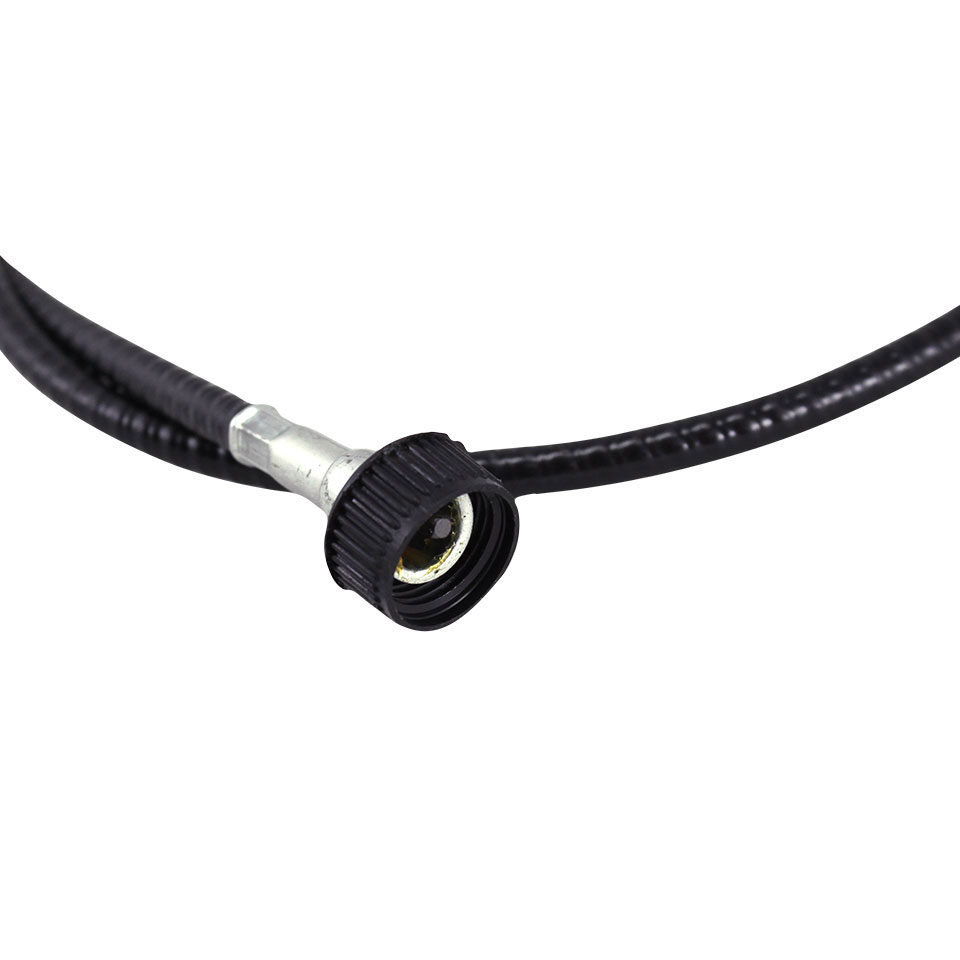

1.9 Speedometer cables

CODE:
2694
OEM:
N12 434 2
MODEL:
Speedometer cable clip
CODE:
2695
OEM:
111 957 801J
MODEL:
Beetle 1210 mm, 08/57-07/65 (ch. 1 600 440 - 115 999 000)
Speedometer cable
CODE:
2696
OEM:
113 957 801A
MODEL:
Beetle 1302/03, 1410 mm
Speedometer cable
CODE:
2696-01
OEM:
113 957 809 + 133 957 809A
MODEL:
Beetle 1302/03 Cabrio - USA 1976- , 355, 1050 mm
Speedometer cable
CODE:
2697
OEM:
211 957 801F
MODEL:
2460 mm Bus 08/67-07/79
Speedometer cable
CODE:
2698
OEM:
211 957 801E
MODEL:
2070 mm Bus 04/55-07/67 (ch. 20 - 117 903 - 217 148 459)
Speedometer cable
CODE:
2699-000
OEM:
111 957 801G
MODEL:
Beetle -09/52
Porsche 365 A/B  LHD
Speedometer cable - TQ
CODE:
2699-01
OEM:
111 957 801H
MODEL:
1275 mm
Beetle 10/52-07/57 (ch. 1-397 023 - 1 600 439)
Karmann Ghia 08/66-07/71 (ch. 147 000 001 - 141 3200 000)
Type 181
Speedometer cable
CODE:
2699-02
OEM:
111 957 801J
MODEL:
Beetle 1235 mm, 08/57-07/65 (ch. 1 600 440 - 115 999 000)
Speedometer cable
CODE:
2699-03
OEM:
111 957 801K
MODEL:
Beetle 1195 mm, 08/65- (ch. 116 000 001-)
Type 181 RHD
Speedometer cable
CODE:
2699-04
OEM:
113 957 801A
MODEL:
Beetle 1302/03, 1390 mm
Speedometer cable
CODE:
2699-05
OEM:
141 957 801C
MODEL:
1167 mm, Karmann Ghia -07/66 (- ch. 146 1021 300)
Type 3
Speedometer cable Karmann Ghia -07/66 and all Type 3 models - TQ
CODE:
2699-055
OEM:
141 957 801D
MODEL:
Karmann Ghia 08/71-
Speedometer cable (TQ)
CODE:
2699-10
OEM:
211 957 801
MODEL:
2170 mm Bus -03/55 ( - ch. 20-117 902)
Speedometer cable
CODE:
2699-11
OEM:
211 957 801D
MODEL:
2070 mm Bus 04/55-07/67 (ch. 20 - 117 903 - 217 148 459)
Speedometer cable
CODE:
2699-12
OEM:
211 957 801F
MODEL:
2460 mm Bus 08/67-07/79
Speedometer cable
CODE:
2699-200
OEM:
251 957 803A
MODEL:
2245 mm Bus 05/79-06/81
Speedometer cable
CODE:
2699-201
OEM:
251 957 803E
MODEL:
2240 mm Bus 07/81-07/92
Speedometer cable
CODE:
2699-205
OEM:
251 957 809J
MODEL:
2470 mm Bus synchro
Speedometer cable
CODE:
2699-50
OEM:
112 957 801J
MODEL:
Beetle 1545 mm, 08/65- (ch. 116 000 001)-
Speedometer cable, RHD
CODE:
2699-51
OEM:
142 957 801C
MODEL:
1860 mm
Beetle 1302/03
Karmann Ghia -07/71
Speedometer cable, RHD
CODE:
2699-60
OEM:
214 957 801D
MODEL:
2330 mm Bus 04/55-07/67 (ch. 20 - 117 903 - 217 148 459)
Speedometer cable, RHD
CODE:
2699-61
OEM:
214 957 801H
MODEL:
2510 mm Bus 08/67-07/79
Speedometer cable, RHD

2. Brakes & parts

2.1 Master brake cylinders & hardware

CODE:
1200
OEM:
113 611 021C
MODEL:
Beetle, Karmann Ghia -07/65
Master brake cylinder 19 mm single circuit
CODE:
1200-1
OEM:
113 611 817
MODEL:
Beetle, Karmann Ghia -07/67

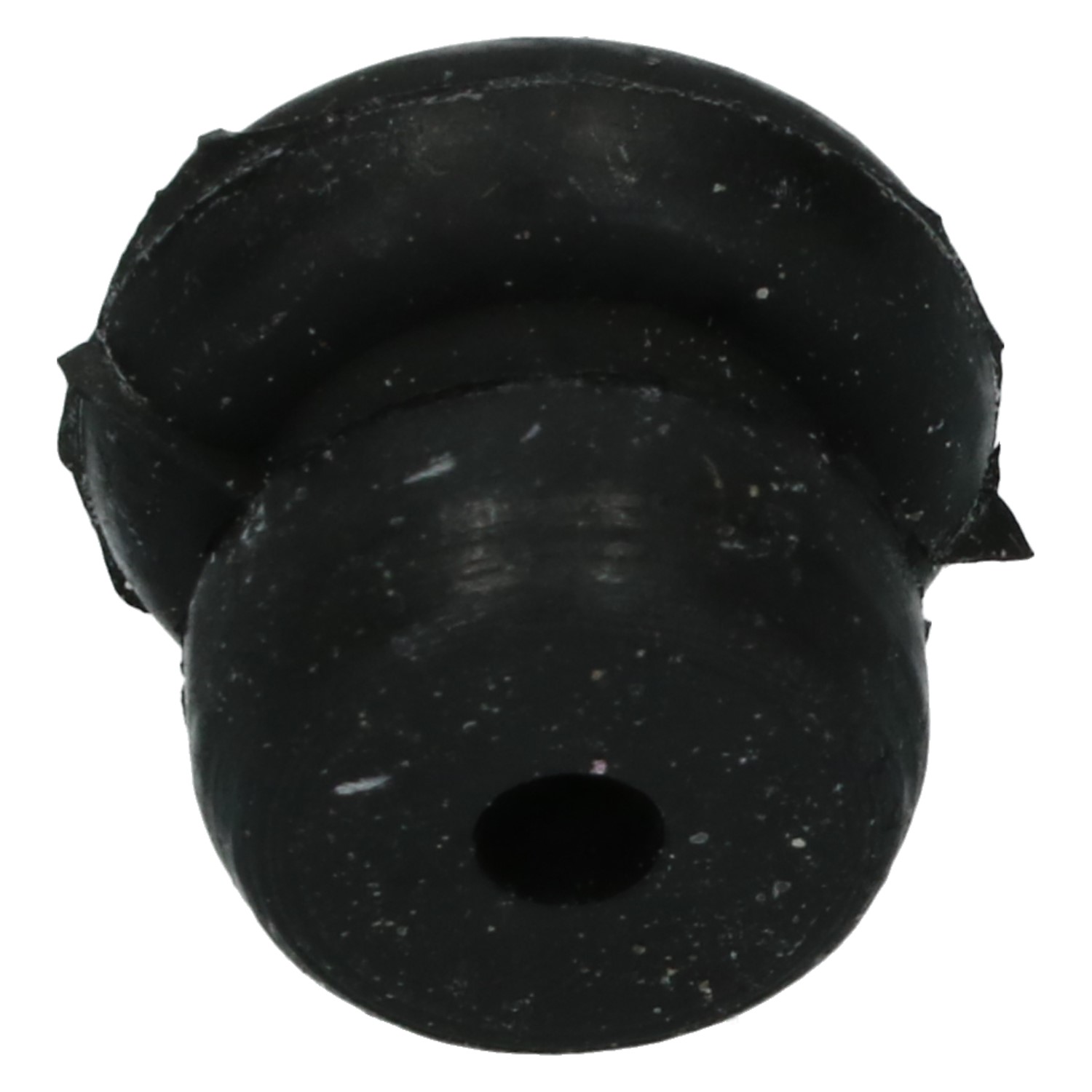

Seal on master cylinder
CODE:
1200-2
OEM:
113 611 021C
MODEL:
Beetle, Karmann Ghia -07/65
Master brake cylinder 19 mm single circuit, ATE
CODE:
1200-400
OEM:
113 611 195
MODEL:
Beetle
Karmann Ghia
Bus -07/66
Type 3
Type 181

Master cylinder dust cover
CODE:
1200-700
OEM:
113 611 829 x 2 + N103531 x 2 + N120082 x2
MODEL:
Beetle (not 1302/03)
Karmann Ghia
Type 181
Mountingkit mastercylinder
CODE:
1200-710
OEM:
113 611 829A x 2 + N103609 x 2 + N120082 x2
MODEL:
Beetle 1302/03
Mountingkit mastercylinder
CODE:
1200-80
OEM:
113 611 153C
MODEL:
Beetle, Karmann Ghia 08/71-
Master cylinder connection
CODE:
1200-81
OEM:
113 611 153
MODEL:
Beetle, Karmann Ghia 08/67-08/71
Master cylinder connection
CODE:
1200-9
OEM:
211 611 817A
MODEL:
Beetle, Karmann Ghia 08/67-07/71
Bus 08/67-07/79
Type 181
Type 3 (voorste), Type4
Seal on master cylinder
CODE:
1200-95
OEM:
113 611 817A, 357 611 817
MODEL:
Beetle 08/71-
Karmann Ghia 08/71-
Bus 04/79-07/92
Type 3 (back)
Type4
Seal on master cylinder
CODE:
1201
OEM:
113 611 023B
MODEL:
Beetle, Karmann Ghia 08/65-07/67
Master brake cylinder 17 mm single circuit
CODE:
1201-1
OEM:
113 611 023B
MODEL:
Beetle, Karmann Ghia 08/65-07/67
Master brake cylinder 17 mm single circuit, ATE
CODE:
1202-010
OEM:
113 611 015D
MODEL:
Beetle
Karmann Ghia 08/67-
Type 181
Mastercylinderdouble circuit
CODE:
1202-1
OEM:
113 611 015BD
MODEL:
Beetle
Karmann Ghia 08/67-
Type 181
Master brake cylinderdouble circuit, FTE
CODE:
1202-700
OEM:
7897483400327
MODEL:
Beetle Brasil 77-96
Brasilia 75-82
Mastercylinderdouble circuit, ATE
CODE:
1203
OEM:
113 611 015BH
MODEL:
1302/03
Master brake cylinder double circuit
CODE:
1203-1
OEM:
113 611 015BH
MODEL:
1302/03
Mastercylinder - 1302-1303 German
CODE:
1205
OEM:
211 611 011J
MODEL:
Bus -07/66
Master brake cylinder
CODE:
1205-101
OEM:
211 611 021AA
MODEL:
Bus 08/70-07/79
Master cylinder with servo
CODE:
1205-120
OEM:
251 611 021B
MODEL:
Bus
Master cylinder w.servo and w/o ABS
CODE:
1205-130
OEM:
251 611 021C
MODEL:
Bus
Master cylinder without servow/o ABS + inspectionlight
CODE:
1205-3
OEM:
211 611 021AE
MODEL:
Bus 08/70-07/79
Master cylinder without servo - German
CODE:
1205-4
OEM:
211 611 021Q
MODEL:
Bus 08/67-07/69
Master brake cylinderStart baywindow, without servo
CODE:
1205-5
OEM:
211 611 011Q
MODEL:
Bus 08/66-07/67
Master brake cylinderEnd splitwindow, without servo
CODE:
1206
OEM:
311 611 015K
MODEL:
Type 3 08/68-07/74
Master brake cylinder double circuit, ATE
CODE:
1206-1
OEM:
311 611 023
MODEL:
Type 3 -07/65
Master brake cylinder single circuit, ATE

2.2 Servo & parts

CODE:
1208-100
OEM:
211 611 833D
MODEL:
Bus 08/73-07/79
Bus 05/79-08/92
Grommet sleeve tube to servo hose
CODE:
1208-160
OEM:
211 611 805G
MODEL:
Bus 08/72-
Brake line reservoir to master cylinder (servo) 60cm
CODE:
1208-450
OEM:
211 611 905
MODEL:
Bus 08/70-12/73 (ch 211 2000 001 - 214 2110 465)
Brake booster
CODE:
1208-500
OEM:
211 612 103
MODEL:
Bus 01/74-07/79
Brake booster
CODE:
1208-600
OEM:
191 611 933
MODEL:
Bus 08/70-
Non returnvalve brake servo

2.3 Brake pipes, hoses & hardware

CODE:
1208-140
OEM:
211 611 805E
MODEL:
Bus 08/67-07/72
Brake line reservoir to master cylinder 81cm
CODE:
1208-150
OEM:
211 611 805G
MODEL:
Bus 08/71-07/79
Brake line from reservoir to master cylinder
CODE:
1208-170
OEM:
211 611 805H
MODEL:
Bus 08/72-07/79
Brake line reservoir to master cylinder (no servo) 15cm

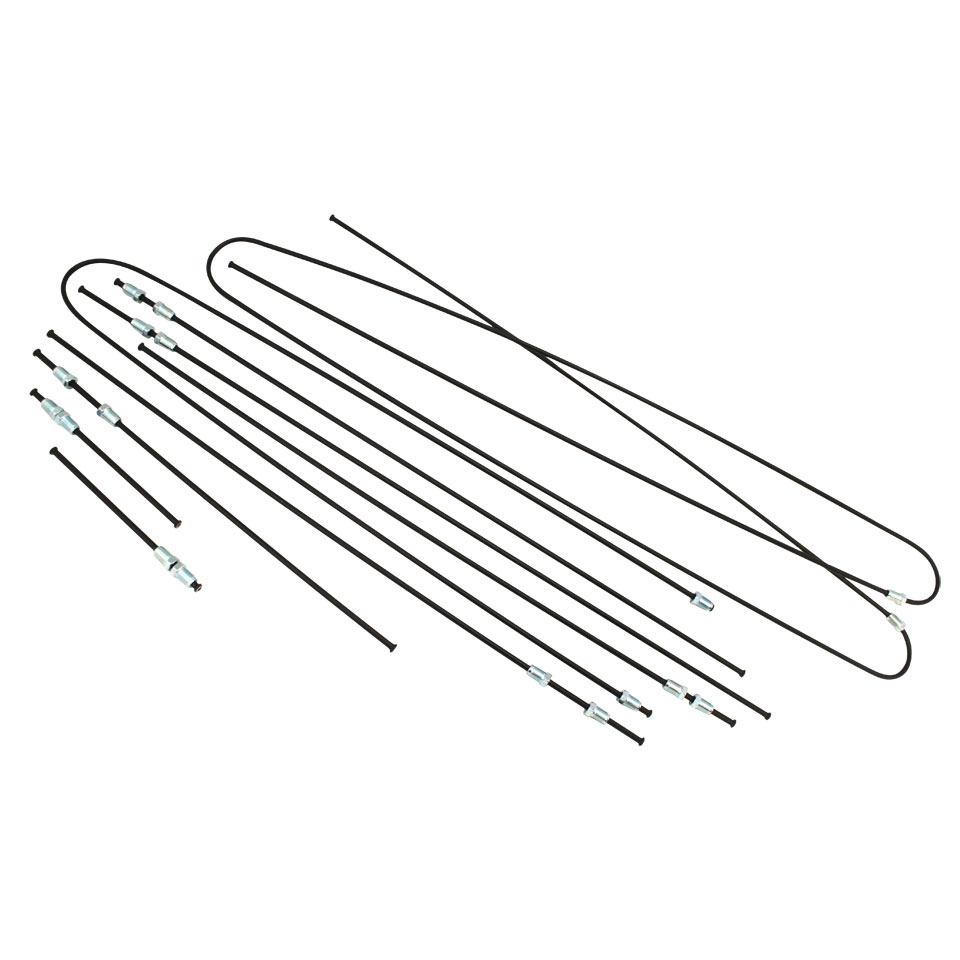

CODE:
1254-01
OEM:
MODEL:
Beetle, Karmann Ghia -07/57
Brakeline kit, original
CODE:
1254-02
OEM:
MODEL:
Beetle, Karmann Ghia 08/57-07/66
Brakeline kit, single circuit, original
CODE:
1254-03
OEM:
MODEL:
Beetle, Karmann Ghia 08/66-
Brakeline kitswing
CODE:
1254-04
OEM:
MODEL:
Beetle, Karmann Ghia 08/66-
Type 181
Brakeline kitIRS
CODE:
1254-05
OEM:
MODEL:
1302/03 -07/73
Brakeline kit, discsbrakes
CODE:
1254-06
OEM:
MODEL:
1303 08/73-
Brakeline kit, discsbrakes
CODE:
1254-07
OEM:
MODEL:
1302/03 -07/73
Brakeline kit, drumbrakes
CODE:
1254-08
OEM:
MODEL:
1303 08/73-
Brakeline kit, drumbrakes
CODE:
1254-20
OEM:
MODEL:
Bus -03/55
Brakeline kit
CODE:
1254-22
OEM:
MODEL:
Bus 04/56-07/63
Brakeline kit
CODE:
1254-23
OEM:
MODEL:
Bus 08/63-07/66
Brakeline kit, single cirquit

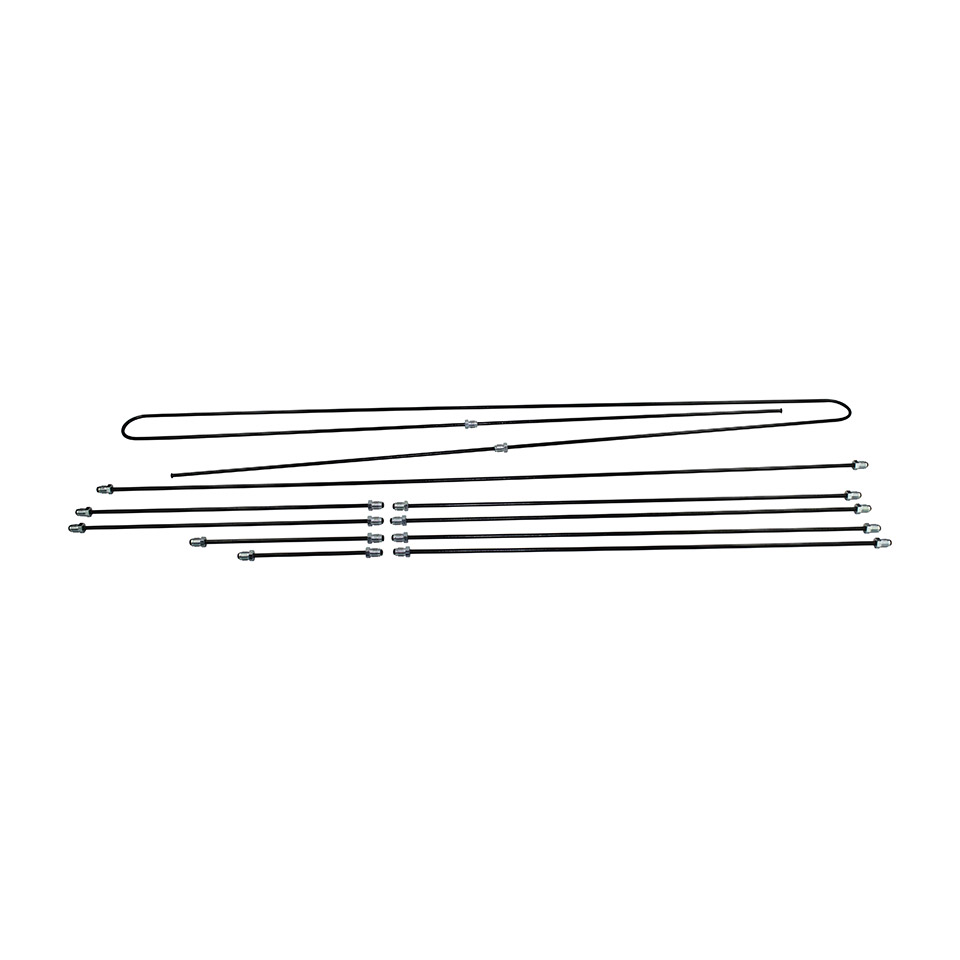

CODE:
1254-24
OEM:
MODEL:
Bus 08/66-07/67
Brakeline kit, dual cirquit
CODE:
1254-300
OEM:
MODEL:
Bus 08/67-07/69
Brakeline kit
CODE:
1254-310
OEM:
MODEL:
Bus 08/69-07/70
Brakeline kit
CODE:
1254-320
OEM:
MODEL:
Bus 08/70-07/71
Brakeline kit - without servo
CODE:
1254-330
OEM:
MODEL:
Bus 08/70-07/79
Brakeline kit - with servo
CODE:
1254-340
OEM:
MODEL:
Bus 08/71-07/72
Brakeline kit - without servo
CODE:
1254-350
OEM:
MODEL:
Bus 08/72-11/72
Brakeline kit - without servo
CODE:
1254-360
OEM:
MODEL:
Bus 12/72-07/79
Brakeline kit - without servo
CODE:
1254-500
OEM:
MODEL:
Bus 08/79-07/83
Brakeline kit
CODE:
1254-510
OEM:
MODEL:
Bus 08/83-07/85
Brakeline kit
CODE:
1254-520
OEM:
251 611 005G
MODEL:
Bus 08/85-07/92
Brakeline kit
CODE:
1255
OEM:
211 611 751 (x4)
MODEL:

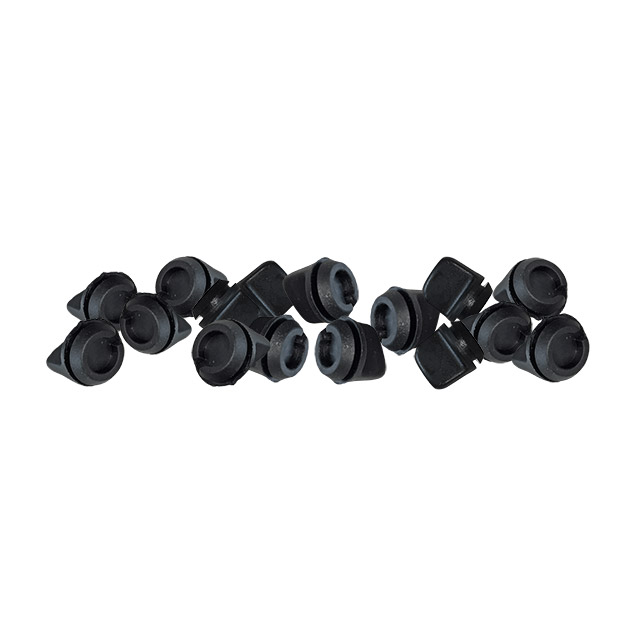

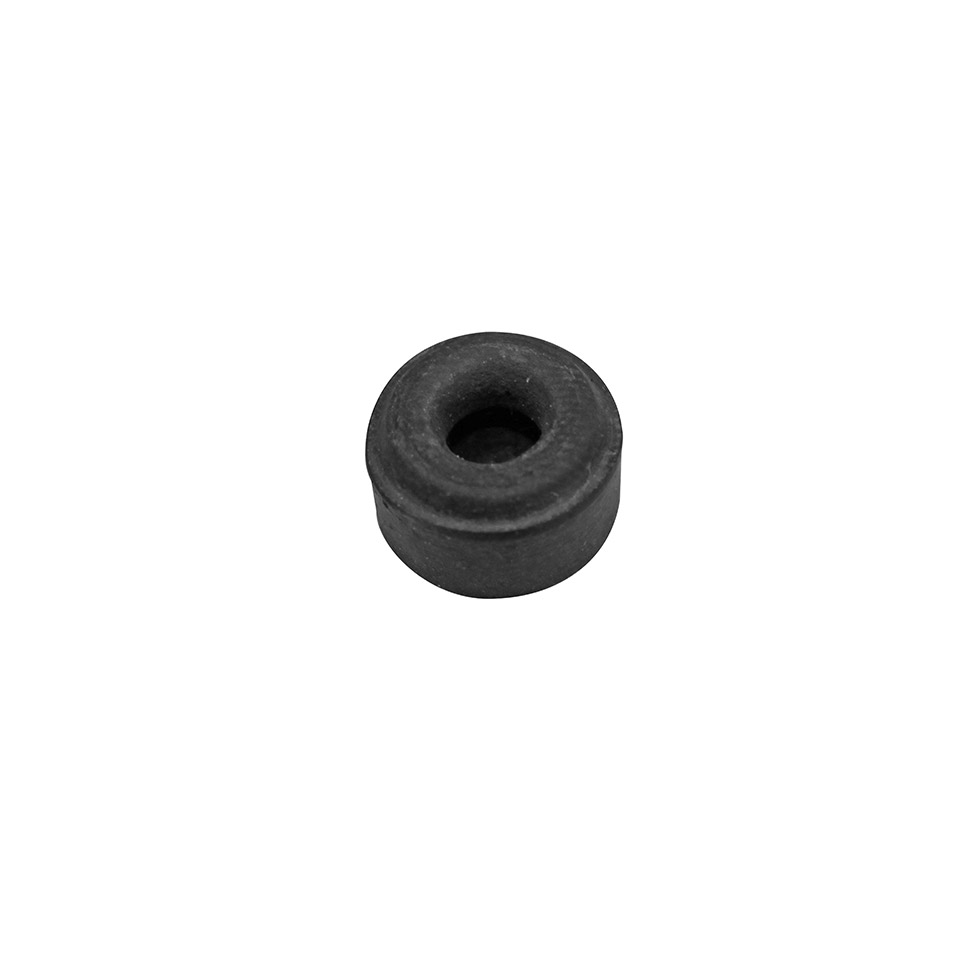

Brake line rubber through chassis, 4 pieces
CODE:
1256
OEM:
113 611 755 / 803 611 755
MODEL:

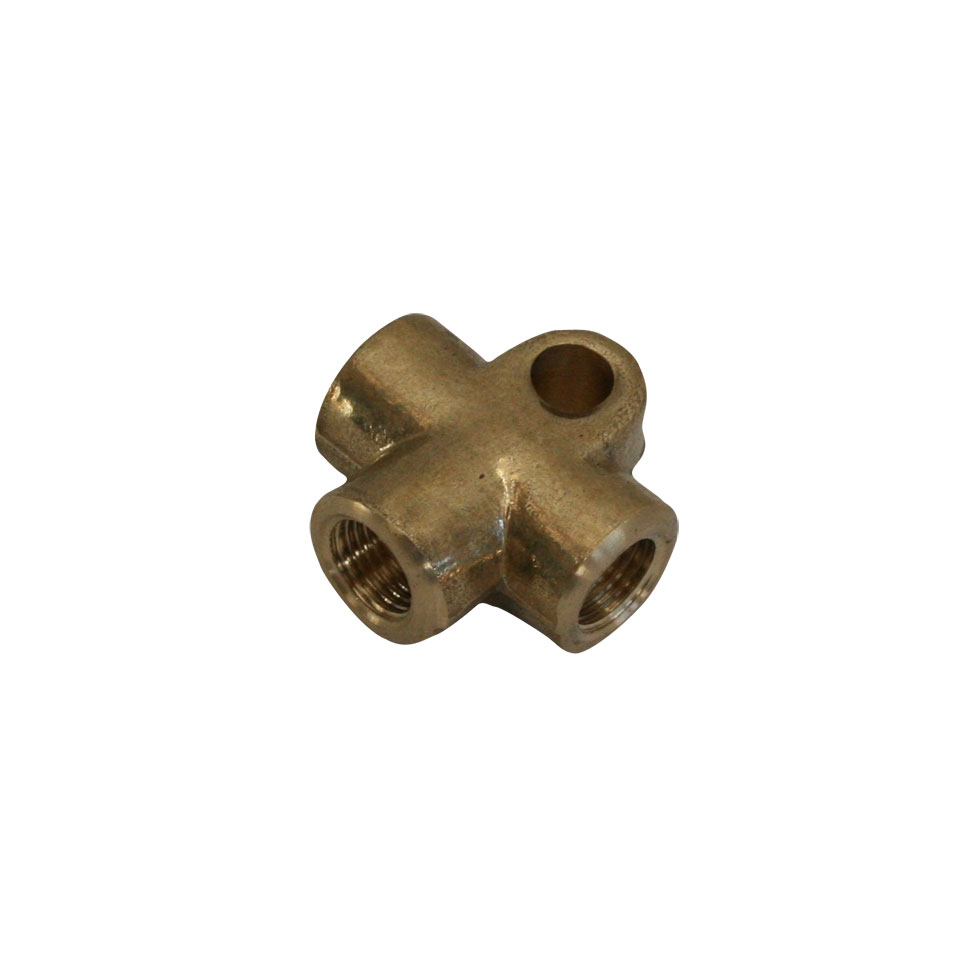

T-piece for metal brake line
CODE:
1256-100
OEM:
113 611 791
MODEL:
Connectionpiece for brakeline
CODE:
1257-550
OEM:
211 611 833C
MODEL:
Bus 08/67-08/79
Grommet sleeve on plastic reservoir tube
CODE:
1258
OEM:
N 020 350 1
MODEL:
Blue brakehose, 0,5 meterFrom the reservoir to the master cylinder.
CODE:
1258-001
OEM:
MODEL:
Beetle -07/67
Brake fluid lineReservoir to master cylinder, metal
CODE:
1258-002
OEM:
113 611 805/806L
MODEL:
Beetle 08/67-
Brake fluid lineReservoir to master cylinder, metal
CODE:
1258-003
OEM:
113 611 806D
MODEL:
1302/03 08/70-
Brake fluid lineReservoir to master cylinder, metal
CODE:
1258-050
OEM:
N 020 350 1
MODEL:
Blue brakehose, 5 meter rollFrom the reservoir to the master cylinder.
CODE:
1258-100
OEM:
113 611 801A
MODEL:
Beetle -07/66
Brakehose between reservoir and master cylinder 4.5mm
CODE:
1260
OEM:
113 611 701
MODEL:
Beetle -07/64
Karmann Ghia -07/64
Bus -02/55
Brake hose front, 480mm
CODE:
1261
OEM:
113 611 701D/ 311 611 701A
MODEL:
Beetle 08/66-
Karmann Ghia 08/66-
Type 3 08/64-07/67
Type 181
Brake hose front, 385 mm (drum)
CODE:
1262
OEM:
311 611 701B
MODEL:
Beetle 08/66-
Karmann Ghia 08/66-
Type 3 08/67-07/73
Brake hose front, 355mm (disk brakes)
CODE:
1263
OEM:
281 611 775B / 211 611 775A
MODEL:
Beetle 1303 08/73-07/79
Bus 08/70-07/79
Brake hose front, 330mm
CODE:
1263-100
OEM:
113 611 701E
MODEL:
Beetle 1302/03 08/70-08/73

Brake hose, frontFemale-female, 300mm
CODE:
1264
OEM:
211 611 701
MODEL:
Beetle 08/64-07/66
Karmann Ghia 08/64-07/66
Bus 03/55-07/67
Brake hose front, 440mm
CODE:
1264-005
OEM:
211 611 703
MODEL:
Bus 08/67-07/70
Brake hose front, 455mm
CODE:
1264-1
OEM:
211 611 775C
MODEL:
Bus 08/67-07/79
Type 3 links 'IRS'
Brake hose rear left, 280mm
CODE:
1265
OEM:
113 611 775 / 211 611 775B
MODEL:
Beetle, Karmann Ghia
Bus 03/55-07/79
Type 3
Type 181
Brake hose rear, 270mm
CODE:
1266
OEM:
113 611 775E
MODEL:
Beetle
Karmann Ghia
Type 181
Brake hose, for gearbox with IRS shaftsMale-female, 245mm
CODE:
1267-100
OEM:
251 611 775A
MODEL:
Bus 05/79-08/85
405mm
Brake hose front left and right
CODE:
1267-200
OEM:
251 611 775B
MODEL:
Bus 08/85-08/92
465mm
Brake hose front left and right
CODE:
1267-300
OEM:
433 611 775A
MODEL:
Bus 05/79-08/92
185mm
Brake hose rear left and right
CODE:
1269
OEM:
113 611 715A
MODEL:
Beetle
Karmann Ghia
Bus
Type181
Type3
Type411/412

Clip for brake hose, each
CODE:
1269-200
OEM:
211 611 795
MODEL:
Bus -67
Clip for brakeline kit on chassis, each
CODE:
1269-210
OEM:
211 405 331
MODEL:
Bus -07/67
Brake hose clamp, left (front axle)

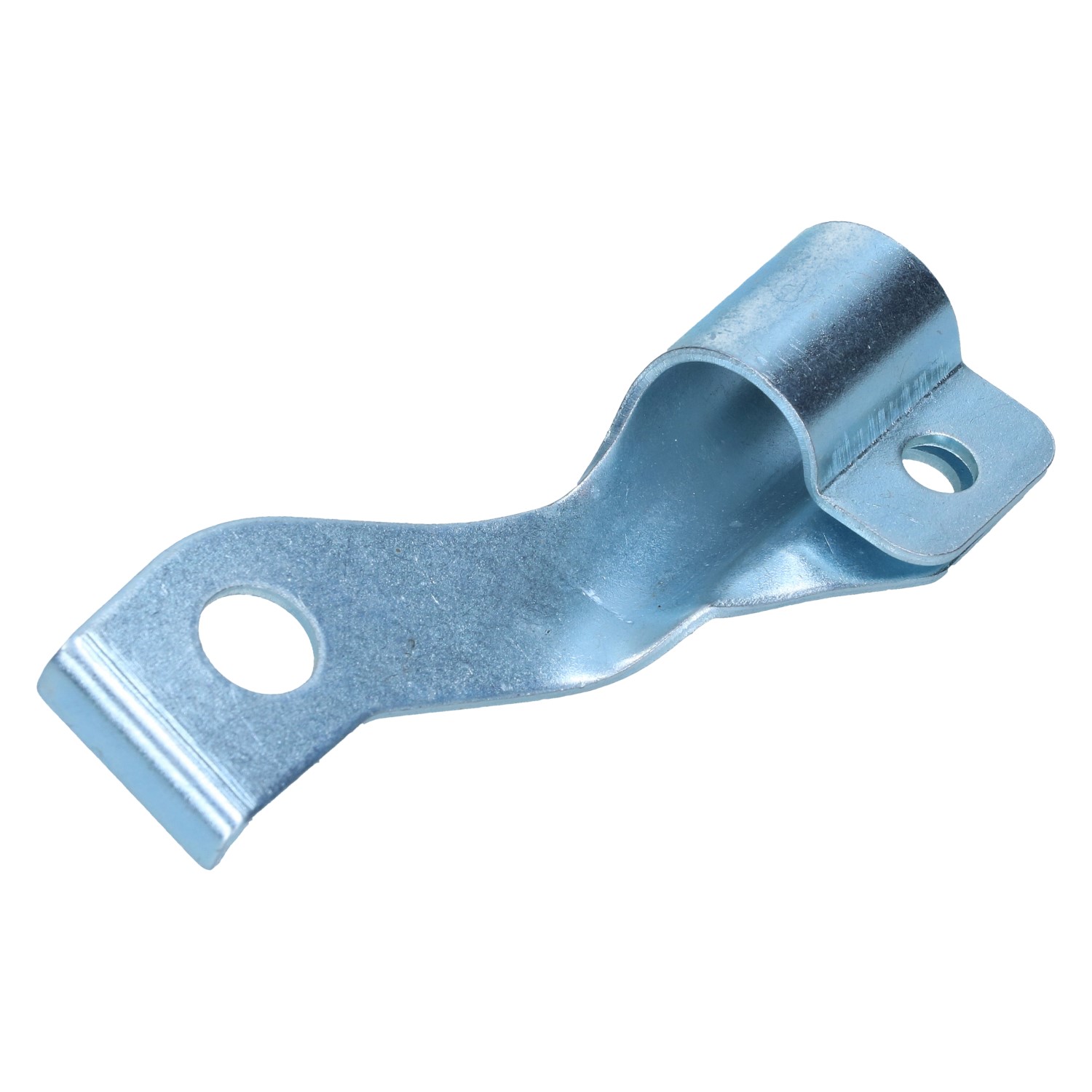

CODE:
1269-215
OEM:
211 405 332
MODEL:
Bus -07/67
Brake hose clamp, right (front axle)

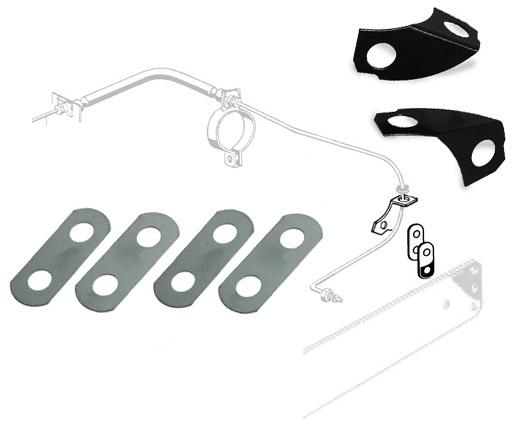

CODE:
1269-225
OEM:
211 598 600 (211 611 847 + 211 611 848)
MODEL:
Bus -07/67
Clip for brakeline kit (springplate)
CODE:
1269-300
OEM:
211 611 795A
MODEL:
Bus 08/67-07/79
Brake line attachment clip onto chassis, each
CODE:
1269-310
OEM:
211 405 331B
MODEL:
Bus 08/67-07/79
Brake hose clamp, left (front axle)
CODE:
1269-315
OEM:
211 405 332B
MODEL:
Bus 08/67-07/79
Brake hose clamp right (front axle)
CODE:
1269-500
OEM:
803 611 715
MODEL:
model_code_typebus 05/79-07/92
Clip for brake line
CODE:
1269-510
OEM:
211 611 767 / 291 611 767
MODEL:
Bus 05/79-07/92
Clip for brake line on chassis
CODE:
1269-520
OEM:
281 611 767
MODEL:
Bus 05/79-07/92
Clip for brake line on chassis
CODE:
1269-530
OEM:
251 611 795
MODEL:
Bus 05/79-07/92
Brakeline holder, single
CODE:
1269-540
OEM:
321 611 853
MODEL:
Bus 05/79-07/92
Brakeline holder, dual

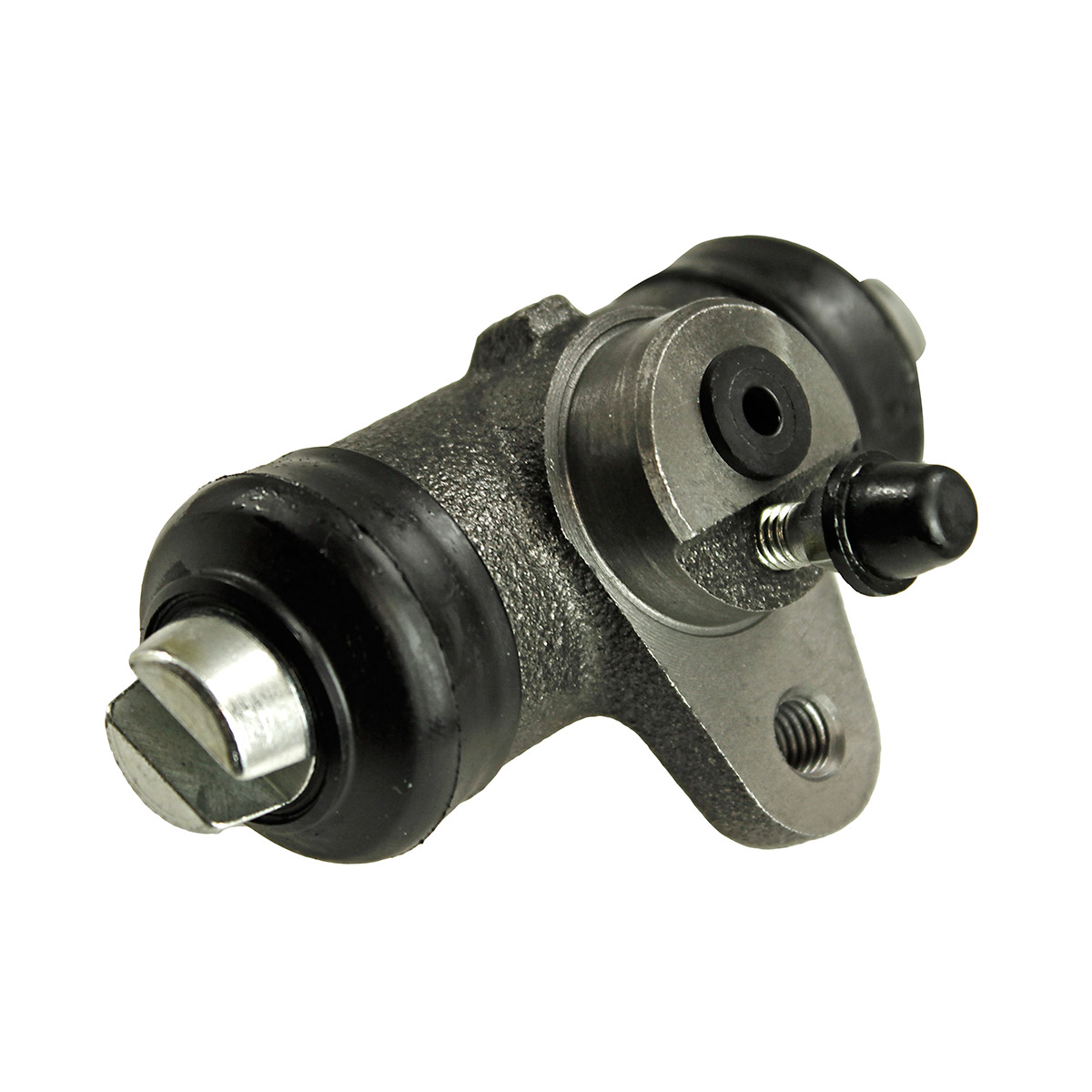

2.4 Wheel cylinders & nipples

CODE:
1210
OEM:
113 611 057B
MODEL:
Beetle 12/1300 10/57-
Karmann Ghia 10/57-
Wheel cylinder, frontTRW-VARGA
CODE:
1210-1
OEM:
113 611 057B
MODEL:
Beetle 12/1300 10/57-
Karmann Ghia 10/57-
Wheel cylinder, front
CODE:
1212-1
OEM:
361 611 067A
MODEL:
1302/03 vooraan
Type 3 08/65- rear
Wheel cylinder front / rear
CODE:
1213
OEM:
113 611 055
MODEL:
Beetle -10/57
Bus -03/55
Wheel cylinder front
CODE:
1215
OEM:
211 611 069C
MODEL:
Bus 07/63-07/70
Wheel cylinder, front, left
CODE:
1216
OEM:
211 611 070C
MODEL:
Bus 07/63-07/70
Wheel cylinder, front, right
CODE:
1217
OEM:
211 611 069
MODEL:
Bus 03/55-06/63
Wheel cylinder, front, left
CODE:
1218
OEM:
211 611 070
MODEL:
Bus 03/55-06/63
Wheel cylinder, front, right
CODE:
1220
OEM:
113 611 055C
MODEL:
Beetle 10/57-07/64
Karmann Ghia 10/57-07/64
Wheel cylinder, rear

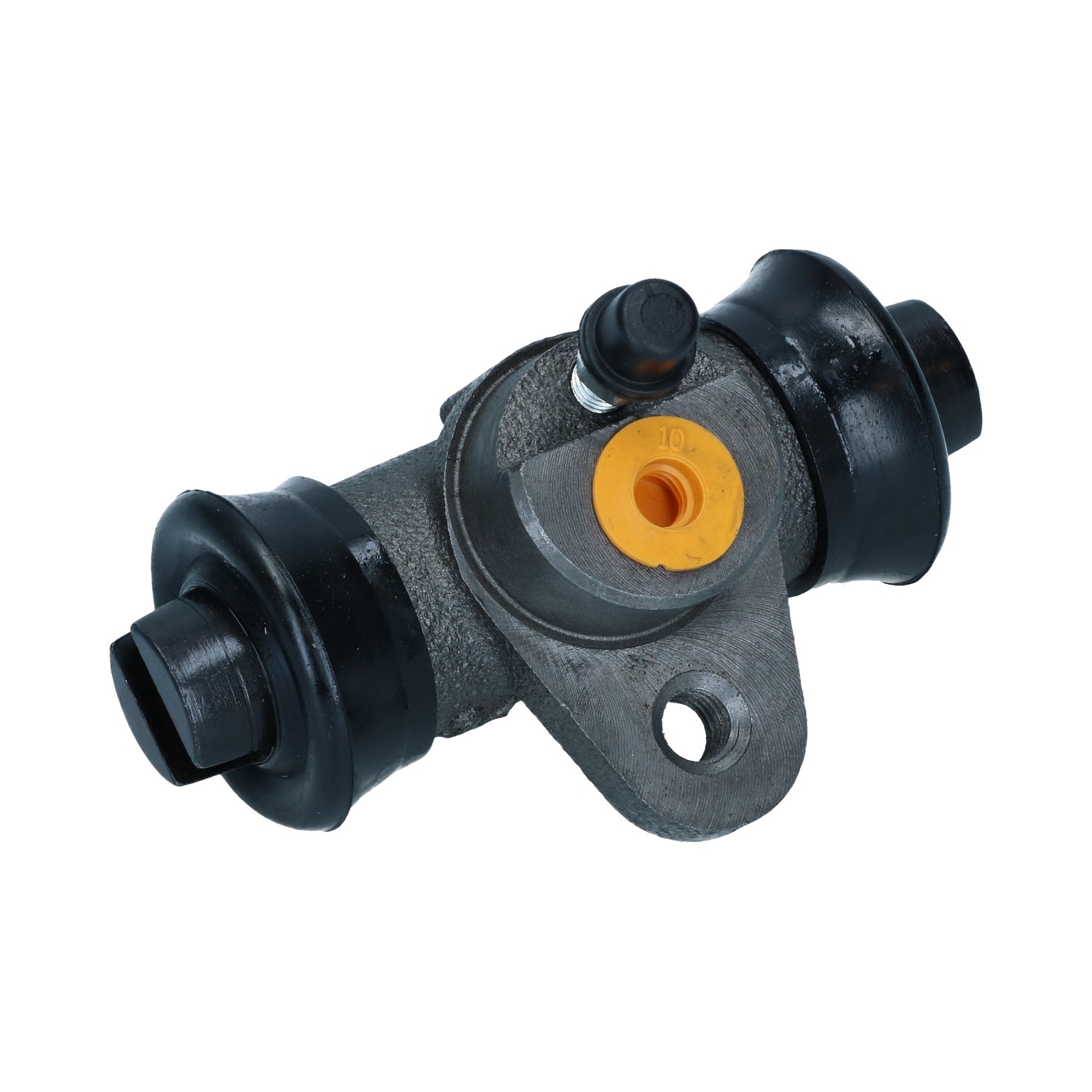

CODE:
1220-1
OEM:
MODEL:
Beetle 10/57-07/64
Karmann Ghia 10/57-07/64
Rear wheel cylinder
CODE:
1221-1
OEM:
131 611 055
MODEL:
Beetle, Karmann Ghia 08/64-07/67
Wheel cylinder, rear
CODE:
1223
OEM:
113 611 053B
MODEL:
Beetle, Karmann Ghia 08/67-
Wheel cylinder, rearTRW-VARGA
CODE:
1223-1
OEM:
113 611 053B
MODEL:
Beetle, Karmann Ghia 08/67-
Wheel cylinder, rearATE
CODE:
1224
OEM:
113 611 053
MODEL:
Beetle -10/57
Wheel cylinder, rearATE
CODE:
1224-12
OEM:
113 611 055
MODEL:
Beetle -07/54
Porche 356 01/50-12/63
Wheel cylinder 4 holefront/rear (19mm)
CODE:
1224-52
OEM:
MODEL:
356 pre A
rebuild kit wheel cylinder 19mm
CODE:
1227
OEM:
211 611 047C
MODEL:
Bus -07/71
Type 181 -73 (TRW)
Wheel cylinder, rear22 mm
CODE:
1227-1
OEM:
211 611 047C
MODEL:
Bus -07/71
Type 181 -73

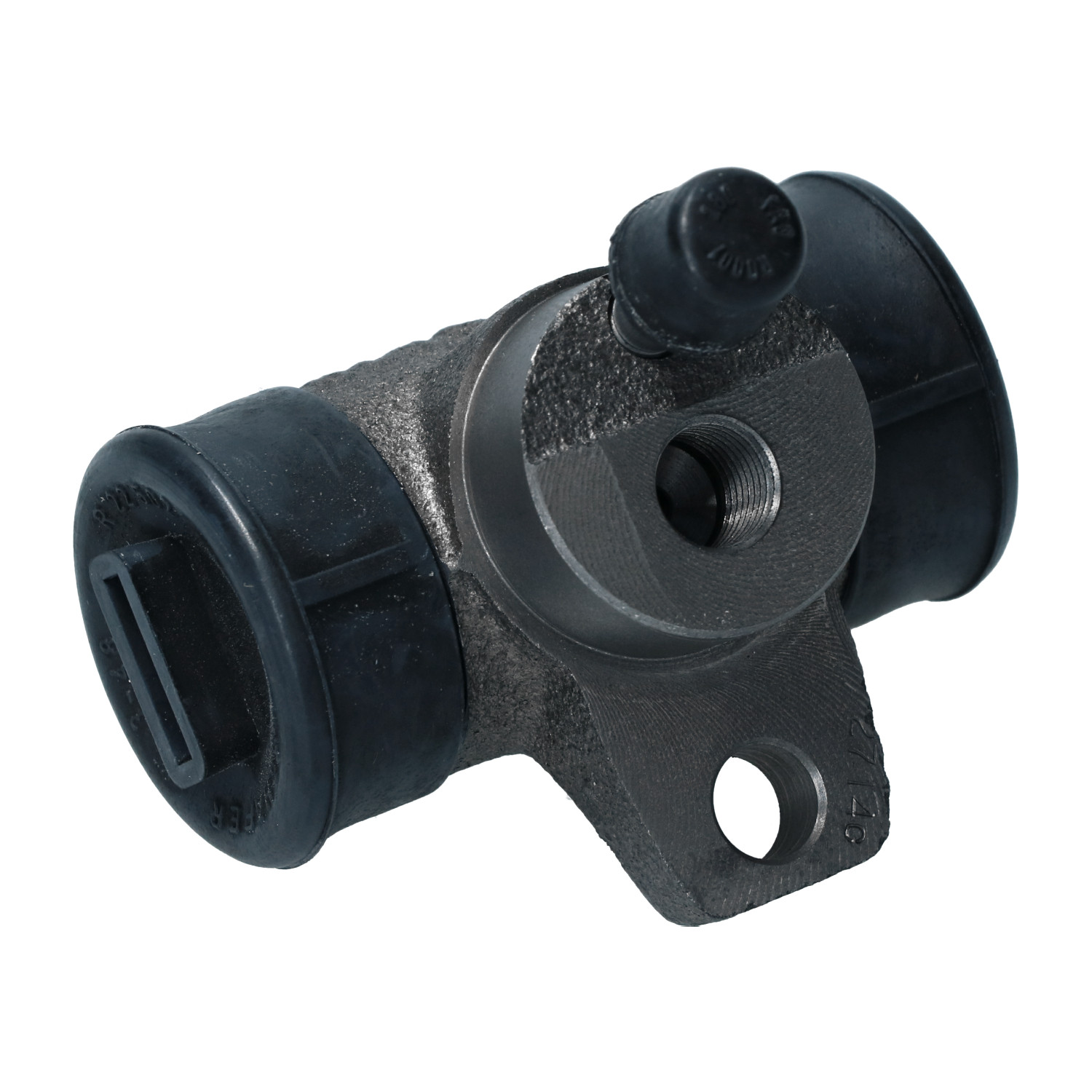

Rear wheel brake cylinder FTE
CODE:
1228
OEM:
211 611 047F
MODEL:
Bus 08/71-07/79
Bus 05/79-08/92
Wheel cylinder, rear23.8 mm, TRW-VARGA
CODE:
1228-1
OEM:
211 611 047F
MODEL:
Bus 08/71-07/79
Bus 05/79-08/92
Wheel cylinder, rear23.8 mm, ATE
CODE:
1229
OEM:
211 611 477A
MODEL:
Beetle, Karmann Ghia

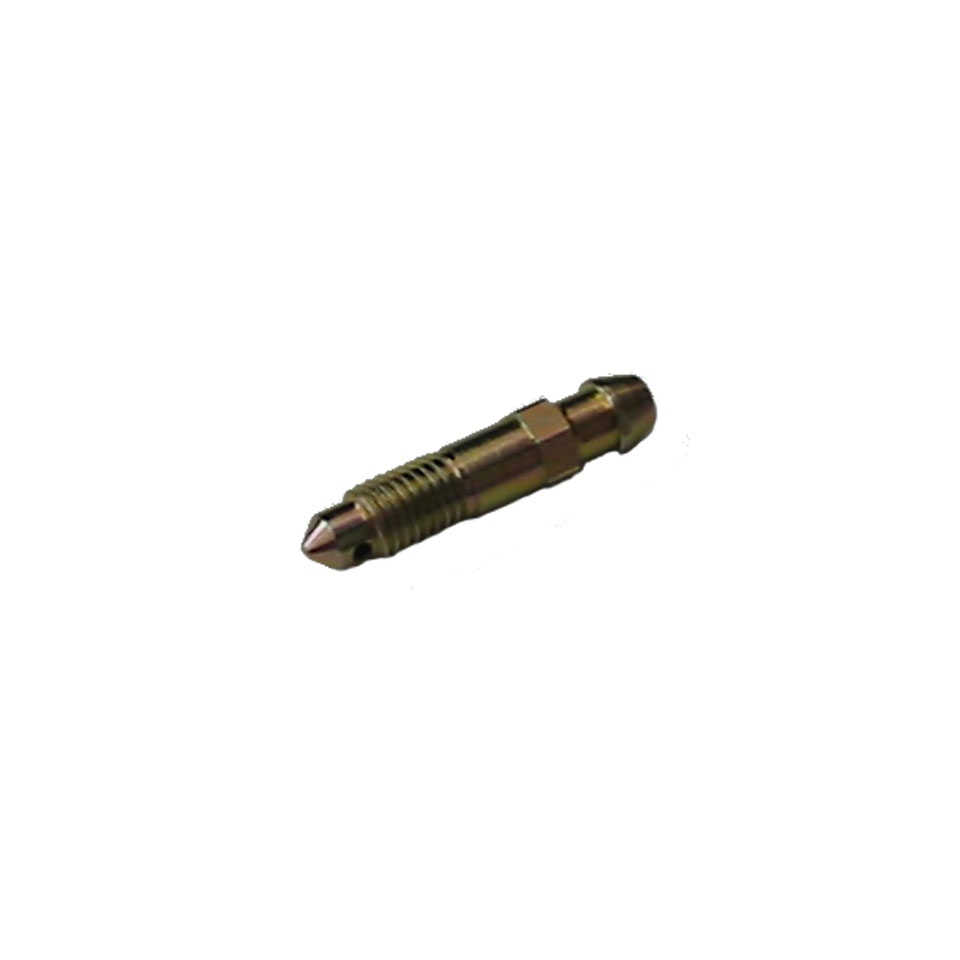

Bleed nipple for brake wheel cylinder M6
CODE:
1229-01
OEM:
MODEL:
Bleed nipple for VARGA-TRW caliper
CODE:
1229-20
OEM:
211 611 475A
MODEL:
Bus 50-07/71
Bleed nipple Front M10
CODE:
1229-9
OEM:
211 611 483
MODEL:
Cap on bleeder nipple

2.5 Brake shoes, handbrake parts & fitting kits

CODE:
1230
OEM:
131 609 237C (x4)
MODEL:
Beetle 08/64-
Karmann Ghia 08/64-
Type 181
Brake shoe set230 x 40front/rear
CODE:
1230-1
OEM:
131 609 237C (x4)
MODEL:
Beetle 08/64-
Karmann Ghia 08/64-
Type 181
Brake shoe set230 x 40front/rear
CODE:
1231
OEM:
113 609 237L (x4)
MODEL:
Beetle 1302/03
Type3
Type411/412

Brake shoe set248 x 46Front/Rear
CODE:
1232
OEM:
113 609 237D
MODEL:
Beetle, Karmann Ghia 08/57-07/64
Brake shoe set230 x 40Front
CODE:
1233
OEM:
113 609 537B
MODEL:
Beetle, Karmann Ghia 08/57-07/64
Brake shoe set230 x 30Rear
CODE:
1234-000
OEM:
113 609 237A
MODEL:
Beetle, Karmann Ghia 01/54-10/57
Brake shoe set 230 x 30Front/rear
CODE:
1234-050
OEM:
113 609 237
MODEL:
Beetle -12/53
Brake shoes230 x 30 front or rear
CODE:
1235
OEM:
131 698 537C
MODEL:
Beetle, Karmann Ghia 08/64-07/67
Brake shoe set230 x 30Rear
CODE:
1236-800
OEM:
211 609 237B x4
MODEL:
Bus 03/55-07/63
Brake shoe set240 x 52Front
CODE:
1236-900
OEM:
211 609 537B x4
MODEL:
Bus 03/55-07/63
Type 181 swing
Brake shoe set240 x 40Rear
CODE:
1237
OEM:
211 698 237D
MODEL:
Bus 08/63-07/70
Brake shoe set250 x 56Front
CODE:
1237-1
OEM:
211 698 537C
MODEL:
Bus 08/63-07/70
Brake shoe set250 x 46Rear
CODE:
1238
OEM:
211 698 537J
MODEL:
Bus 08/70-07/71
Brake shoe set252 x 56Rear
CODE:
1238-1
OEM:
211 698 533B
MODEL:
Bus 08/71-12/72
Brake shoe set252 x 56Rear
CODE:
1238-2
OEM:
211 698 537N
MODEL:
Bus 01/73-07/79
Brake shoe set252 x 56Rear
CODE:
1238-300
OEM:
211 698 531LX
MODEL:
Bus 05/79-08/92
Brake shoe set250 x 55, rear
CODE:
1238-305
OEM:
211 698 531LX
MODEL:
Bus 05/79-08/92
Brake shoe set250 x 55, rear
CODE:
1239
OEM:
MODEL:
Beetle, Karmann Ghia 08/67-

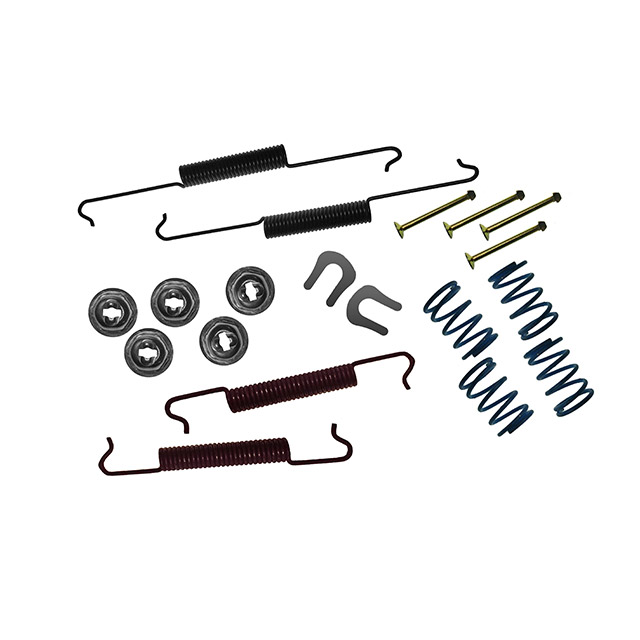

Brake shoes mounting kitUniversal
CODE:
1239-040
OEM:
113 609 301 x2 + 113 609 309/283/289/279 x4
MODEL:
Beetle,  Karmann Ghia -07/57
Brake shoes mounting kit, front / rear
CODE:
1239-05
OEM:
113 698 237D
MODEL:
Beetle, Karmann Ghia 08/57-07/64
Brake shoes mounting kit, front
CODE:
1239-06
OEM:
113 698 537B
MODEL:
Beetle, Karmann Ghia 08/57-07/64
Brake shoes mounting kit, rear
CODE:
1239-07
OEM:
131 698 237C
MODEL:
Beetle, Karmann Ghia 08/64-
Brake shoes mounting kit, front
CODE:
1239-08
OEM:
113 698 537C
MODEL:
Beetle, Karmann Ghia 08/64-
1302/03 08/70-
Brake shoes mounting kit, rear
CODE:
1239-09
OEM:
113 698 237H
MODEL:
Beetle 1302/03
Type3 08/63-
Brake shoes mounting kit, front / rear
CODE:
1239-10
OEM:
MODEL:
Bus 03/55-07/70
Brake shoes mounting kit, front
CODE:
1239-105
OEM:
211 609 309 x8
MODEL:
Bus 03/55-07/63
Spring kit for rear brake shoes, 8 pieces
CODE:
1239-11
OEM:
MODEL:
Bus 08/63-07/79
Brake shoes mounting kit, rear
CODE:
1239-150
OEM:
251 698 545
MODEL:
Bus 05/79-07/92
Brake shoes mounting kit, rear
CODE:
1239-155
OEM:
MODEL:
Bus 05/85-07/92
Brake shoes mounting kit, RearSyncro 16 inch
CODE:
1239-170
OEM:
211 609 637A
MODEL:
Bus 03/55-07/63
Type 181
Support emergency brake cable, left
CODE:
1239-180
OEM:
211 609 638A
MODEL:
Bus 03/55-07/63
Type 181
Support emergency brake cable, right
CODE:
1239-22
OEM:
211 609 209
MODEL:
Beetle -12/53 & 10/57-07/64
Karmann Ghia -12/53 & 10/57-07/64
Bus 03/55-07/79
Type 181
Brake adjusting screw
CODE:
1239-23
OEM:
211 609 625
MODEL:
Bus 07/63-07/79 (ch.nr. 1 144 282-)
Clip on emergency brake rod
CODE:
1239-240
OEM:
211 609 613B
MODEL:
Bus 03/55-07/71
Type 181
Emergency brake handle, left
CODE:
1239-250
OEM:
211 609 614B
MODEL:
Bus 03/55-07/71
Type 181
Emergency brake handle, right
CODE:
1239-260
OEM:
211 609 631B
MODEL:
Bus 03/55-07/71
Type 181
Emergency brake support rod, left
CODE:
1239-270
OEM:
211 609 632B
MODEL:
Bus 03/55-07/71
Type 181

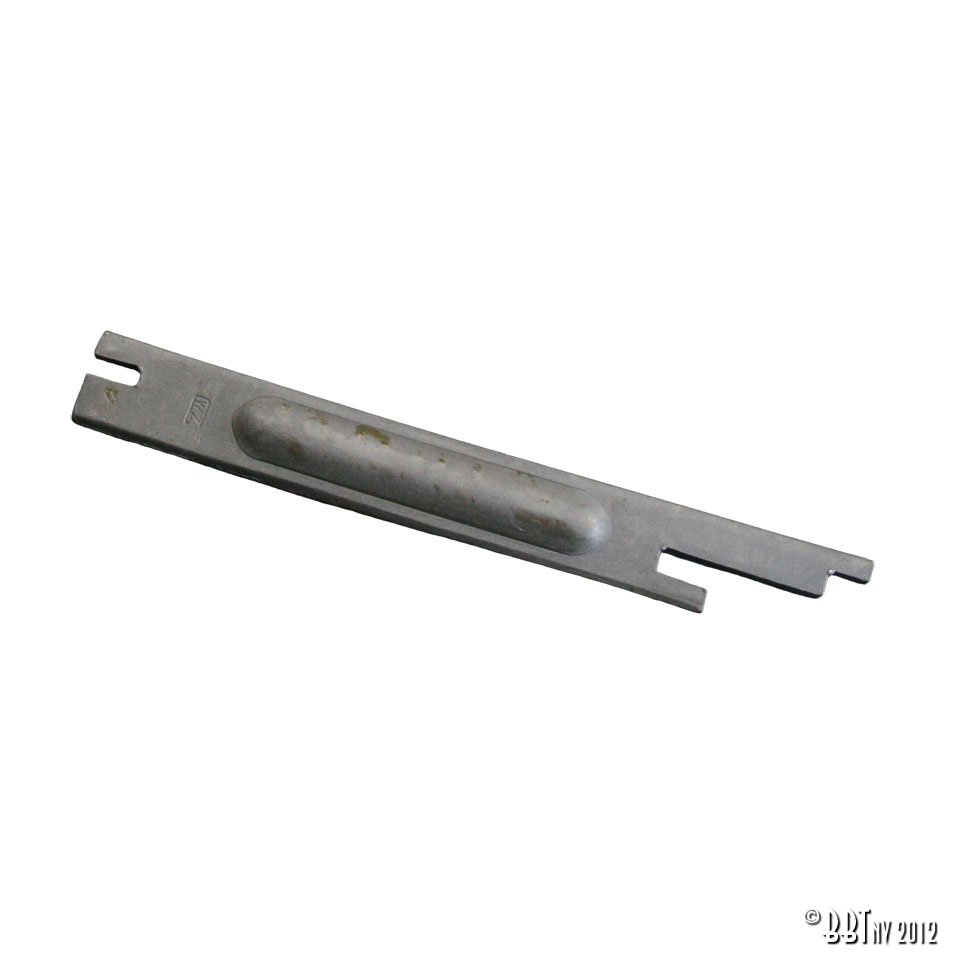

Emergency brake support rod, right
CODE:
1239-360
OEM:
211 609 629
MODEL:
Bus 08/71-01/73
Emergency brake support rod, left/right, each
CODE:
1239-400
OEM:
211 609 485B
MODEL:
Bus 08/70-07/79 (ch.nr. 211 2000 001-)
Spring brake adjustment
CODE:
1239-44
OEM:
211 609 613F
MODEL:
Bus 08/71-
Emergency brake handle, left
CODE:

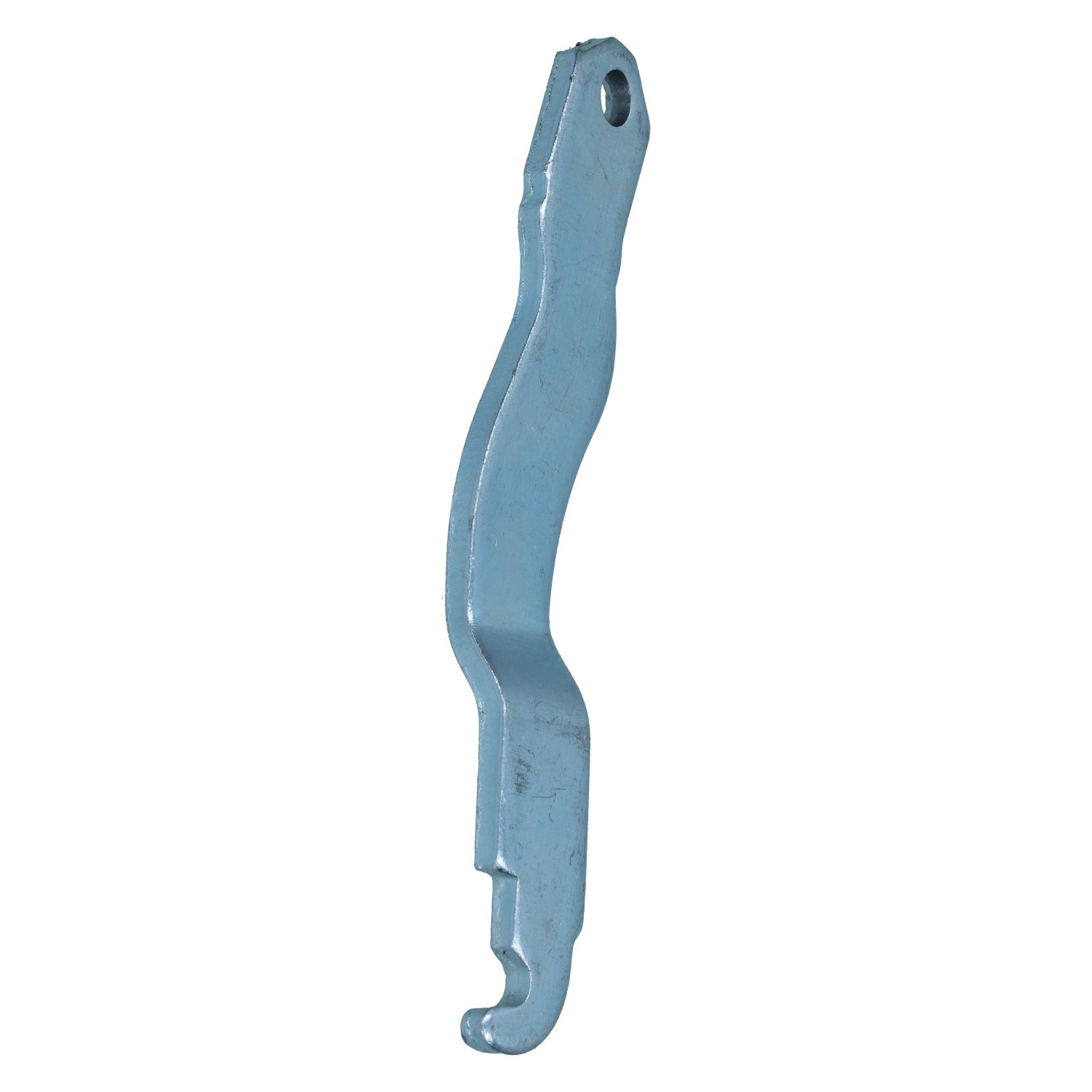

1239-45
OEM:
211 609 614F
MODEL:
Bus 08/71-
Emergency brake handle, right
CODE:
1239-46
OEM:
211 609 631D
MODEL:
Bus 02/73-07/79
Emergency brake support rod, left
CODE:
1239-47
OEM:
211 609 632D
MODEL:
Bus 02/73-07/79
Emergency brake support rod, right
CODE:
1239-890
OEM:
113 609 613A
MODEL:
Beetle, Karmann Ghia 09/57-
Type 3
Emergency brake handle, left
CODE:
1239-891
OEM:
113 609 614A
MODEL:
Beetle, Karmann Ghia 09/57-
Type 3
Emergency brake handle, right
CODE:
1239-90
OEM:
211 609 185A
MODEL:
Beetle, Karmann Ghia 11/53-
Bus -09/55
Type 3 -07/63
Spring brake adjustment
CODE:
1239-905
OEM:
311 609 485
MODEL:
Beetle 1302/03
Type 3 08/63-
Type 411/412
Spring brake adjustment
CODE:
1239-91
OEM:
113 609 205A
MODEL:
Beetle, Karmann Ghia
Bus 50-07/79
Type181
Type3
Brake adjusting gear
CODE:
1239-92
OEM:
131 609 205
MODEL:
Beetle 08/64-
Karmann Ghia 08/64-
Type181
Type3
Brake adjusting screw
CODE:
1239-93
OEM:
113 609 625
MODEL:
Beetle, Karmann Ghia
Type 3
Clip on E-brake rod
CODE:
1239-94
OEM:
211 609 601B
MODEL:
Beetle, Karmann Ghia
Pin for E-brake handle
CODE:
1239-95
OEM:
211 609 619
MODEL:
Beetle, Karmann Ghia
Clip for pin
CODE:
1239-96
OEM:
311 609 631
MODEL:
Beetle, Karmann Ghia 10/57-
Type 3
Emergency brake support rod left
CODE:
1239-961
OEM:
311 609 632
MODEL:
Beetle, Karmann Ghia 10/57-
Type 3
Emergency brake support rod, right
CODE:
1239-97
OEM:
113 609 637
MODEL:
Beetle, Karmann Ghia 10/57-
Type 3
Support emergency brake cable, left
CODE:
1239-98
OEM:
113 609 638
MODEL:
Beetle, Karmann Ghia
Type 3
Support emergency brake cable, right
CODE:
1290
OEM:
N 013 633 1
MODEL:
Rivet for attaching brake shoes to their base, each

2.6 Brake discs, pads & parts

CODE:
1240
OEM:
111 698 151B
MODEL:
63 x 52 x 16.5mm
Beetle 08/72-
1303 08/72-, Karmann Ghia
Brake pads
CODE:
1241
OEM:
311 698 151C/E / 411 698 151
MODEL:
62 x 56 x 15mm
Type 3 07/71-
Type 4 -07/72
Brake pads
CODE:
1242
OEM:
111 698 151C
MODEL:
50 x 58 x 15mm
Beetle -08/71
1303 -08/71, Karmann Ghia
Brake pads
CODE:
1243
OEM:
311 698 151 / 311 698 151B
MODEL:
56 x 53 x 15mm
Beetle 08/71-08/72
1302 08/71-
1303 -08/72
Type 3 -07/71, Karmann Ghia
Brake pads
CODE:
1244
OEM:
211 698 151F/G
MODEL:
77 x 70 x 15mm
Bus 08/70-07/72
Brake pads
CODE:
1245
OEM:
251 698 151A
MODEL:
77 x 70 x 19mm
Bus 08/72-07/79
Bus 08/79-07/85
Brake pads
CODE:
1245-500
OEM:
251 698 151F
MODEL:
Bus 07/85-07/92
Brake pads
CODE:
1247
OEM:
113 698 911
MODEL:
Beetle, Karmann Ghia 08/67-
1302 -07/71
1303 08/72-07/79
Mounting kit brake pads, ATE
CODE:
1247-01
OEM:
113 698 911A
MODEL:
1302 08/71-07/72
Mounting kit brake pads
CODE:
1247-02
OEM:
111 609 081 / 113 698 911B
MODEL:
Beetle 08/72-07/79
Karmann Ghia 08/72-
Mounting kit brake pads 'Girling'
CODE:
1247-20
OEM:
211 698 151D/G
MODEL:
Bus 08/70-07/72
Mounting kit brake pads
CODE:
1247-21
OEM:
211 698 151C / 251 698 151D
MODEL:
Bus 08/72-07/79
Bus 05/79-07/86
Mounting kit brake pads, ATE
CODE:
1247-22
OEM:
211 698 151E / 251 696 151E
MODEL:
Bus 08/74-07/79
Mounting kit brake pads 'Girling'4.5mm pin
CODE:
1247-225
OEM:
113 615 265 (x4), 211 615 269B (x2), 261B (x2)
MODEL:
Bus 08/74-07/86
Mounting kit Brake pads 'Girling'6.0mm pin
CODE:
1247-4
OEM:
MODEL:
Type 411 08/67-07/72
Mounting kit brake pads
CODE:
1270
OEM:
113 407 075
MODEL:
Beetle, Karmann Ghia 08/66--
Type 3 08/65-07/71
Brake disc
CODE:
1270-001
OEM:
113 407 075
MODEL:
Beetle 08/66-
Karmann Ghia 08/66-
Type 3 08/65-07/71
Brake disc
CODE:
1270-1
OEM:
113 407 075 - 5x130
MODEL:
Beetle, Karmann Ghia
Type 3
Brake disc5 lug (5x130)
CODE:
1270-2
OEM:
113 407 075 - 4x100
MODEL:
Beetle, Karmann Ghia 08/66-
Type 3 08/65-07/71
Brake disc 4x100 (Gof)
CODE:
1270-999
OEM:
113 407 075 - blank
MODEL:
Beetle 08/66-
Karmann Ghia 08/66-
Type 3 08/65-07/71
Brake disc without lugs
CODE:
1274-600
OEM:
251 407 615R
MODEL:
Bus 08/85-07/92
277mm
Brake discSyncro 16"
CODE:
1274-700
OEM:
251 407 615Q
MODEL:
Bus 08/85-07/92
255mm
Brake discSyncro 14"
CODE:
1274-800
OEM:
251 407 617K/L/M/N
MODEL:
Bus 07/86-07/92
258mm
Brake disc
CODE:
1274-900
OEM:
251 407 617A
MODEL:
Bus 05/79-07/86
278mm
Brake disc
CODE:
1275
OEM:
211 615 301B
MODEL:
Bus 08/72-07/79
Brake disc
CODE:
1275-005
OEM:
211 615 301B
MODEL:
Bus 08/72-07/79
Brake disc
CODE:
1275-100
OEM:
211 615 301A
MODEL:
Bus 08/70-07/72
Brake disc
CODE:
1276-01
OEM:
MODEL:
Beetle -07/65
Karmann Ghia -07/65
Front disc kit5x205
CODE:
1276-03
OEM:
MODEL:
Beetle 08/65-07/67
Karmann Ghia 08/65-07/67
Front disc kit5x205
CODE:
1276-04
OEM:
MODEL:
Beetle 08/67-
Karmann Ghia 08/67-
Type181
Front disc kit5x205
CODE:
1276-10
OEM:
MODEL:
Beetle -07/67
Rear disc kit5x205For short shafts
CODE:
1276-11
OEM:
MODEL:
Beetle 08/67-07/72 swing
Beetle 08/68-07/72 IRS
Rear disc kit5x205
CODE:
1276-12
OEM:
MODEL:
Beetle 08/72- IRS
Rear disc kit5x205
CODE:
1278
OEM:
MODEL:
Beetle 08/68-
Brake disc kit for gearbox with axle shafts (IRS)4x130
CODE:
1279
OEM:
MODEL:
Beetle 08/67-
Brake disc kit for gearbox with swing axles4x130
CODE:
1279-1
OEM:
MODEL:
Kit brake pads for brake disc kit rearFor BBT #1278 and 1279, sold by set of 4 pieces.

2.7 Calipers, rebuild kits, & hardware

CODE:
1246
OEM:
111 698 471
MODEL:
Beetle, Karmann Ghia
Type 3 -07/71
Brake caliper rebuild kit, ATE
CODE:
1246-1
OEM:
111 698 471B
MODEL:
Beetle, Karmann Ghia 08/71-
Brake caliper rebuild kit, ATE
CODE:
1246-2
OEM:
111 698 471B
MODEL:
Beetle, Karmann Ghia
Type 3 -07/71
Brake caliper rebuild kit, GIRLING
CODE:
1246-400
OEM:
411 698 471
MODEL:
Type 3 08/71-
Type 411/412
Repairkit brakecaliper
CODE:
1246-5
OEM:
211 698 471C
MODEL:
Bus 08/70-07/72
Brake caliper rebuild kit
CODE:
1246-6
OEM:
251 698 471
MODEL:
Bus 08/72-07/79
Bus 05/79-06/86
Brake caliper rebuild kit, ATE
CODE:
1246-700
OEM:
251 698 471B
MODEL:
Bus 08/85-08/92
Brake caliper rebuild kit
CODE:
1246-800
OEM:
251 698 471A
MODEL:
Bus 08/85-08/92 (Girling)
Brake caliper rebuild kit/ Girling
CODE:
1248-001
OEM:
311 615 293 , 111 407 419
MODEL:
Beetle
Type 3 -07/71, Karmann Ghia
Bolts for brake caliper, as pair
CODE:
1248-010
OEM:
MODEL:
Beetle, Karmann Ghia 08/65-
Type 3 -07/71
Brake caliper, left/right
CODE:
1248-090
OEM:
211 615 107
MODEL:
Bus 08/70-07/72
Brake caliper, left
CODE:
1248-095
OEM:
MODEL:
Bus 08/70-07/72
Adapter kit brake caliper
CODE:
1248-096
OEM:
211 615 141 A
MODEL:
Bus 08/72-06/85
Bolt for Brake caliper upper
CODE:
1248-097
OEM:
211 615 143 A
MODEL:
Bus 08/72-06/85
Bolt for Brake caliper lower
CODE:
1248-110
OEM:
7X0 615105 2
MODEL:
Bus 08/72-07/79
Brake caliper, leftOE
CODE:
1248-125
OEM:
211 615 107A / 251 615 107
MODEL:
Bus 08/72-07/79
Brake caliper, left
CODE:
1248-175
OEM:
251 615 107
MODEL:
Bus 05/79-07/85
Brake caliper, left
CODE:
1248-225
OEM:
251 615 123 B/D
MODEL:
Bus 08/85-07/92
Brake caliper, leftGirling
CODE:
1248-230
OEM:
251 615 125C
MODEL:
Bus 08/85-07/92
Brake caliper carrierGirling
CODE:
1249-090
OEM:
211 615 108
MODEL:
Bus 08/70-07/72
Brake caliper, right
CODE:
1249-110
OEM:
7X0 615106 2
MODEL:
Bus 08/72-07/79
Brake caliper, rightOE
CODE:
1249-125
OEM:
211 615 108A / 251 615 108
MODEL:
Bus 08/72-07/79
Brake caliper, right
CODE:
1249-175
OEM:
251 615 108
MODEL:
Bus 05/79-07/85
Brake caliper, right
CODE:
1249-225
OEM:
251 615 124B/D
MODEL:
Bus 08/85-07/92
Brake caliper, rightGirling

2.8 Brake fluid reservoirs

CODE:
1257-03
OEM:
113 611 301A
MODEL:
Beetle 12/53-01/57
Karmann Ghia -01/57
Brake fluid reservoir
CODE:
1257-04
OEM:
113 611 301B
MODEL:
Beetle 01/57-07/60
Karmann Ghia 01/57-07/60
Brake fluid reservoir
CODE:
1257-045
OEM:
113 611 399
MODEL:
Beetle -07/60
Karmann Ghia -07/60
Seal brake fluid reservoir
CODE:
1257-05
OEM:
113 611 373
MODEL:
Beetle 12/53-07/60
Karmann Ghia -07/60
Type 3 -08/62
Cap brake fluid reservoir
CODE:
1257-10
OEM:
111 611 349 / 113 611 351 / 131 611 349A
MODEL:
Beetle, Karmann Ghia 08/60-
Bus 08/67-07/79
Type 181
Type 3 09/62-
Type4
Cap brake fluid reservoir
CODE:
1257-11
OEM:
113 611 301G
MODEL:
Beetle 08/60-07/66
Karmann Ghia 08/60-07/66
Brake fluid reservoir, square
CODE:
1257-115
OEM:
113 611 301H
MODEL:
Beetle 08/66-07/67
Brake fluid reservoirDual circuit
CODE:
1257-12
OEM:
113 611 301R
MODEL:
Beetle, Karmann Ghia 08/67-
Type 3 08/67-
Type 181
Brake fluid reservoir, rectangle
CODE:
1257-130
OEM:
251 611 301V
MODEL:
Beetle 08/66-
Karmann Ghia 08/66-
Bus 04/79-07/82 (without servo)
Brake fluid reservoir on master cylinder
CODE:
1257-20
OEM:
211 611 301C
MODEL:
Bus -07/66
Beetle -12/53
Brake fluid reservoir
CODE:
1257-21
OEM:
211 611 301C
MODEL:
Bus -07/66
Beetle -12/53
Brake fluid reservoirGerman Top Quality
CODE:
1257-212
OEM:
N 013 827 2
MODEL:
Bus -07/66
Beetle -12/53
Seal brake fluid reservoir
CODE:
1257-220
OEM:
211 611 301E
MODEL:
Bus 08/66-07/67
Brake fluid reservoir
CODE:
1257-23
OEM:
211 611 309
MODEL:
Bus 08/67-07/72
Brake fluid fill reservoir
CODE:
1257-24
OEM:
211 611 309B
MODEL:
Bus 08/72-07/79
Brake fluid fill reservoir
CODE:
1257-249
OEM:
211 611 313G
MODEL:
Bus 08/68-07/72

Brake fluid reservoirwithout Servo
CODE:
1257-25
OEM:
211 611 313H
MODEL:
Bus 08/70-07/72
Brake fluid reservoir, for servo
CODE:
1257-251
OEM:
211 611 313K
MODEL:
Bus 08/72-07/79
Brake fluid reservoir with Servo
CODE:
1257-252
OEM:
211 611 313J
MODEL:
Bus 08/72-07/79
Brake fluid reservoir - without Servo

2.9 Drums & deflectors

CODE:
1280
OEM:
111 405 615B
MODEL:
Beetle, Karmann Ghia 08/67-
Brake drum, front4-lug (4x130)
CODE:
1280-1
OEM:
111 405 615B - 5x130
MODEL:
Beetle, Karmann Ghia 08/67-
Brake drum, front5-lug (5x130) Porsche
CODE:
1280-2
OEM:
111 405 615B - 4x100
MODEL:
Beetle, Karmann Ghia 08/67-
Brake drum, front4-lug (4x100)
CODE:
1280-999
OEM:
MODEL:
Beetle 08/67-
Brake drum frontwithout holes
CODE:
1281
OEM:
113 501 615J
MODEL:
Beetle, Karmann Ghia 08/66-
Brake drum, rear4-lug (4x130)
CODE:
1281-1
OEM:
113 501 615J - 5x130
MODEL:
Beetle, Karmann Ghia 08/66-
Brake drum, rear5 lug (5x130) Porsche
CODE:
1281-2
OEM:
113 501 615J - 4x100
MODEL:
Beetle, Karmann Ghia 08/66-
Brake drum, rear4 lug (4x100) Golf
CODE:
1281-999
OEM:
113 501 615J - blank
MODEL:
Beetle 08/66-
Brake drum, rearwithout lugs
CODE:
1282
OEM:
311 501 615F
MODEL:
Type 3 08/65-07/74
Type 411/12 08/70-
Brake drum, rear4-lug (4x130)
CODE:
1282-1
OEM:
311 501 615E
MODEL:
Type 3 08/63-07/65
Brake drum, rear5-lug (5x205)
CODE:
1283
OEM:
113 405 615A
MODEL:
Beetle 10/57-07/65
Karmann Ghia 10/57-07/65
Brake drum, front5-lug (5x205)
CODE:
1283-120
OEM:
111 405 615
MODEL:
Beetle 1951-09/57
Brake drum, front5-lug (5x205)
CODE:
1284
OEM:
131 405 615A
MODEL:
Beetle, Karmann Ghia 08/65-07/67
Type 181
Brake drum, front5-lug (5x205)
CODE:
1285
OEM:
113 501 615D
MODEL:
Beetle, Karmann Ghia 10/57-07/67
Brake drum, rear5-lug (5x205)
CODE:
1285-120
OEM:
111 501 615
MODEL:
Beetle 1951-09/57
Karmann Ghia -09/57
Rear brake drum
CODE:
1285-181
OEM:
181 501 615A
MODEL:
Type 181 03/73-12/79 'IRS'
Brake drum, rear 'IRS'5-lug (5x205)
CODE:
1286
OEM:
113 405 615D
MODEL:
Beetle 1302/03
Brake drum, front4-lug (4x130)
CODE:
1286-1
OEM:
113 405 615D - 5x130
MODEL:
1302/03
Brake drum, front4x130/5x130 (Porsche)
CODE:
1286-2
OEM:
113 405 615D - 4x100
MODEL:
1302/03
Brake drum, front4 lug (4x100) Golf
CODE:
1287-01
OEM:
211 405 615C
MODEL:
Bus 08/62-07/70
Brake drum, front5-lug (5x205)
CODE:
1287-02
OEM:
211 405 615A
MODEL:
Bus 03/55-07/62
Brake drum, front5-lug (5x205)
CODE:
1287-11
OEM:
211 501 615E
MODEL:
Bus 08/63-07/67
Brake drum rear5-lug (5x205)
CODE:
1288
OEM:
211 501 615G
MODEL:
Bus 68-07/70 (ch. 218 109 823-)
Brake drum, rear5-lug (5x205)
CODE:
1289
OEM:
211 609 615
MODEL:
Bus 08/70-07/79
Brake drum, rear5-lug (5x112)
CODE:
1289-001
OEM:
211 609 615
MODEL:
Bus 08/70-07/79
Brake drum, rear5-lug (5x112)
CODE:
1289-100
OEM:
251 609 615
MODEL:
Bus 05/79-07/92
Bus synchro 14"
Brake drum, rear5-lug (5x112)
CODE:
1289-200
OEM:
251 609 615A
MODEL:
Bus 05/79-07/92 Synchro 16"
Brake drum, rear5-lug (5x112) Synchro 16"
CODE:
1410-900
OEM:
111 501 631
MODEL:
Beetle, Karmann Ghia -07/64
Oil Deflector in brakedrum
CODE:
1410-905
OEM:
211 501 631
MODEL:
Bus -07/55
Oil Deflector in brakedrum
CODE:
1410-910
OEM:
311 501 631
MODEL:
Type 3 -08/62
Oil Deflector in brakedrum (SWT)
CODE:
1410-925
OEM:
356.34.031
MODEL:
Porsche 356 51-59
Oil Deflector in brakedrum
CODE:
1411
OEM:
N 12 548 1
MODEL:
Split cutter pin, castle nut, each
CODE:
1412
OEM:
MODEL:
Ring kit brake drum rear 4x130 -> 5x205 BBT
CODE:
1448
OEM:
N 901 496 01 / 211 501 221A
MODEL:
Bus 08/79-07/92
Castle nut rear axle
CODE:
1448-100
OEM:
211 501 221A
MODEL:
Bus 08/63-07/67
Castle nut rear axle (forged)
CODE:
1448-200
OEM:
211 501 221A
MODEL:
Bus 08/67-07/79
Castle nut rear axle
CODE:
1449
OEM:
311 501 221
MODEL:
Beetle 08/66-
Karmann Ghia 08/66-
Type 3
Type 181
Castle nut rear axle
CODE:
1449-100
OEM:
111 501 221
MODEL:
Beetle -07/66
Karmann ghia -07/66
Bus -07/63 (1500cc)
Castle nut rear axle

2.10 Backing plates

CODE:
1271
OEM:
113 405 595
MODEL:
Beetle 12/1300
Dust cover behind brake disc
CODE:
1271-180
OEM:
211 405 593A
MODEL:
Bus 08/70-08/79
Dust cover behind brake disc, left
CODE:
1271-190
OEM:
211 405 594A
MODEL:
Bus 08/70-08/79
Dust cover behind brake disc, right
CODE:
1271-200
OEM:
251 407 343C
MODEL:
Bus 05/79-07/86
Dustcover brake disk left/ right
CODE:
1271-205
OEM:
251 407 339A
MODEL:
Bus 08/86-08/92
Dustcover brake disk left
CODE:
1271-206
OEM:
251 407 340A
MODEL:
Bus 08/86-08/92
Dustcover brake disk right
CODE:
1272
OEM:
113 407 165
MODEL:
Beetle 1302/03
Dust cover behind brake disc
CODE:
1291-400
OEM:
113 609 139A
MODEL:
Beetle, Karmann Ghia 09/57-07/64
Backing plate front
CODE:
1291-450
OEM:
113 609 139B
MODEL:
Beetle, Karmann Ghia 08/64-07/65
Backing plate front
CODE:
1291-500
OEM:
181 609 139
MODEL:
Beetle, Karmann Ghia 08/65-
Type 181
Backing plate, front, left and right, each
CODE:
1291-800
OEM:
211 609 139A
MODEL:
Bus 03/55-08/63
Backing plate, front left
CODE:
1291-825
OEM:
211 609 139B
MODEL:
Bus 08/63-07/67
Backing plate, front, left
CODE:
1291-850
OEM:
211 609 139D
MODEL:
Bus 08/67-07/70
Backing plate, front left
CODE:
1292-800
OEM:
211 609 140A
MODEL:
Bus 03/55-08/63
Backing plate, front right
CODE:
1292-825
OEM:
211 609 140B
MODEL:
Bus 08/63-07/67
Backing plate, front, right
CODE:
1292-850
OEM:
211 609 140D
MODEL:
Bus 08/67-07/70
Backing plate, front right
CODE:
1293-300
OEM:
113 609 439
MODEL:
Beetle -10/57
Backing plate rear, left
CODE:
1293-400
OEM:
113 609 439B
MODEL:
Beetle, Karmann Ghia 10/57-07/64
Backing plate rear left - BBT
CODE:
1293-450
OEM:
113 609 439C
MODEL:
Beetle 08/64-07/67
Backing plate, rear left
CODE:
1293-5
OEM:
113 609 439E
MODEL:
Beetle, Karmann Ghia 08/67-
Backing plate rear, left
CODE:
1293-650
OEM:
311 609 439D
MODEL:
Type 3 08/65-
Backing plate rear left
CODE:
1293-800
OEM:
211 609 439A
MODEL:
Bus 03/55-08/63
Backing plate, rear left
CODE:
1293-825
OEM:
211 609 439B
MODEL:
Bus 08/63-07/67
Backing plate, rear, left
CODE:
1293-850
OEM:
211 609 439D
MODEL:
Bus 08/67-07/70
Backing plate, rear, left
CODE:
1293-9
OEM:
211 609 425L
MODEL:
Bus 08/70-
Backing plate rear, left
CODE:
1293-950
OEM:
251 609 425D
MODEL:
Bus 05/79-07/92
Backing plate, rear left
CODE:
1294-300
OEM:
113 609 440
MODEL:
Beetle -10/57
Backing plate rear, right
CODE:
1294-400
OEM:
113 609 440B
MODEL:
Beetle, Karmann Ghia 10/57-07/64
Backing plate rear right - BBT
CODE:
1294-450
OEM:
113 609 440C
MODEL:
Beetle 08/64-07/67
Backing plate, rear right
CODE:
1294-5
OEM:
113 609 440E
MODEL:
Beetle 08/67-
Backing plate rear, right
CODE:
1294-650
OEM:
311 609 440D
MODEL:
Type 3 08/65-
Backing plate rear right
CODE:
1294-800
OEM:
211 609 440A
MODEL:
Bus 03/55-08/63
Backing plate, rear right
CODE:
1294-825
OEM:
211 609 440B
MODEL:
Bus 08/63-07/67
Backing plate, rear, right
CODE:
1294-850
OEM:
211 609 440D
MODEL:
Bus 08/67-07/70
Backing plate, rear, right
CODE:
1294-9
OEM:
211 609 426L
MODEL:
Bus 08/70-
Backing plate rear, right
CODE:
1294-950
OEM:
251 609 426D
MODEL:
Bus 05/79-07/92
Backing plate, rear, right
CODE:
1295
OEM:
113 609 163 (x16)
MODEL:
Rubber inspection plugs, brake lining (16 pieces)

2.11 Accessories

CODE:
1296
OEM:
MODEL:
Hydraulic emergency brake
CODE:
1297
OEM:
MODEL:
Beetle 04/66-
Type 181 08/69-
Mechanical power brake

3. Shock absorbers & components

3.1 Oil shocks

CODE:
1301
OEM:
113 513 031G
MODEL:
Beetle front 12/52-07/65Beetle achter swingKarmann Ghia front 12/52-07/65Karmann Ghia achter swing Bus -07/67 front/achterType 3 front/achterType 181 achter
Shock absorber front/rear
CODE:
1301-005
OEM:
113 513 031N
MODEL:
Beetle, Karmann Ghia
Type 181
Type 3
Shock absorber rear IRS
CODE:
1301-1
OEM:
211 513 031N
MODEL:
Bus 08/67-07/71
Shock absorber rear
CODE:
1301-2
OEM:
211 513 031R
MODEL:
Bus 08/71-07/79
Shock absorber rear
CODE:
1301-500
OEM:
251 513 031G
MODEL:
Bus 05/79-07/92
Shock absorber rear (no Synchro)
CODE:
1302
OEM:
113 413 031E
MODEL:
Beetle 08/65-Karmann Ghia  08/65-Type 181
Shock absorber front
CODE:
1302-1
OEM:
211 413 031P
MODEL:
Bus 08/67-07/79
Shock absorber front
CODE:
1302-500
OEM:
251 413 031J
MODEL:
Bus 05/79-07/92
Shock absorber front (no Synchro)
CODE:
1315-1
OEM:
113 412 031D
MODEL:
Beetle 1302/1303 -07/73
Shock absorber front MC Pherson 3 bolts
CODE:
1318
OEM:
111 413 031
MODEL:
Beetle 50-52
Shock absorber front/rear

3.2 Gas shocks

CODE:
1303
OEM:
MODEL:
div>Beetle 12/52-07/65 front
Beetle achter swing
Karmann Ghia 12/52-07/65 front
Karmann Ghia achter swing
Bus -07/67 front/achter
Bus 08/67-07/79 front
Type 3 front/achter
Type 181 achter
Gas shock absorber, front/rear
CODE:
1304
OEM:
MODEL:
Beetle 08/65-
Karmann Ghia 08/65-
Gas shock absorber, front
CODE:
1306
OEM:
MODEL:
Beetle front 12/52-07/65Beetle achter swingKarmann Ghia front 12/52-07/65
Karmann Ghia achter swing
Bus -07/67 front/achter Bus 08/67-07/79 frontType 3 front/achterType 181 achter
Gas shock absorberlowered
CODE:
1307
OEM:
MODEL:
Beetle 08/65-
Karmann Ghia 08/65-
Gas shock absorber, frontlowered
CODE:
1308
OEM:
MODEL:
Beetle 08/65-
Karmann Ghia 08/65-
Type 181
Gas shock absorber, front 'Heavy Duty'
CODE:
1309
OEM:
MODEL:
div>Beetle front 12/52-07/65
Beetle achter swing
Karmann Ghia front 12/52-07/65
Karmann Ghia achter swing
Bus -07/67 front/achter
Bus 08/67-07/79 front
Type 3 front/achter
Type 181 achter
Gas shock absorber, 'Heavy Duty'
CODE:
1309-100
OEM:
MODEL:
Bus 08/67-07/79
Gas shock absorber rear 'Heavy Duty'
CODE:
1315
OEM:
MODEL:
Beetle 1302/03 -07/73
Gas shock absorber, frontMc Pherson with 3 bolts
CODE:
1317
OEM:
MODEL:
Beetle 1303 08/73-07/79
Gas shock absorber, frontMc Pherson with 2 bolts

3.3 Parts

CODE:
1314
OEM:
131 498 441 / 131 413 425A+449B+441+435x2+431
MODEL:
Beetle 08/65-
Karmann Ghia 08/65-
Type 3
Type 181


Top mounting with dust cover for front shock absorber
CODE:
1319-100
OEM:
111 413 401A (x2)
MODEL:
Beetle, Karmann Ghia, Bus -07/62
Front top shock bolts (2)
CODE:
1319-200
OEM:
111 413 403A (x2)
MODEL:
Front top shock bolts - Beetle/Karmann Ghia 08/62-07/65, Puma front axle, Bus top rear 03/55-07/67 (2)

3.4 MC Pherson

CODE:
1314-050
OEM:
111 413 381A
MODEL:
Beetle
Karmann Ghia
Bus 50-07/79
Type 3
Type 181

stab. achter top
Beetle 08/65-
Type 181
Rubber shock absorber and and sway bar (15mm)
CODE:
1314-100
OEM:
113 412 303A
MODEL:
1302/03 -07/73
Tower rubber stop on shock absorber
CODE:
1314-110
OEM:
133 412 303A
MODEL:
1303 08/73-
Tower rubber stop on shock absorber
CODE:
1314-150
OEM:
113 412 305
MODEL:
1302/03, T3 05/79-08/92 (1)
Dustcap for Mc Pherson
CODE:
1385
OEM:
MODEL:
1302/03
Suspension springs, 4-5 cm lowered, with TüVas pair
CODE:
1386-000
OEM:
MODEL:
1302/03 -07/73
Suspension strut, used
CODE:
1386-010
OEM:
MODEL:
1302/03 -07/73
Strut Super Beetle right (used)
CODE:
1386-190
OEM:
MODEL:
1302/03
Suspension spring, used, each
CODE:
1386-200
OEM:
113 411 211
MODEL:
1302/03
Dampring for suspension spring Super Beetle, each
CODE:
1388-1
OEM:
133 412 329B
MODEL:
1303 08/73-
Topbearing
CODE:
1388-200
OEM:
133 412 359
MODEL:
Beetle 1303 08/73-
Cover top bearing
CODE:
1389
OEM:
113 412 329B
MODEL:
1302/03 -07/73
Topbearing
CODE:
1391-3
OEM:
MODEL:
1302/03
Strut brace

3.5 Shocks with spring

CODE:
1375
OEM:
MODEL:
​Beetle front 12/52-07/65
Beetle achter
Karmann Ghia front 12/52-07/65
Karmann Ghia achter
Bus -07/67 front/achter
Bus 08/67-07/79 front
Type 3 front/achter
Type 181 achter
Coil over shocks - front/rear
CODE:
1376
OEM:
MODEL:
Beetle 08/65-
Karmann Ghia 08/65-
Coil over shocks - front
CODE:
1385-300
OEM:
MODEL:
Bus 05/79-07/92
Lowered springs 60/45mm (4pcs)
