P. 30

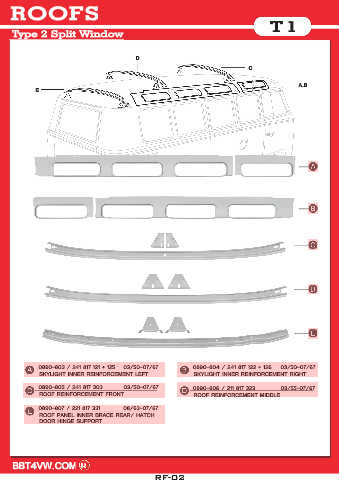

ROOFS
T1
cType 2 Split Window
D
C
A.B
E
0890-803 / 241 817 121 + 125 03/50-07/67 0890-804 / 241 817 122 + 126 03/50-07/67
SKYLIGHT INNER REINFORCEMENT LEFT SKYLIGHT INNER REINFORCEMENT RIGHT
0890-805 / 241 817 303 03/50-07/67 0890-806 / 211 817 323 03/55-07/67
ROOF REINFORCEMENT FRONT ROOF REINFORCEMENT MIDDLE
0890-807 / 221 817 331 08/63-07/67
ROOF PANEL INNER BRACE REAR/ HATCH
DOOR HINGE SUPPORT
BBT4VW.COM
RF-02
