Page 42 - SilverWeldTrough
P. 42

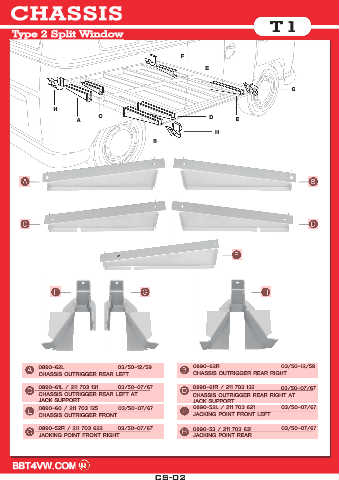

CHASSIS

                                                                                               T1
 cType 2 Split Window




                                                                F
                                                                         E



                                                                                                       G


                   H
                                   C                                      D
                            A                                                      E
                                                                            H
                                                      B
















































              0890-62L                    03/50-12/59               0890-62R                       03/50-12/59
              CHASSIS OUTRIGGER REAR LEFT                            CHASSIS OUTRIGGER REAR RIGHT
              0890-61L / 211 703 131      03/50-07/67               0890-61R / 211 703 132         03/50-07/67
              CHASSIS OUTRIGGER REAR LEFT AT                         CHASSIS OUTRIGGER REAR RIGHT AT
              JACK SUPPORT                                           JACK SUPPORT
              0890-60 / 211 703 125       03/50-07/67               0890-52L / 211 703 621         03/50-07/67
              CHASSIS OUTRIGGER FRONT                                JACKING POINT FRONT LEFT


              0890-52R / 211 703 622      03/50-07/67               0890-53 / 211 703 631          03/50-07/67
              JACKING POINT FRONT RIGHT                              JACKING POINT REAR
