P. 44

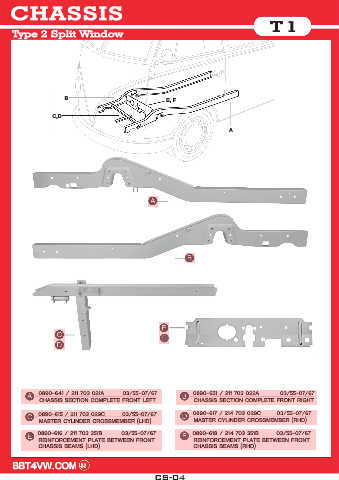

CHASSIS

                                                                                               T1
 cType 2 Split Window













                        B
                                                           E, F

                   C,D

                                                                                 A
























































              0890-641 / 211 703 021A       03/55-07/67             0890-651 / 211 703 022A        03/55-07/67
               CHASSIS SECTION COMPLETE FRONT LEFT                   CHASSIS SECTION COMPLETE FRONT RIGHT

              0890-615 / 211 703 029C       03/55-07/67             0890-617 / 214 703 029C       03/55-07/67
              MASTER CYLINDER CROSSMEMBER (LHD)                      MASTER CYLINDER CROSSMEMBER (RHD)
              0890-616 / 211 703 351B      03/55-07/67              0890-618 / 214 703 351B       03/55-07/67
              REINFORCEMENT PLATE BETWEEN FRONT                      REINFORCEMENT PLATE BETWEEN FRONT
              CHASSIS BEAMS (LHD)                                    CHASSIS BEAMS (RHD)


     BBT4VW.COM

                                                       CS-04
